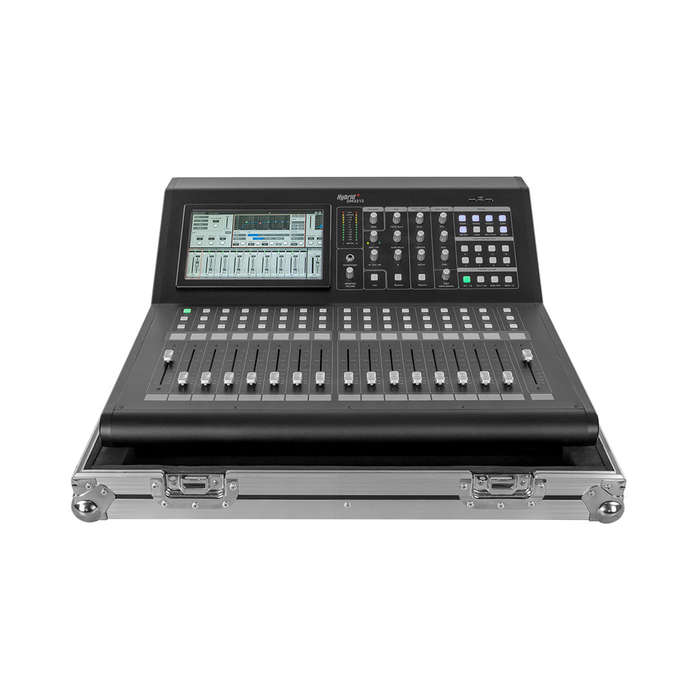

Hybrid+ DM3212

The Hybrid+ DM3212 is a 32-channel digital mixer which has been designed to provide effortless user interface navigation and comprehension, even for live engineers who are not experts with hands-on digital mixer platforms. Specifically, the large 10" touch screen provides clear visibility of information and controls. Through the carefully laid-out onboard controls, quick edits to a live mix (a crucial functionality in the dynamic environment of a live event) are easily achieved through the multi-layer motorised faders and dual-action rotary encoders.

The routing matrix is simple to find and manipulate, and the comprehensive input and output LCD bar displays are easily accessible for distortion-free mixing throughout all stages of the mixer. The DM3212 comes with the added benefit of individual 1.25" LCD screens for each fader, allowing for specific monitoring of each channel.

Inputs 1—32

• 100mm motorised faders (2-layer)
• 1.25" TFT screen displaying input number, editable input name, 48V, gate, feedback eliminator, EQ, compressor, link to output/s, effects 1&2, post fader LCD display.
• Mute
• Gain control
• 48V phantom
• Signal invert
• Feedback eliminator
• Input gate
• HPF / LPF / 4 X EQ's (PEQ, low shelf, high shelf)
• Compressor
• In / Out / FX matrix
• XLR/ 6.5mm Jack combo

Outputs (Bus 1—10)

• 100mm Motorised faders
• Mute
• 1.25" TFT screen displaying bus number, editable bus name, EQ, compressor, post fader LCD display.
• Signal invert
• HPF / LPF / 8 X EQ's (PEQ, low shelf, high shelf)
• Compressor
• Delay (1.8Sec)
• XLR male

Effects (1 & 2)

• 100mm motorised faders
• 1.25" TFT screen displaying effect number, editable effect name, EQ, link to output/s, post fader LCD display.
• Mute
• Pre-delay (0-250Ms) / dry/wet (0-100) / reverb (0-8Sec) / echo L&R (0-500Ms) / delay (0-500ms) / repeat L&R (0-90)
• Bus send
• HPF / LPF / 4 X EQ's (PEQ, low shelf, high shelf)
• Save / recall library

Master Output

• Dedicated 100mm motorised fader
• 1.25" TFT screen displaying main L/R output, editable output name, EQ, compressor, post fader LCD display.
• Mute
• Signal invert
• HPF / LPF / 8 X EQ's (PEQ, low shelf, high shelf)
• Compressor
• Delay (1.8 Sec)
• XLR male

General

• 10" touch screen
• Complete input / output LCD display meter
• Output LED meter
• 100 scene save / recall
• USB stick play / record
• Record outputs (L & R) — XLR male
• Monitor outputs (L & R) — XLR male
• Input / output copy-paste
• Oscillator (sine, pink, white)
• Auto mix
• Ducker
• Group mute
• Input / output fader link
• Input stereo link
• Aux send 1&2
• 8 x editable key command
• 8 x DCA
• Wifi control with optional Wifi dongle
