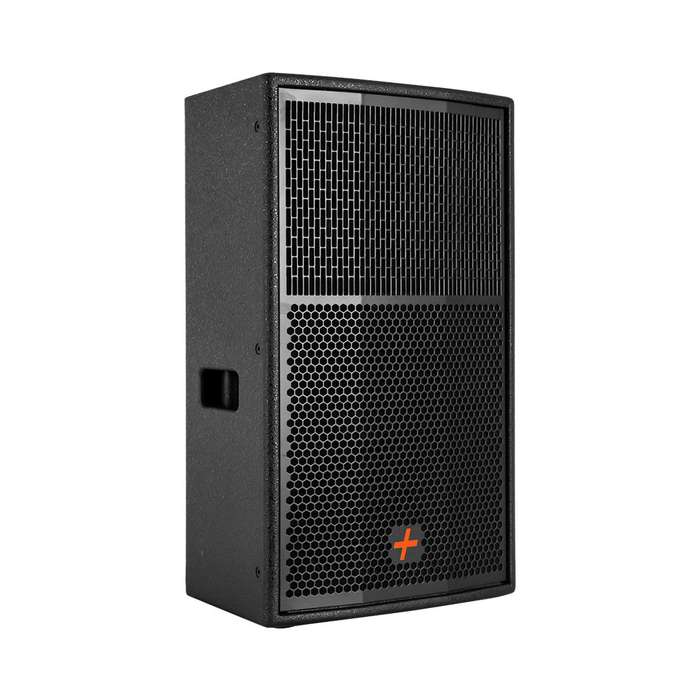

Hybrid+ HP12 MK2

Product Description

12 Passive two-way speaker

The Hybrid+ HP12 (High-power) is a passive 12, 2-way, birch-plywood enclosed multi-purpose speaker cabinet. It can be used as a stage monitor, a FOH full-range speaker for a small to mid-size audience, a fill to the main FOH for larger venues, and as a mid-top cabinet reinforced by sub-bass speakers. It features seven strategically placed M8 fly points for permanent installations and a dual angle 35mm pot for temporary or rental pole-mounting applications.
Strategically placed recessed metal cup handles allow for easy handling and mobility. Input and speaker loop-thru connections are made using the two NEUTRIK NL4MP panel mount connectors.

The HP12 is protected with a 3-coat, water resistant, hardwearing, environmentally friendly UltraTex (USA) black textured paint. Together with the contemporary, two-tone metal grille, it is beautifully finished and adds eye-catching aesthetics to any venue.

Multi-purpose 12 full range
RMS Power (AES standard): 450W
Nominal impedance: 8 Ohm
Average sensitivity: 98dB /1W /1m
Maximum SPL (calculated): 124.5dB RMS / 130.5dB Peak
Frequency response: 55 — 22000Hz
Nominal directivity: 80° (H) x 50° (V) standard, rotatable horn

LF: CELTO Acoustique 12MBK450-8
Woofer chassis: Die-cast aluminum
Woofer voice coil diameter: 3 / 75mm
HF: CELTO Acoustique FCDX440
HF RMS power (AES standard): 50W above 1600Hz
HF exit: 1 / 25mm
HF voice coil diameter: 1.7 / 44mm
HF diaphragm material: C300 Polymer

Integrated crossover
LF: 1800Hz, 12dB/oct
HF: 1800Hz, 18dB/oct

Cabinet material: Birch plywood
Cabinet finish: UltraTex (USA) texture black coating — 3 coat
Grille: Two-tone, 1.2mm, curved, black powder coated

Floor monitor application: yes
Flying hardware: 7 x M8 points
Mounting hardware: Dual angle pot (0° & 10°)
Connectors: 2 x NEUTRIK NL4MP
Cabinet size (HxWxD): 620 x 356 x 370mm
Cabinet weight: 21Kg
