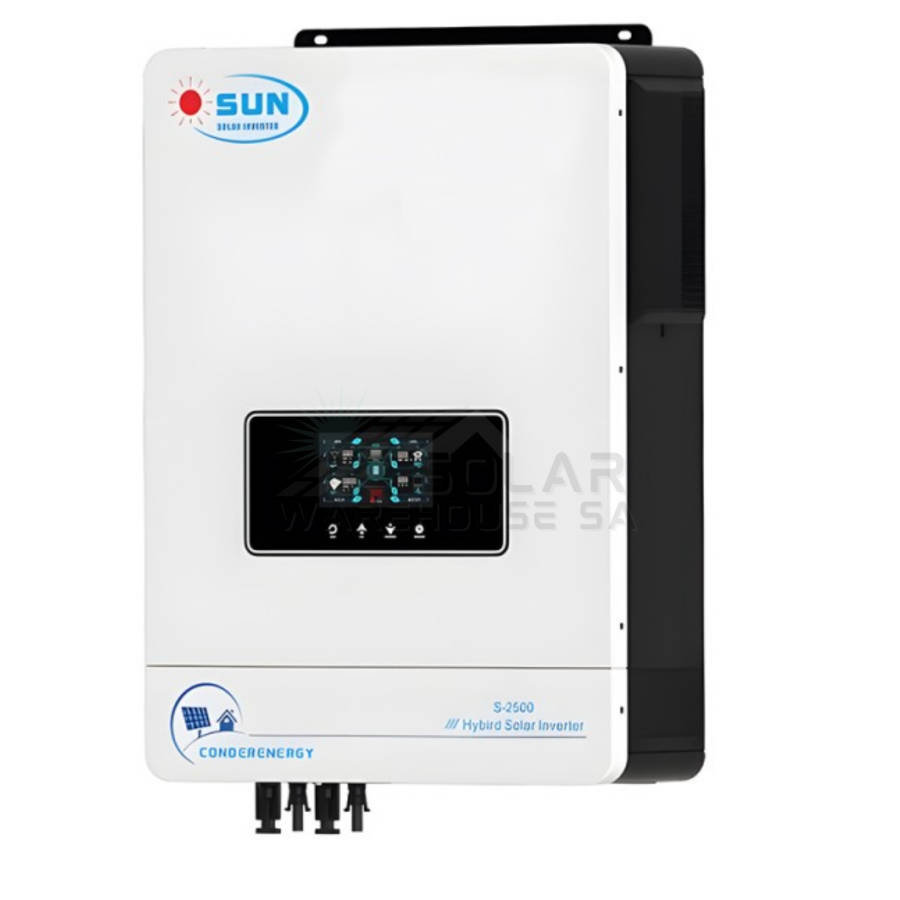

Hybrid Inverter 10.2KVA 10200 Watt MPPT Sun Solar S-2500 48V

Hybrid Inverter 10.2KVA 10200 Watt MPPT Vito SH10.2K48

Specifications:

• Pure sine wave solar inverter (on/off Grid)
• Output Power factor 1.0
• WIFI & GPRS available for IOS and Android
• The inverter can run without a battery
• One-key restoration to factory Settings
• Built-in Lithium battery automatic activation
• Built-in 160A MPPT solar charger (for 8.2kw, 10.2kw), 140A (for 7.2kw)
• High PV input voltage range (90~500VDC)
• Built-in anti-dust kit for harsh environment
• Smart battery charge design to optimize battery life
• Parallel connections are not supported

Features

Pure sine wave solar inverter (on/off Grid)
Output Power factor 1.0
WIFI & GPRS available for IOS and Android
The inverter can run without a battery
One-key restoration to factory Settings
Built-in Lithium battery automatic activation
Built-in 160A MPPT solar charger (for 8.2kw, 10.2kw), 140A (for 7.2kw)
High PV input voltage range (90~500VDC)
Built-in anti-dust kit for harsh environment
Smart battery charge design to optimize battery life
Dual output
Dual PV input
Touch button
On Off-Grid Work Mode

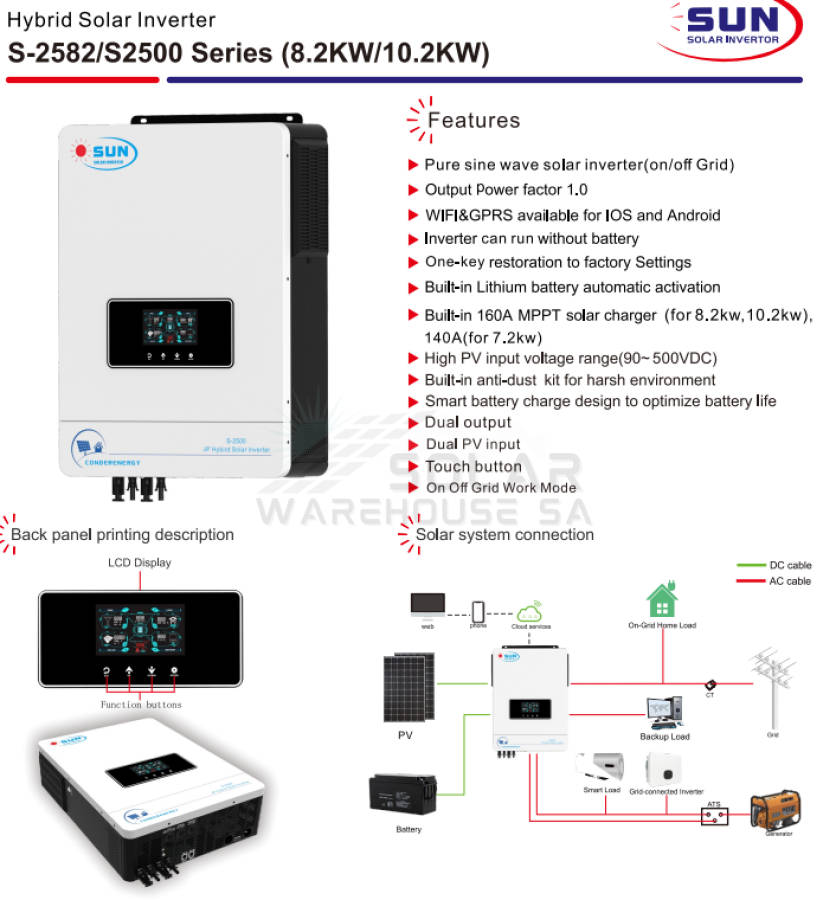

Solar system connection
DC cable
Function buttons

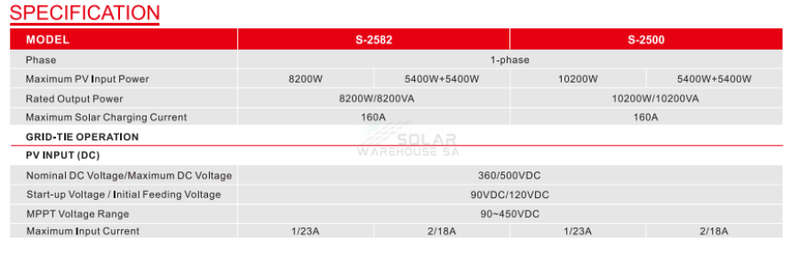

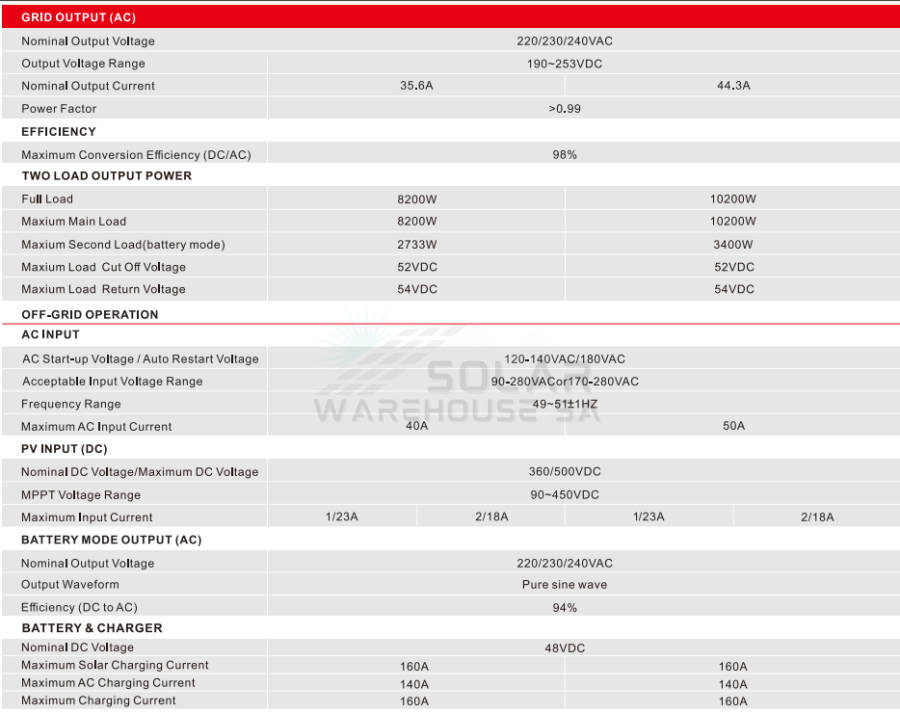

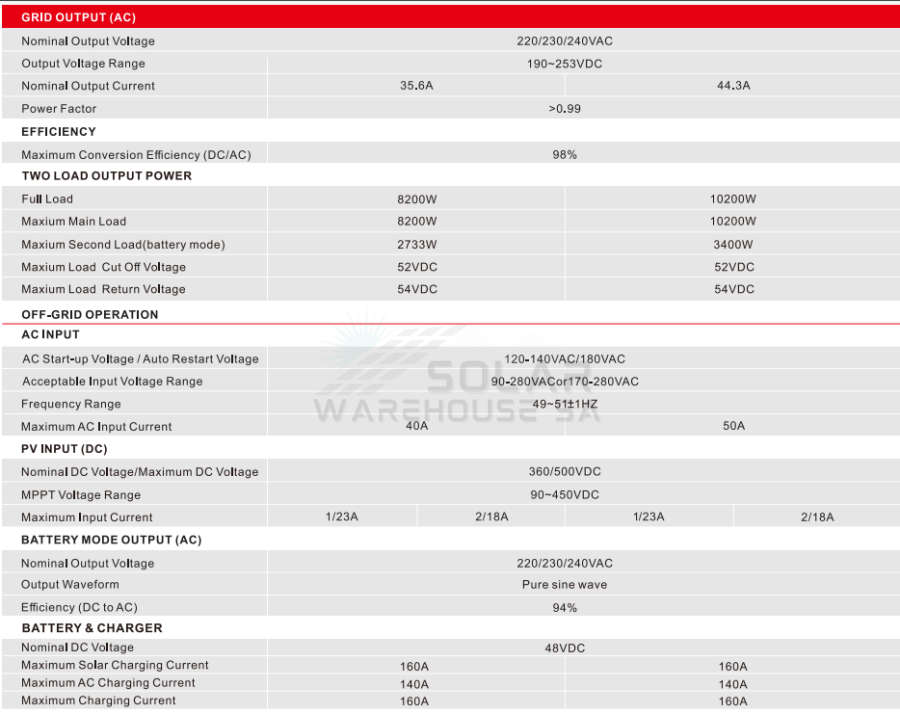

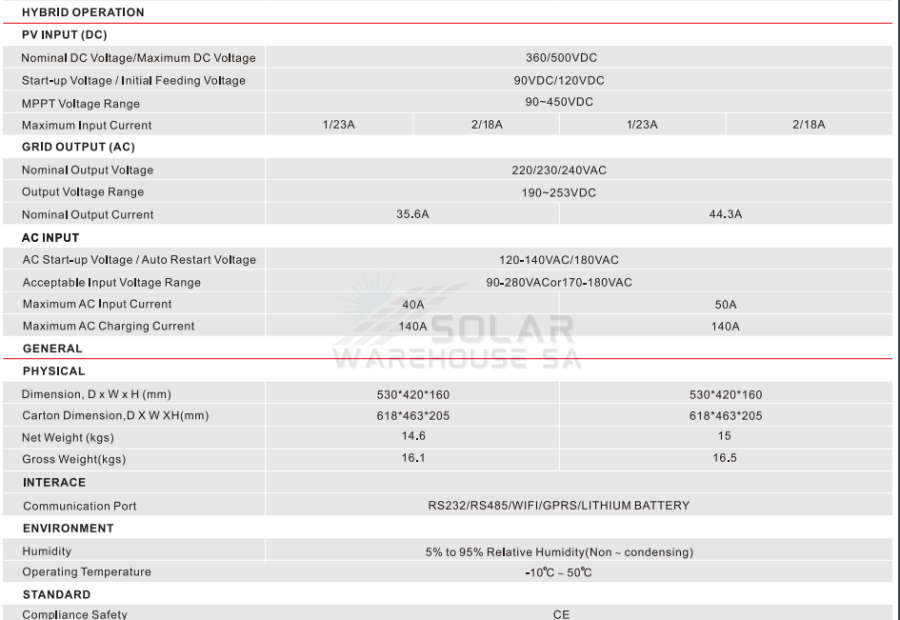

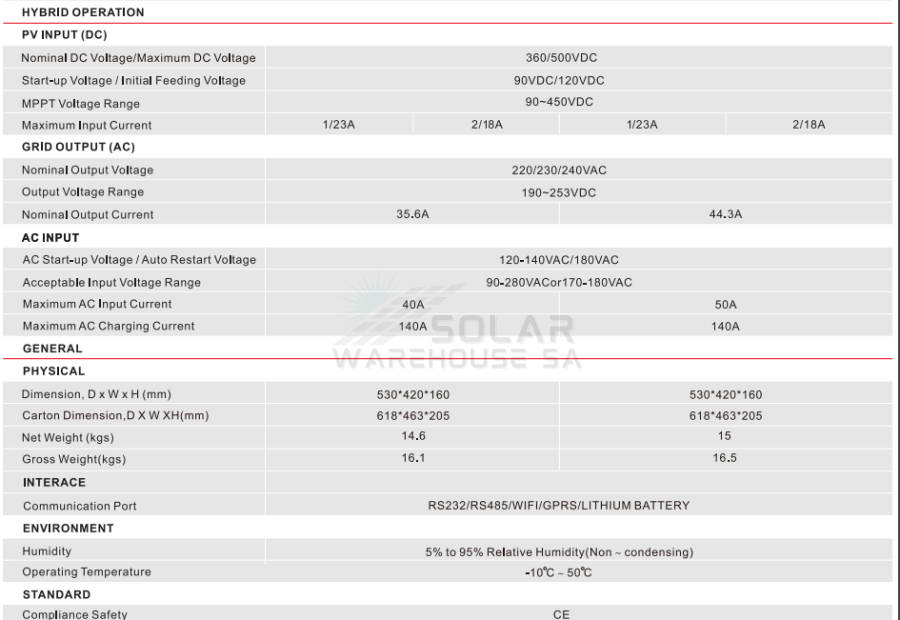

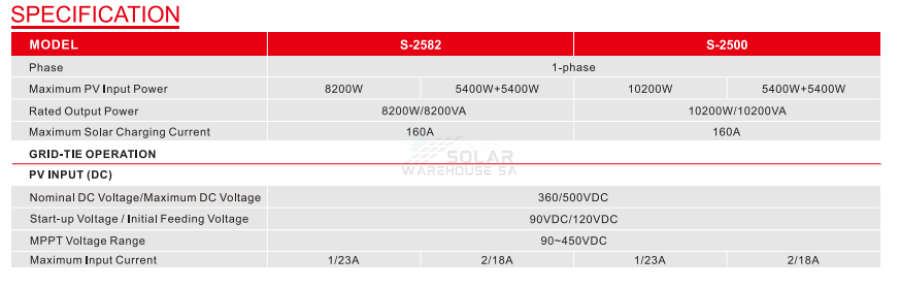

Specifications

Model: S-2500
Phase: 1-phase
Maximum PV Input Power: 10200W
Rated Output Power: 5400W+5400W
Maximum Solar Charging Current: 10200W
GRID-TIE OPERATION: 10200W/10200VA

PV INPUT (DC)

Nominal DC Voltage/Maximum DC Voltage: 360/500VDC
Start-up Voltage / Initial Feeding Voltage: 90VDC/120VDC
MPPT Voltage Range: 90-450VDC
Maximum Input Current: 1/23A

On-Grid Home:

PV: 2/18A
Backup Battery: 2/18A

AC cable

Rated Output Power: 5400W+5400W
GRID-TIE OPERATION: 10200W/10200VA
Maximum Solar Charging Current: 160A
On-Grid Home: PV: 2/18A

• 1-Year Repair Warranty
• Warranties: All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at the void.
