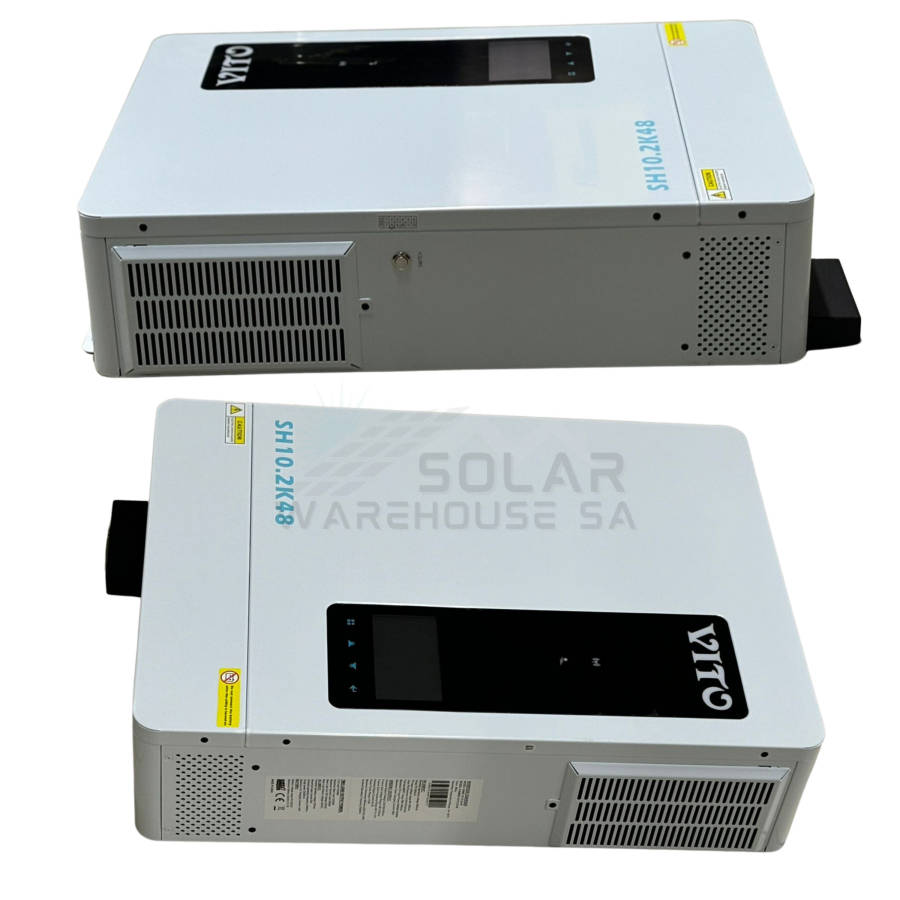

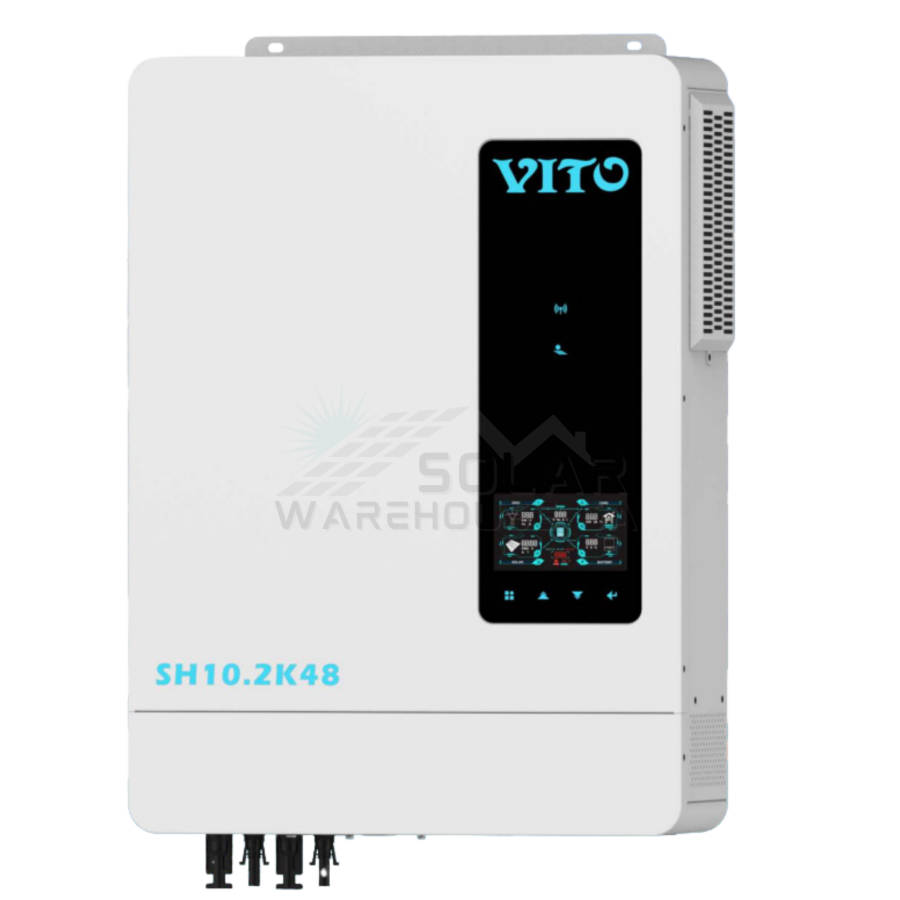

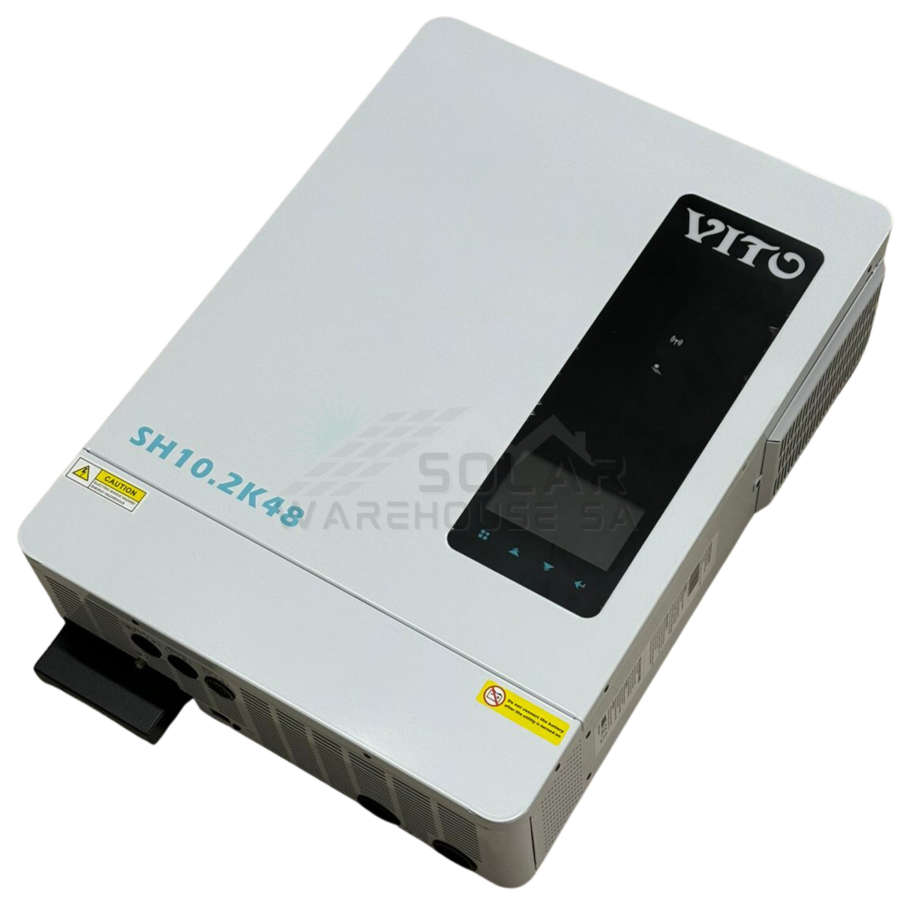

Hybrid Inverter 10.2KVA 10200 Watt MPPT Vito SH10.2K48

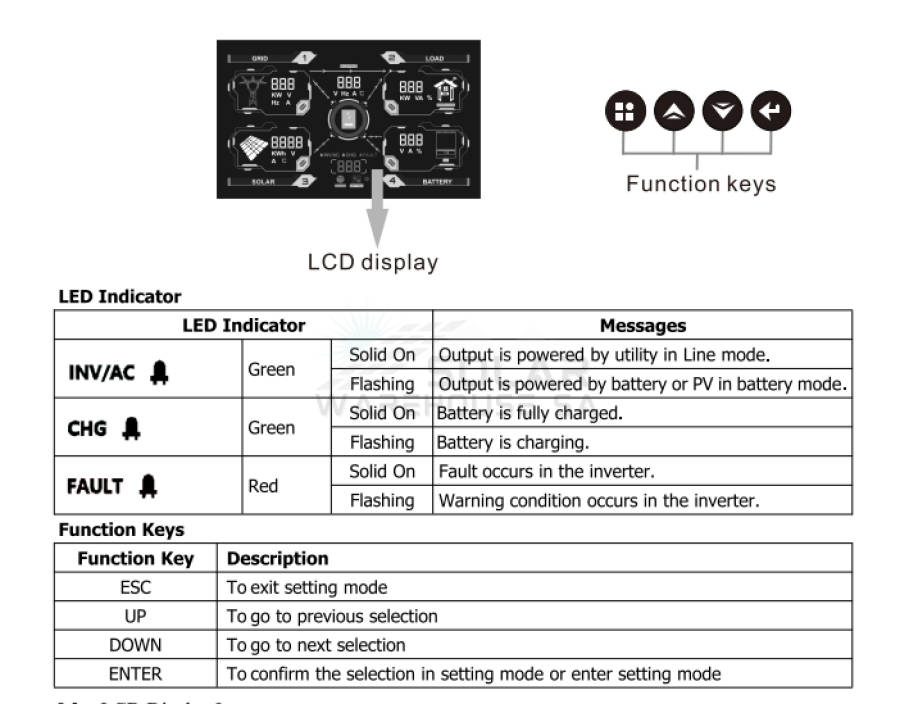

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
NOTE: FAN ALWAYS ON
Features
Pure sine wave inverter

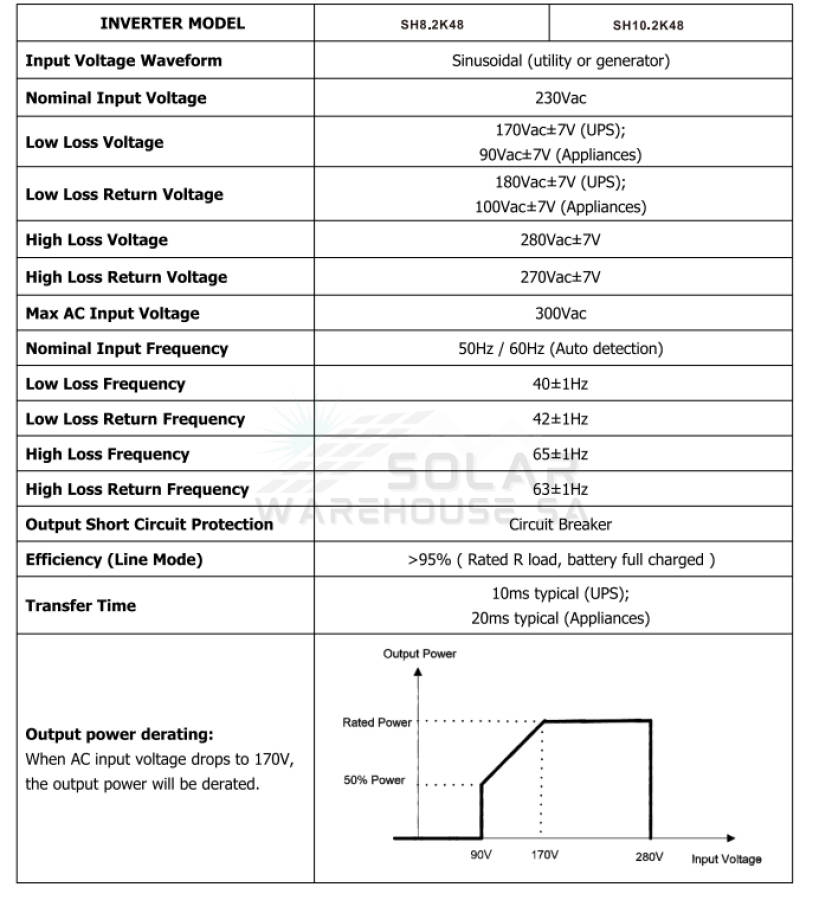

Configurable input voltage range for home appliances and personal computers via LCD setting
Configurable battery charging current based on applications via LCD setting

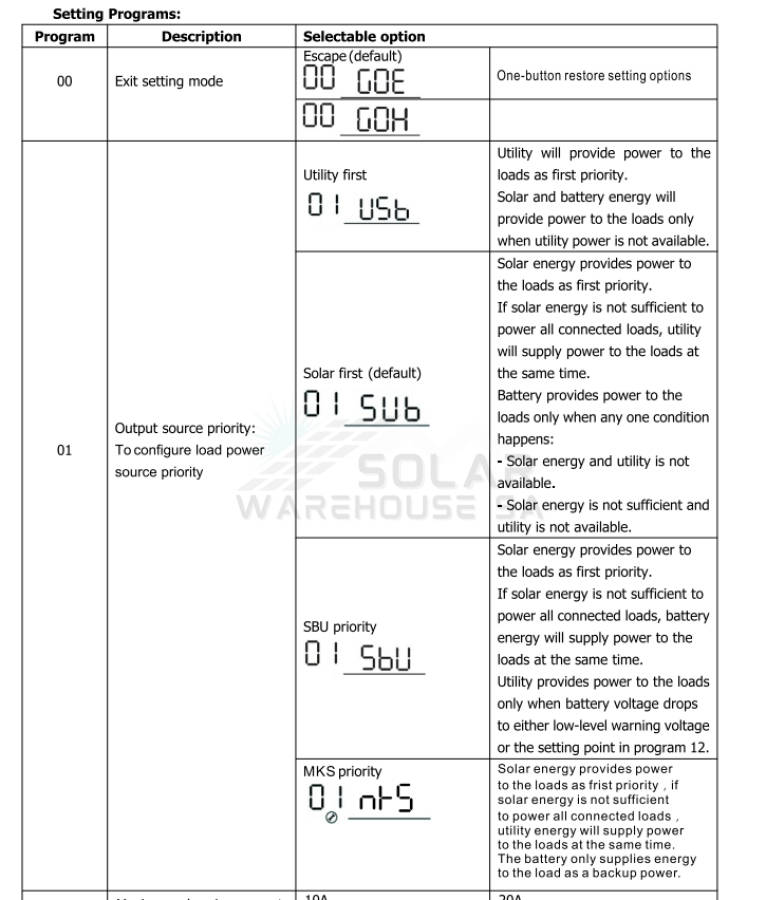

Configurable AC/Solar Charger priority via LCD setting
Compatible to mains voltage or generator power
Auto restart while AC is recovering
Overload/ Over temperature/ short circuit protection
Smart battery charger design for optimized battery performance
Cold start function
WIFI/GPRS (Optional)
Can connect to lithium battery
3.2 Basic System Architecture
The following illustration shows basic application for this inverter/charger. It also includes following devices to have a complete running system:
Generator or Utility.
PV modules

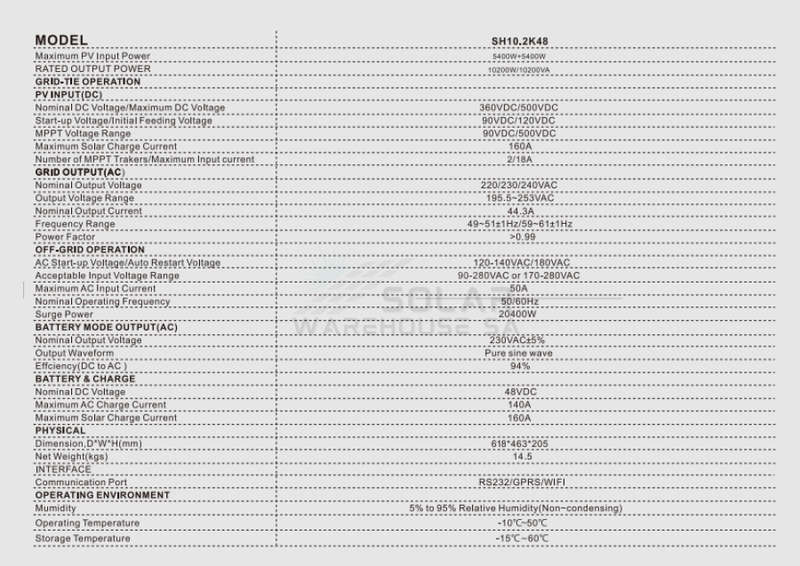

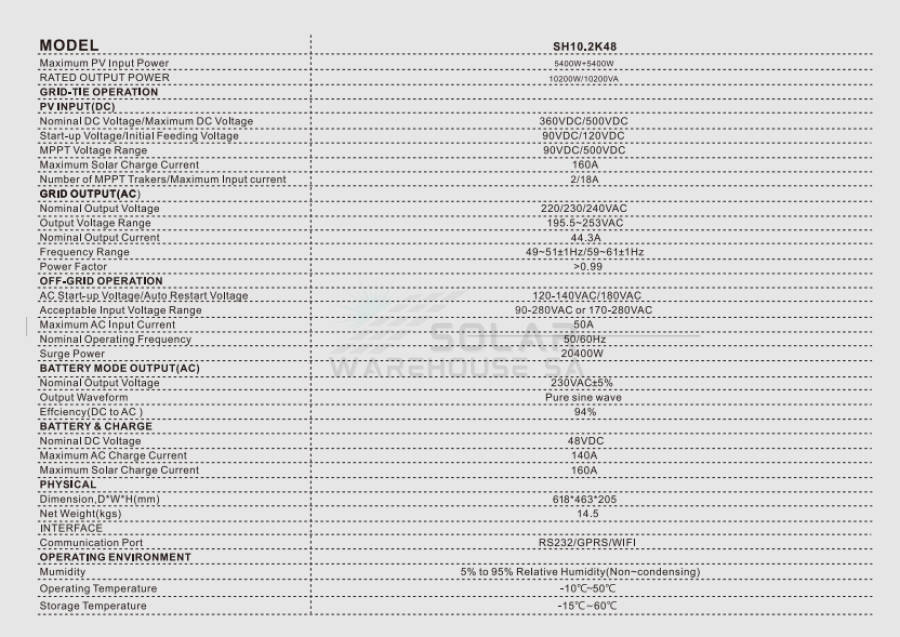

PV INPUT:
Max. PV Array Open Circuit Voltage 500Vdc
PV Array MPPT Voltage Range 90Vdc~450Vdc

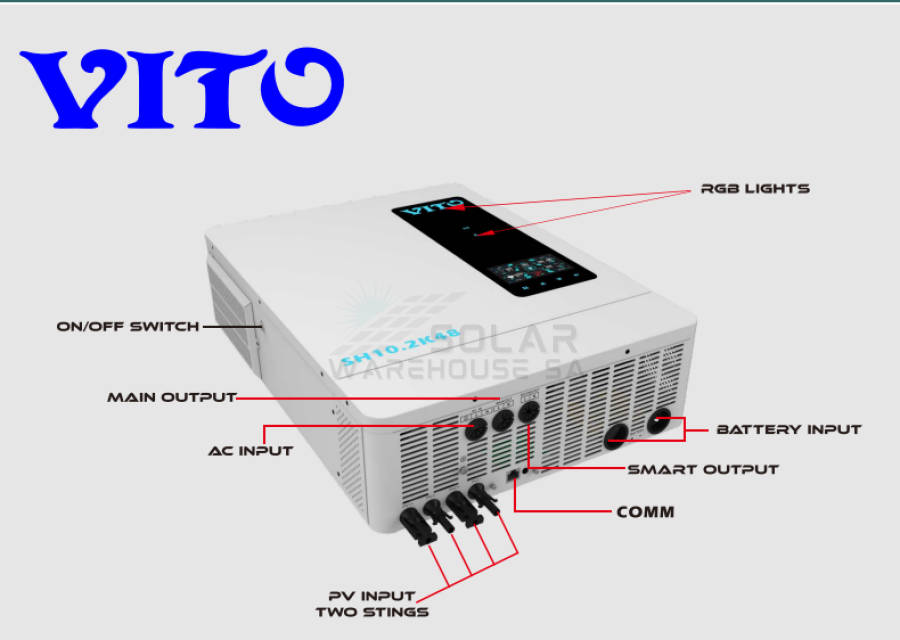

RGB Light
Battery Mode: Red Light
Utility Mode: Blue Light
PV Mode: Purple Light
GRID/AC OUTPUT:
Nominal Output Voltage 220/230/240Vac Feed-in Grid Voltage Range 195-253Vac Feed-in Gnd Frequency Range 49-511Hz Nominal Output Current: 15 7A Power Factor Range >0.99
Maximum Conversion Efficiency (DC/AC).97% Nominal Operating Frequency 50/60Hz

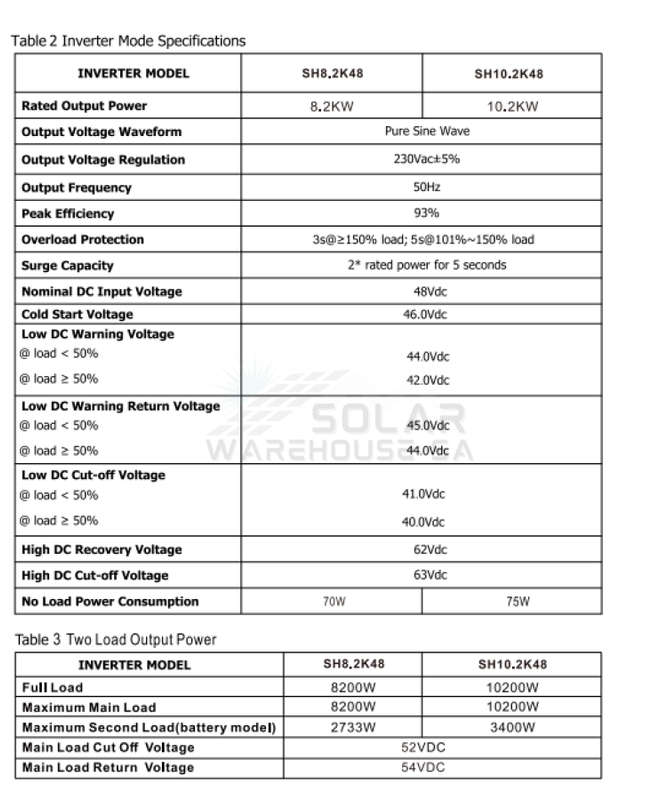

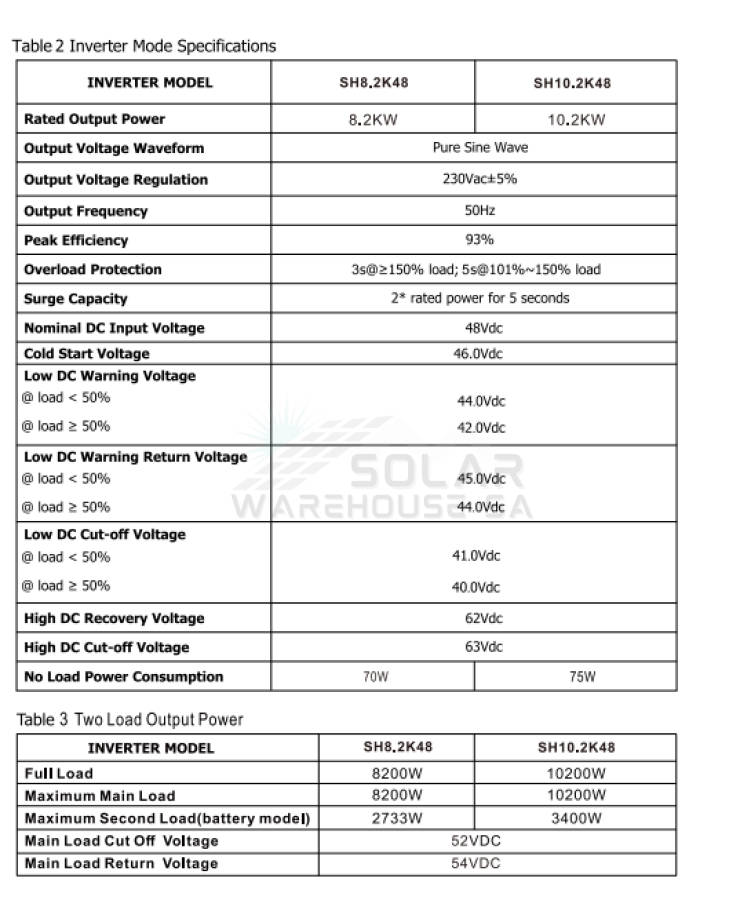

TWO LOAD OUTPUT POWER:
Full Load 10200W
Maximum Main Load 10200W
Maximum Second Load 3400W
Size:
618 x 463 x 205
16.9kg
What's in the box
1 x Inverter
1 x User Manual
Add a Wifi Dongle:
https://solarwarehousesa.com/products/vito-hybrid-inverter-wifi-dongle?_pos=3&_sid=0ab01aaa5&_ss=r
- 2-Years Repair Warranty
- Warranties: All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at the void.
