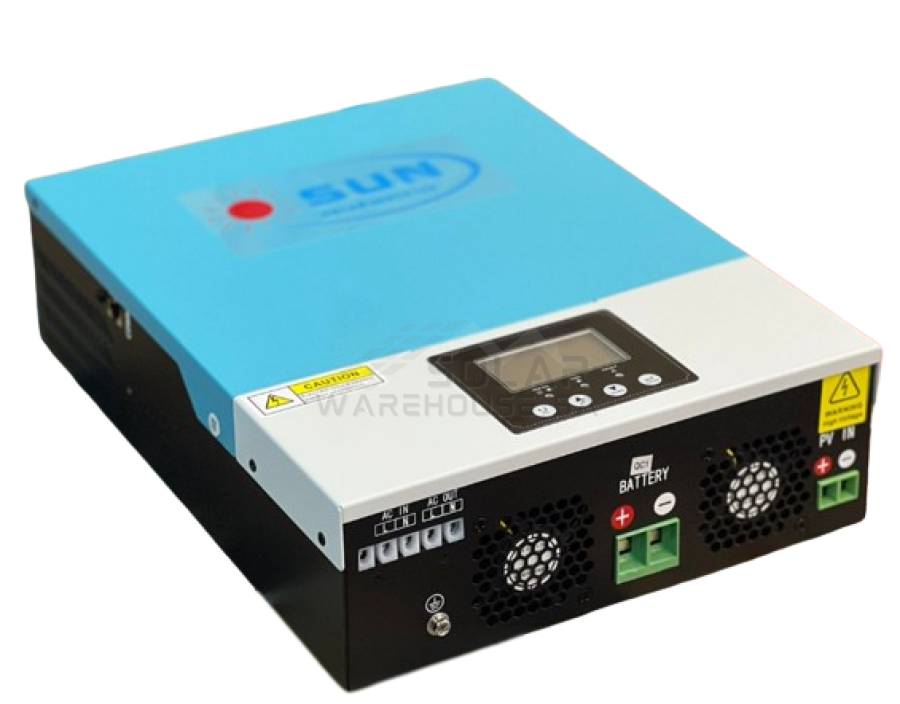

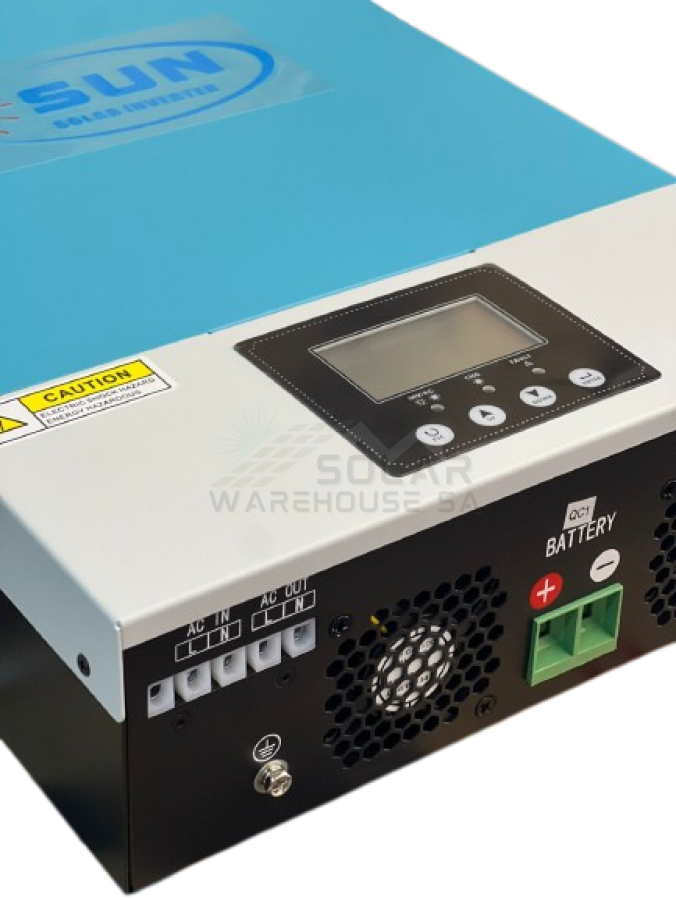

Hybrid Inverter 2 KVA 1600 Watt 12V- Sun Solar
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Features
Pure sine wave inverter
Configurable input voltage range for home appliances and personal computers via LCD setting
Configurable battery charging current based on applications via LCD setting
Configurable AC/Solar Charger priority via LCD setting
Compatible to mains voltage or generator power
Auto restart while AC is recovering
Overload/ Over temperature/ short circuit protection
Smart battery charger design for optimized battery performance
Cold start function
WIFI/GPRS (Optional)
Can connect to lithium battery
3.2 Basic System Architecture
The following illustration shows basic application for this inverter/charger. It also includes following devices to have a complete running system:
Generator or Utility.
PV modules
- 12V
- 2000VA
- 1600W
- 230VAC
- Pure sine wave inverter
- Built-in solar charge controller
- MPPT
Compatible with mains voltage and can charge batteries.
- Auto restart while AC is recovering
- Overload and short circuit protection
- Smart battery charger design for optimized battery performance
- Cold start function
-Pure sine wave inverter
-Built-in solar charge controller
-MPPT
Dimensions : L 44cm X B 37cm X H 20cm
5kg

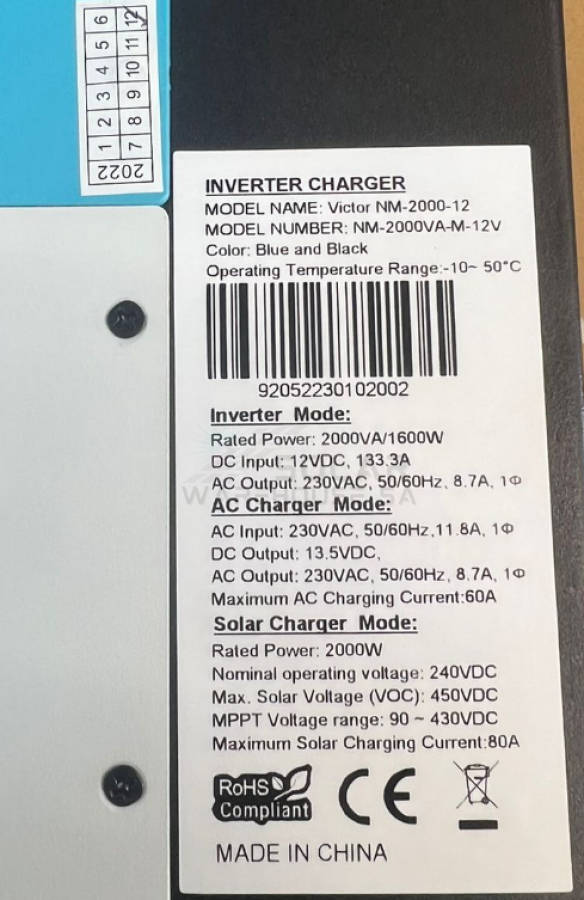

Solar charger mode:
Rated Power: 2000W
Nominal Operating Voltage: 240VDC
Max Solar Voltage(VOC): 450VDC
MPPT Voltage Range: 90-430VDC
Maximum Solar Charging Current:80A
What's in the box
1 x Inverter
1 x User Manual
- 1-Year Warranty
- Warranties: All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at the void.
