Features
Single Phase Operation: 1-phase operation for PV input.
High Efficiency: Up to 98% DC to AC conversion efficiency.
Pure Sine Wave Output: Ensures clean power output.
Wide MPPT Voltage Range: 60VDC to 450VDC.
Multiple Communication Ports: RS232, RS485, WIFI, GPRS, Lithium battery interface.

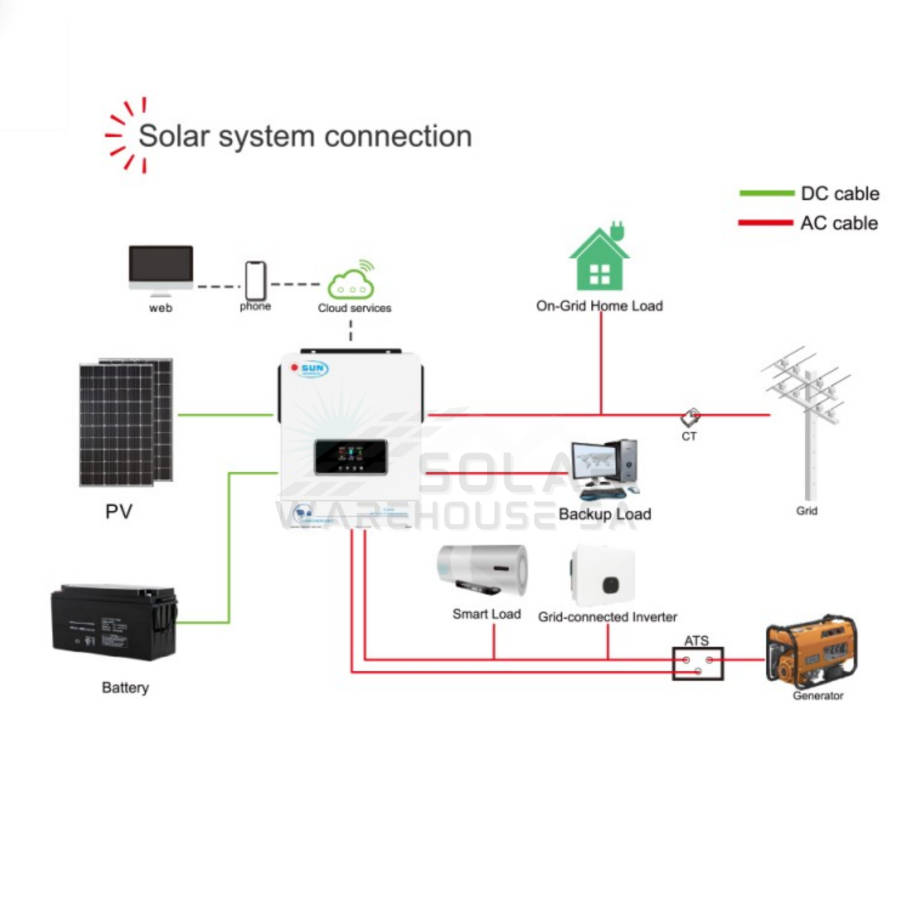

Supports Dual Load Output: Can handle two separate load outputs.
Auto Restart and Start-up Voltage: Automatically restarts and supports specified start-up voltages.
Specifications
PV Input (DC)
- Pure sine wave solar inverter (on/off Grid)
- Output power factor 1.0
- Wi-Fi & GPRS available for IOS & Android
- The inverter can run without a battery
- One-key restoration to factory settings
- Dual communication ports for battery communication & Wi-Fi communication
- Built-in 120A MPPT Solar Charge: Max 6200w
- High PV input voltage range (60-500VDC)
- Built-in anti-dust kit for harsh environments
- Smart battery charge design to optimize battery life
- Dual output
Maximum PV Input Power: 6200W
Nominal DC Voltage/Maximum DC Voltage: 360VDC/500VDC
Start-up Voltage / Initial Feeding Voltage: 60VDC/90VDC
MPPT Voltage Range: 60VDC to 450VDC
Maximum Input Current: 1/18A
Grid Output (AC)
Rated Output Power: 4200W/4200VA
Nominal Output Voltage: 220/230/240VAC
Output Voltage Range: 195.5V to 253VAC
Nominal Output Current: 18.2A
Power Factor: >0.99
Maximum Conversion Efficiency (DC/AC): 98%
Battery Mode Output (AC)
Nominal Output Voltage: 220/230/240VAC
Output Waveform: Pure sine wave
Efficiency (DC to AC): 94%
AC Input
AC Start-up Voltage / Auto Restart Voltage: 120-140VAC/180VAC
Acceptable Input Voltage Range: 90-280VAC or 170-280VAC
Maximum AC Input Current: 30A
Maximum AC Charging Current: 30A
Physical Dimensions
420mm x 350mm x 110mm
500mm x 415mm x 180mm
Net Weight: 8.0kg / 8.9kg
Gross Weight: 9.0kg / 10.0kg
Environment
Operating Temperature: -10°C to 50°C
Humidity: 5% to 95% Relative Humidity (Non-condensing)
Battery & Charger
Nominal DC Voltage: 24VDC
Maximum Solar Charging Current: 140A
Maximum AC Charging Current: 100A
Maximum Solar+AC Charging Current: 140A
Communication Port
Available Ports: RS232/RS485/WIFI/GPRS/LITHIUM BATTERY
Two-Load Output Power
Full Load: 1400W
Maximum Main Load: 4200W
Maximum Second Load (battery mode): 1400W
Maximum Load Cut Off Voltage: 26VDC
Maximum Load Return Voltage: 27VDC
Compliance and Standards
Safety: CE Standard Compliance
