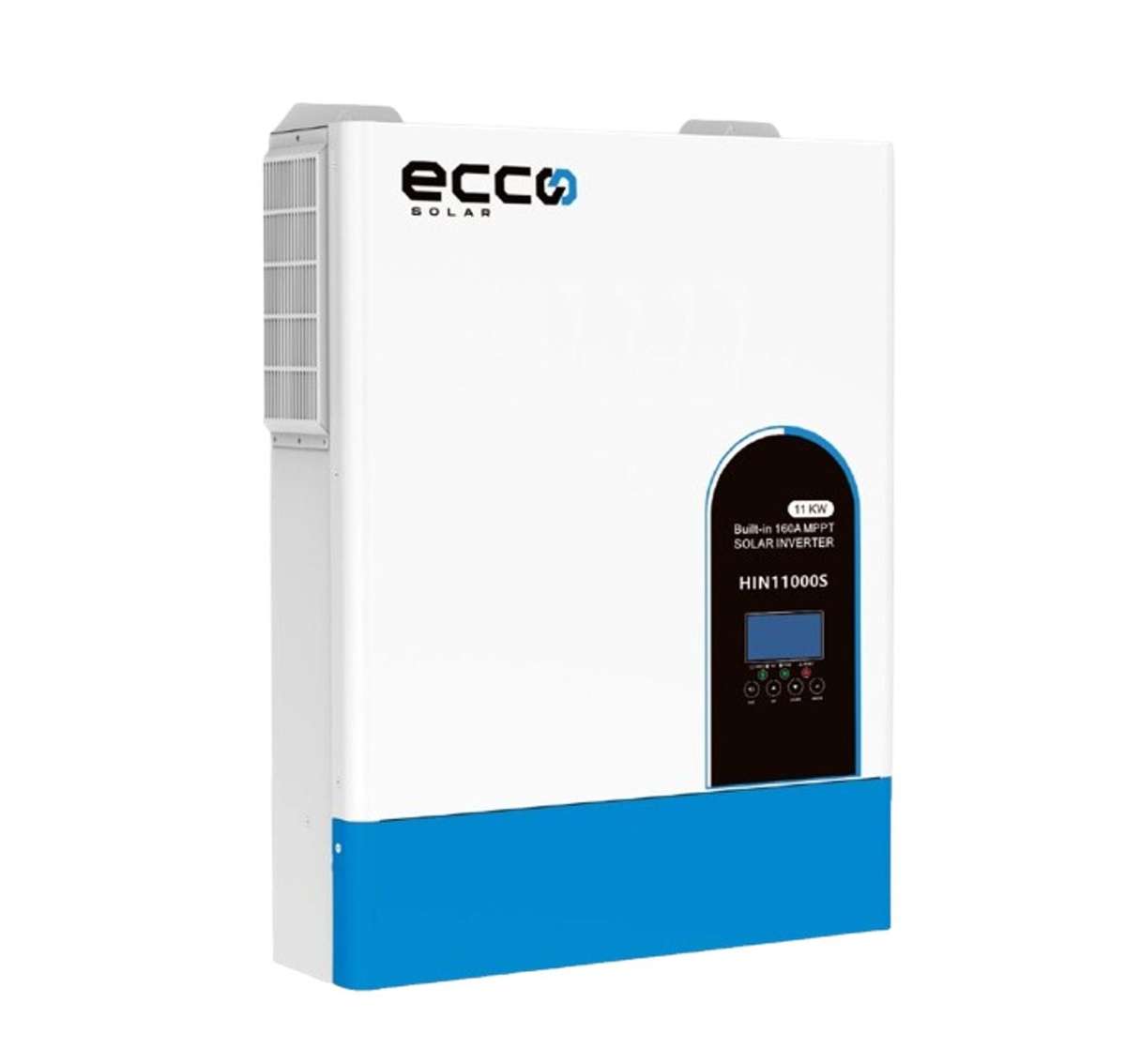

Hybrid Inverter 48v 11 Kva 11000w MPPT 160A Inverter Pure Sine Wave - Ecco
The main difference between PWM and MPPT charge control devices is that the MPPT devices are more efficient. MPPT charge control devices have 30 % more efficient in charge efficiency according to PWM type. Panel voltage and battery voltage should be matched in PWM systems.
Features:
Built-in 2 MPPT
Lithium battery activation function by PV or Utility Compatible work with LiFePO4 battery via RS485
Pure Sine Wave
Power factor 1.0
PV Input 500Vdc Max
Built-in MPPT 160A
Capable to work without battery
Detachable dust cover for harsh environment
Wifi remote monitoring optional
Support multiple output priority: SUB,SBU, SUF
EQ function to optimize battery performance and extend lifecycle
Specifications:
MODEL : HIN11000S
Capacity : 11KVA/11KW
Maximum PV Input Power : 11KW
Parallel Capability : NO
Lithium Battery Activation : YES (BY PV OR UTILITY)
Lithium Battery Communication : YES(RS485)
INPUT
Nominal Voltage : 230VAC
Acceptable Voltage Range : 170-280VAC(For Personal Computer) : 90-280VAC (For Home Appliances)
Frequency : 50/60 Hz (Auto Sensing)
OUTPUT
Nominal Voltage : 220/230/240VAC
Surge Power : 2200VA
Frequency : 50/60 Hz
Waveform : Pure Sine Wave
Transfer Time : 10ms(For Computers) 20ms(For Home Appliances)
Peak Efficiency : 94%
Overload Protection : 5s @ 140% Load
BATTERY
Battery Voltage : 48V
Maximum Discharge Current : 220A
Floating Charge Voltage : 54VDC
OverCharge Protection : 63VDC
Charging Method : CC/CV
SOLAR CHARGER & AC CHARGER
Solar Charger TYPE : MPPT
Max.PV Array Power : 5500W*2
Max. PV Array Open Circuit Voltage : 500VDC
PV Array MPPT Voltage Range : 60VDC-500VDC
Max. Solar Input Current : 18A*2
Max. Solar Charge Current : 160A
Max. AC Charge Current : 120A
Max. Charge Current : 160A
PHYSICAL
Dimensions, D x W x H(mm) 540 X 415X 122
Net Weight (Kgs) 15KG
Communication Interface RS232/RS485/DRY CONTACT
LCD
ENVIRONMENT
Operating Temperature Range -10C TO 55C
Storage temperature Humidity -15 - 60C
HUMIDITY 5% TO 95%
What's in the box
1 x ECCO 11KW Inverter
1 x Communication Cable
1 x User Guide
2x Mc4 Connectors
1x 200A Fuse
5-Year Repair Warranty
