Hybrid Inverter 48V 15KVA / 12KW MPPT Hybrid Inverter Fivestar

Hybrid Inverter

Hybrid Inverter 48V 15KVA / 12KW MPPT Hybrid Inverter Fivestar

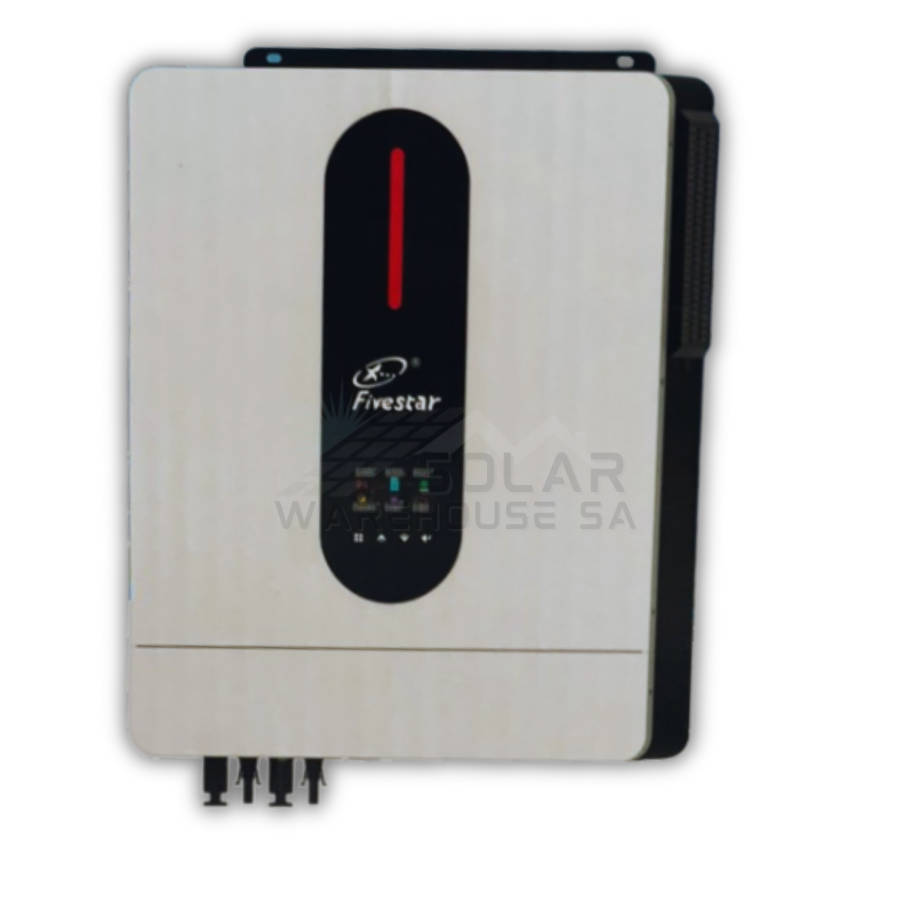

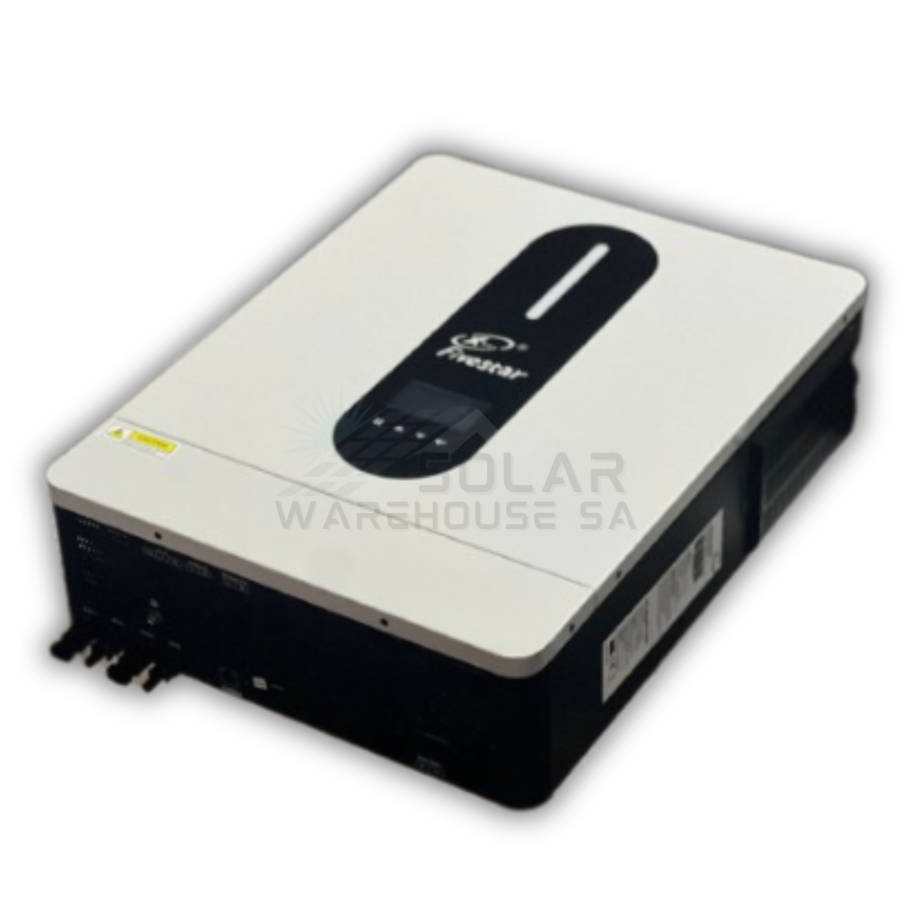

The Fivestar 15KVA 12KW MPPT Wifi Hybrid Dual PV Input 48V Inverter is an advanced inverter that provides efficient and reliable power conversion for residential and commercial applications. With a maximum output of 15KVA and 12KW, this inverter is capable of handling heavy loads and powering a variety of appliances.

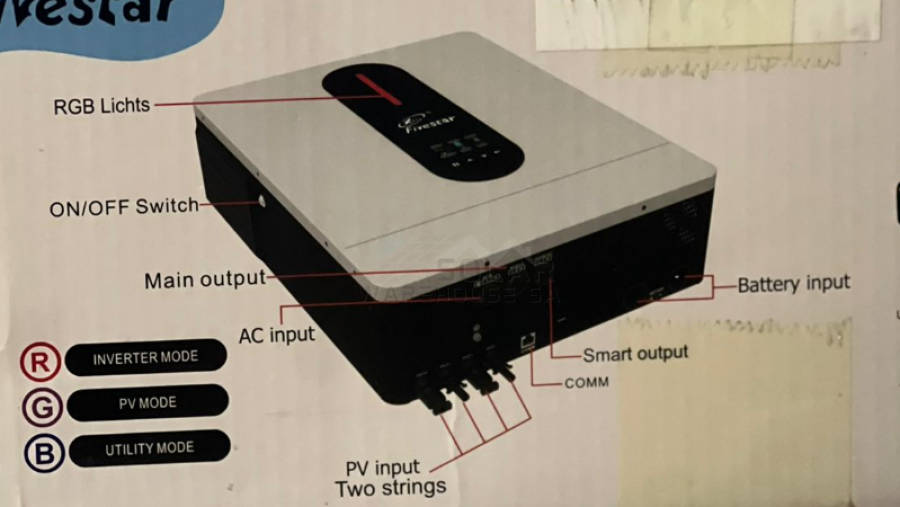

This inverter features an MPPT (Maximum Power Point Tracking) system that optimizes power production from your solar panels, even in low light conditions. With its dual PV input and 48V battery voltage, this inverter is compatible with a wide range of solar panels and battery systems, making it a versatile solution for your solar energy needs.

The Fivestar inverter also compatible with Wifi connectivity, allowing you to monitor and control your solar energy system remotely. You can easily access important data such as energy production, battery status, and system performance using your smartphone or computer. This feature makes it easy to optimize your system for maximum efficiency and cost savings.

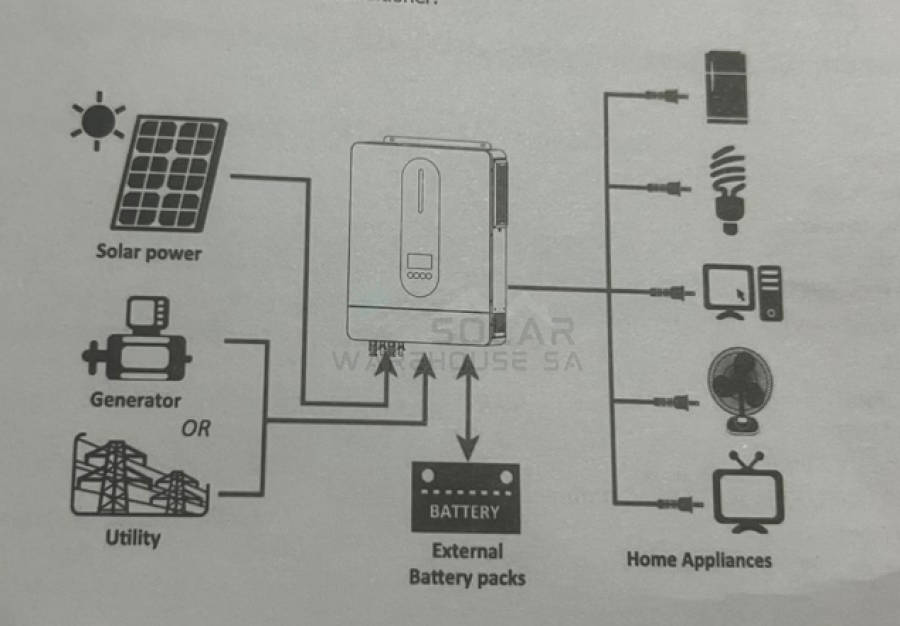

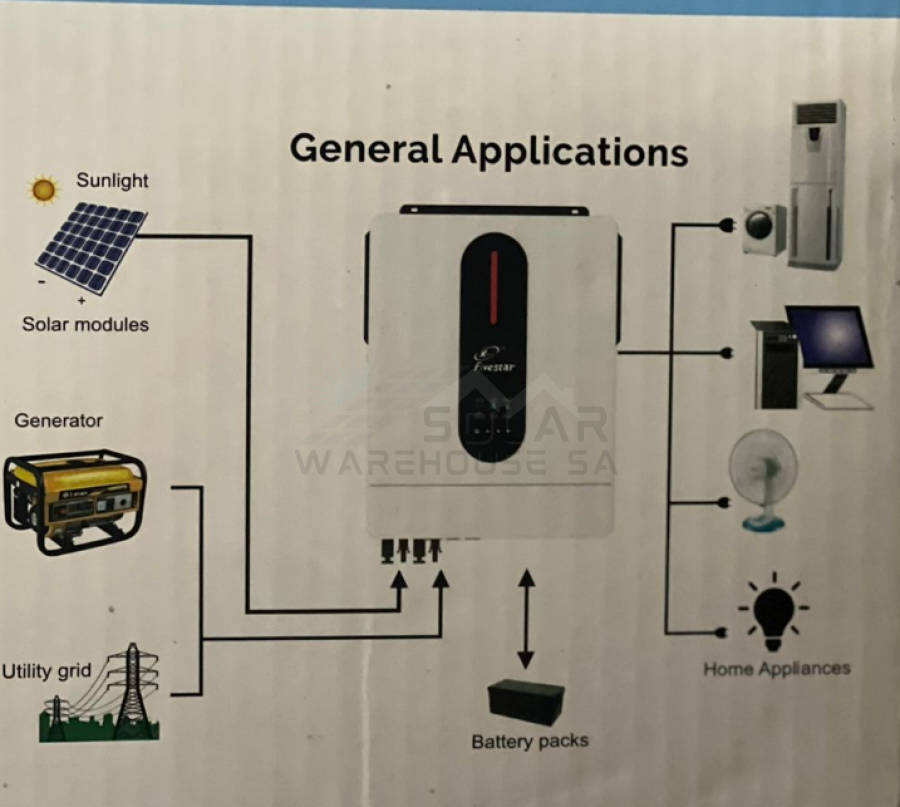

Furthermore, this inverter is a hybrid model, meaning it can work in both on-grid and off-grid systems. It can also operate in battery backup mode, providing power during blackouts or grid failures. With its high efficiency and reliability, the Fivestar inverter is an excellent investment for those looking to power their home or business with renewable energy.

Overall, the Fivestar 15KVA 12KW MPPT Wifi Hybrid Dual PV Input 48V Inverter is a top-of-the-line solution for your solar energy needs. It offers exceptional performance, versatility, and efficiency, making it an excellent choice for those looking to invest in a high-quality and reliable solar energy system.

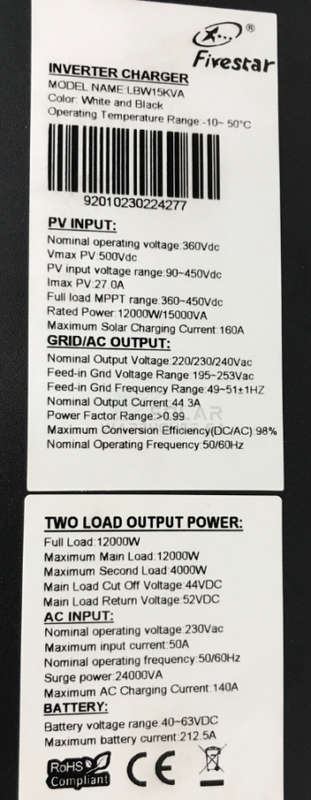

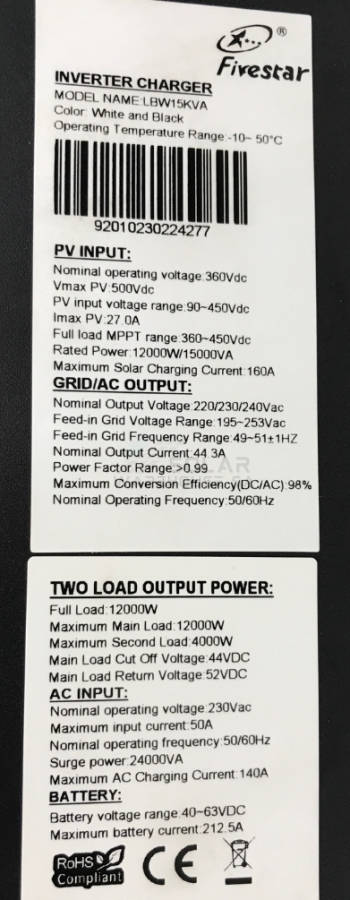

PV INPUT:
Nominal operating voltage: 360Vdc Vmax PV:500Vdc
PV input voltage range:90-450Vdc Imax PV:27.0A
Full load MPPT range 360-450Vdc Rated Power: 12000W/15000VA Maximum Solar Charging Current: 160A

GRID/AC OUTPUT:
Nominal Output Voltage 220/230/240Vac Feed-in Grid Voltage Range: 195-253Vac Feed-in Grid Frequency Range: 49-51+1HZ Nominal Output Current:44.3A
Power Factor Range: >0.99
Maximum Conversion Efficiency (DC/AC):98% Nominal Operating Frequency: 50/60Hz

TWO LOAD OUTPUT POWER:

Full Load: 12000W
Maximum Main Load: 12000W Maximum Second Load 4000W Main Load Cut Off Voltage:44VDC Main Load Return Voltage:52VDC

AC INPUT:
Nominal operating voltage 230Vac Maximum input current:50A
Nominal operating frequency: 50/60Hz Surge power 24000VA
Maximum AC Charging Current: 140A

BATTERY:
Battery voltage range: 40-63VDC Maximum battery current:212.5A

What's in the box
1 X Hybrid Inverter 48V 15KVA / 12KW MPPT Hybrid Inverter Fivestar

Wifi dongle not included

• 1-Year Warranty
• Warranties: All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at the void.
