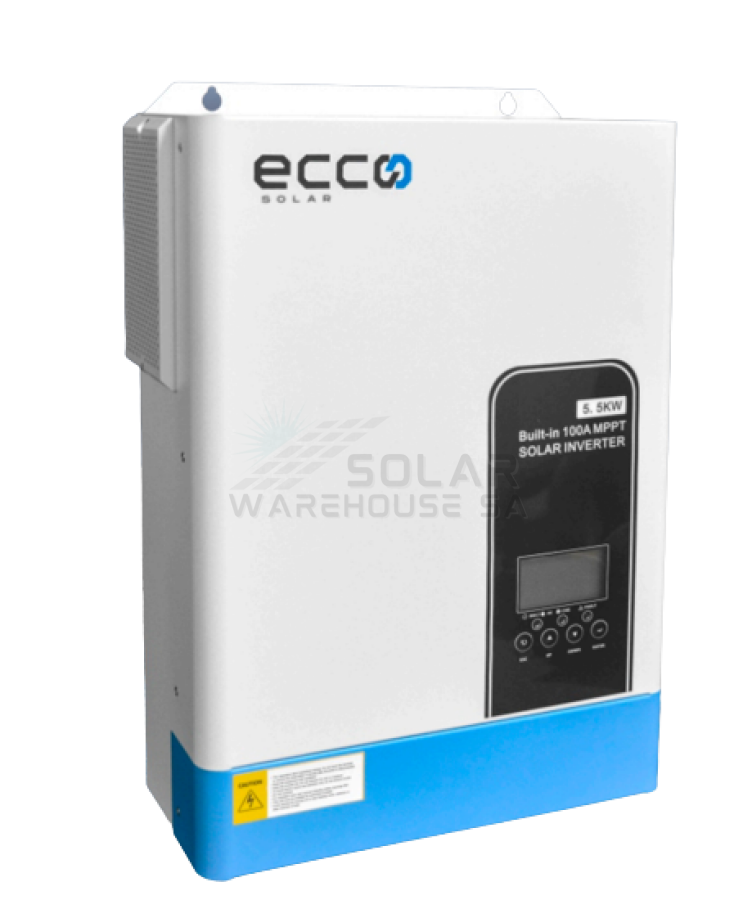

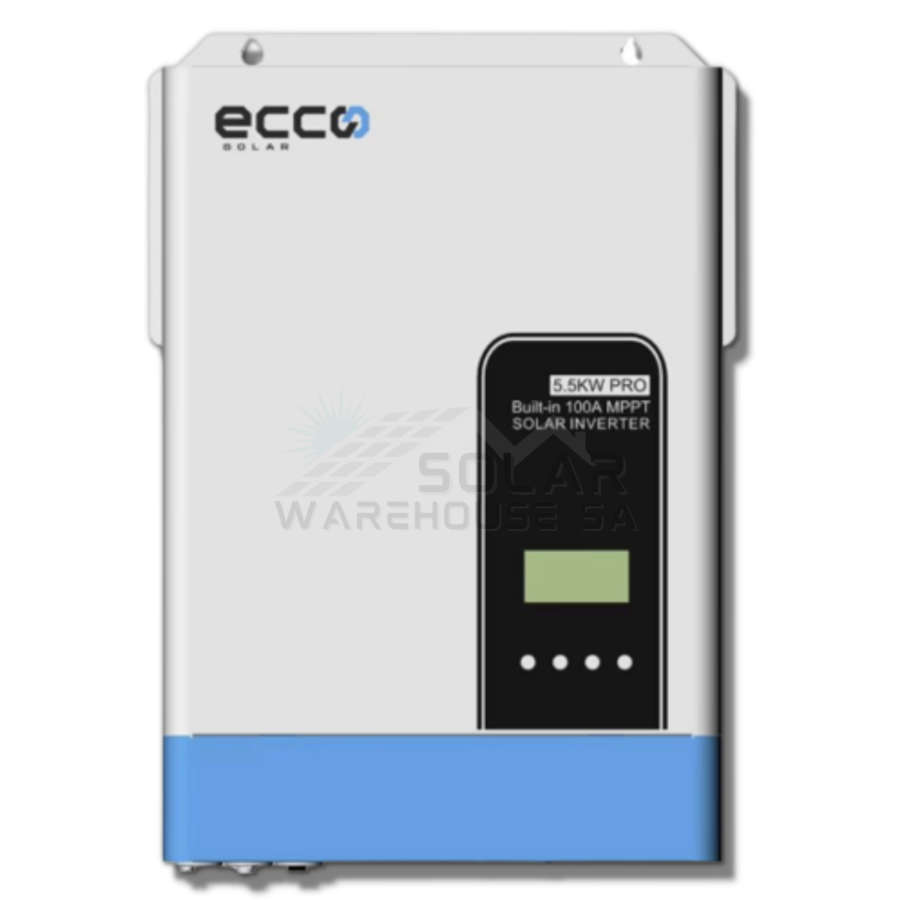

Hybrid Inverter 48v 5.5 Kva 5500w Mppt 100a Inverter Pure Sine Wave - Ecco
High Voltage VDC500V
5.5KVA/5500W 100A Pure Sine Wave Solar Inverter
Features
Pure sine wave
Power factor 1.0
PV input Voltage 120Vdc-500Vdc
Built-in MPPT 100A
Capable to work without battery
RS485 BMS Communication
Lithium battery activation
Detachable dust cover for harsh environment
WiFi remote monitoring optional
Support multiple output priority: UTL, SOL, SBU, SUB
EQ function to optimize battery performance and extend the lifecycle
Specifications:
Inverter Mode
- Rated Power: 5500VA / 5500W
- DC Input: 48VDC, 100A
- AC Output: 230VAC, 50/60Hz, 60A
AC Charger Mode
- AC Input: 230VAC, 50/60Hz, 60A
- DC Output: 54VDC
- Max. Charge Current(AC): 60A Default 30A
- Max. Charge Current(PV+AC): 100A
- AC Output: 230VAC, 50/60Hz, 23.9A
Solar Charge Mode
- Max. PV Array Power: 5500W
- Min. Solar Voltage: 120VDC
- MPPT VOLTAGE RANGE: 120VDC - 450VDC
- Max. Solar Voltage (VOC): 500VDC
- Max. MPPT Charge Current: 100A
- Max. Input Current: 18A
Size:
Dimensions ; 438 x 295 x 105
Weight: 9kg
It is recommended to use ECCO Batteries and Solar Panels for Quality Guaranteed Results.
Important Note: This product requires installation by a qualified PV installer, the PV installer must be able to issue a Certificate of Compliance. This is to ensure that the installation is safe and correct, as well as, within the scope of relevant regulations.

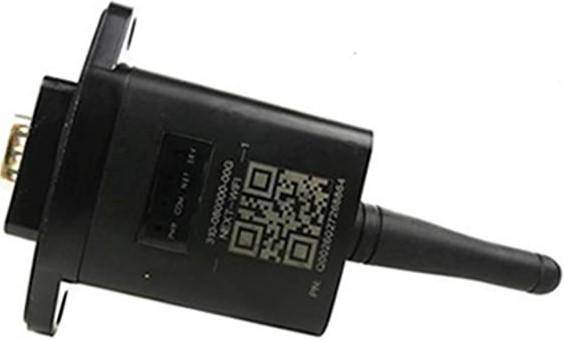

Add a wifi dongle:
https://solarwarehousesa.com/products/ecco-hybrid-inverter-wifi-dongle?_pos=1&_sid=71ec01ede&_ss=r
What's in the box
1 x ECCO 5.5KW Inverter
1 x Connecting Cables
1 x User Guide
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
