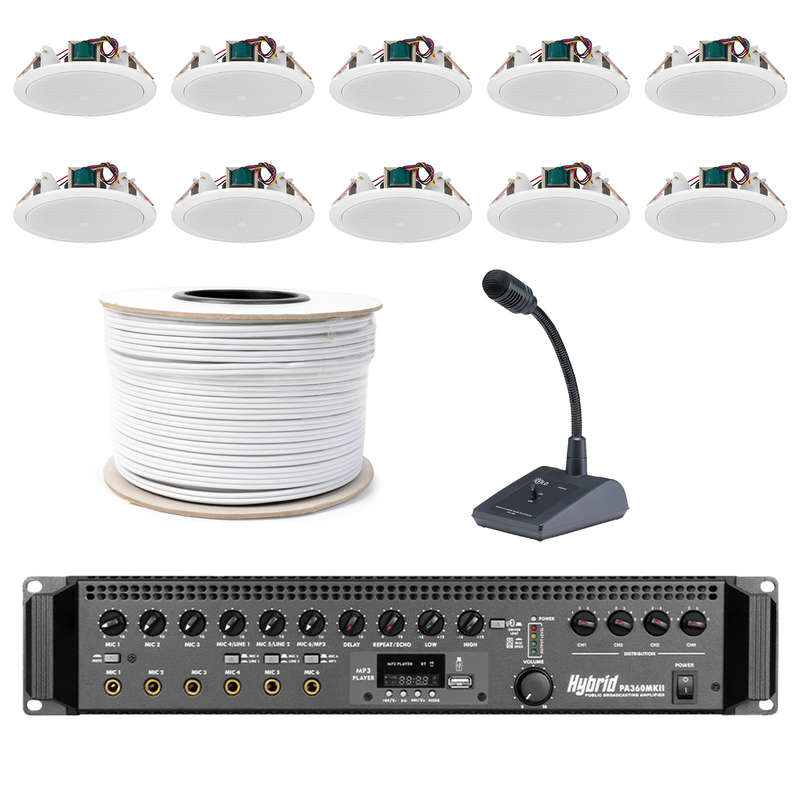

HYBRID PA360 MK2
Power Amplifier — Public Broadcasting Series
Overview
Compared to an analogue amplifier, the same-level Class-D amplifier is more portable, weighs 60% less and has a 40% lower energy consumption. This series also has over-temperature, over-voltage, over-current and short circuit protection, an input signal limit and an output current over-current limit.
Features
6 MIC inputs, one with a priority function
3 LINE inputs
2-band EQ
Digital effect processor
Built-in MP3 with USB, FM and Bluetooth functionalities
Outputs include an 8—16 output, a 70 V output, a 100 V output as well as a LINE level output
Specifications
Rated output power: 360 W
2-band EQ: A 100 Hz band and a 10 kHz band, both with ±15 dB adjustment
Frequency response: 60 Hz—16 kHz ±1 dB
THD (1 kHz): 0.5%
S/N MIC ratio for inputs 1—3: < 108 dB
S/N LINE ratio for inputs 1—3: < 88 dB
MIC inputs 1—3: 50 dB, 600 , unbalanced
LINE inputs 1—3: 10 dB, 10 k, unbalanced
Power supply: 220—240 Vac, 50—60 Hz
NOTE: When the 8—16 output is used, the maximum available power is 70% for either the 70 V output or the 100 V output.
HYBRID is a South African brand with over 30 years' experience in professional audio, stage and lighting. Our brand is aimed specifically at the African market to meet our continent's demands for features, performance and budget.
MONACOR EDL-612
EDL-612
PA ceiling speaker
- 100 V transmission technology via audio transformer with 3 power taps 12/6/3 W
- For a ceiling thickness from 5 to 22 mm
- Type 165 full range speaker
- A more powerful reproduction of the range of fundamental notes
- Robust metal version (basket and protective grille)
Filo — DESKTOP DYNAMIC PAGING MICROPHONE
- Directional characteristics: uni-directional
- Frequency response: 80 to 12,000Hz
- Impedance: 600 ohms
- Sensitivity (at 1000Hz, SPL 94dB): -72dB +/- 3dB
- Cord: 1.5m curled cord
- Used for public address events
- Reliable, economic and high performance
- One-piece mold (OPM) durable cartridge
- Type: Dynamic
- Polar Pattern: Uni-directional
- Impedance: 600 ± 30%
- Frequency Response: 80Hz~12,000Hz
- Sensitivity: -72 ± 3dBV/bar
- Dimension: 162 x 122 x 368mm
- Weight (without cable): 810± 10g
