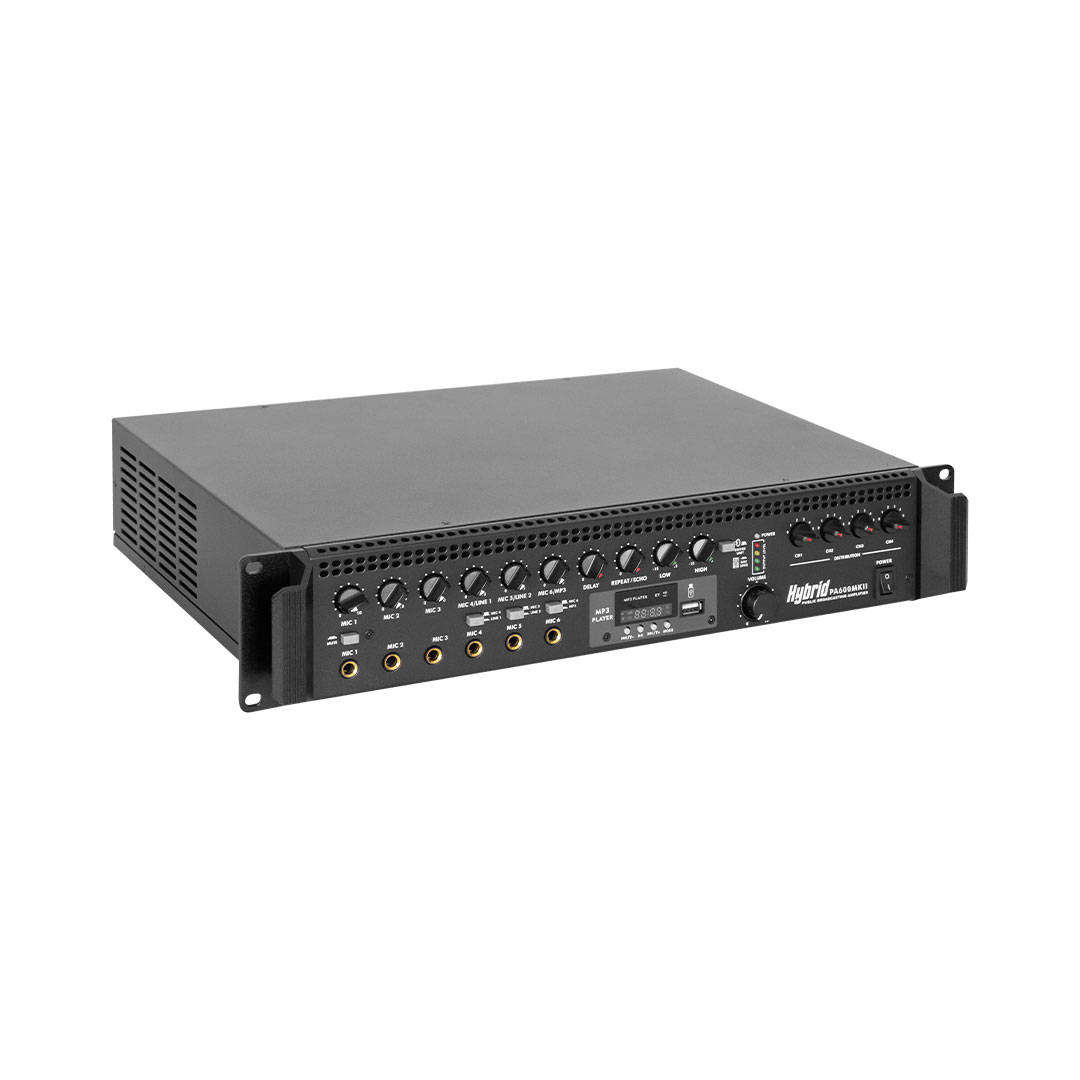

Power Amplifier Public Broadcasting Series
Overview
Compared to the analogue amplifier, the same-level Class-D amplifier is more portable, weighs 60% less and has a 40% lower energy consumption. This series also has over-temperature, over-voltage, over-current and short circuit protection, an input signal limit and an output current over-current limit.
Features
6 MIC inputs, one with a priority function
2 LINE inputs
2-band EQ
Digital effects processor
Built-in MP3 with USB, FM and Bluetooth functionalities
Outputs include an 816 output, a 70V output, a 100V output
4-zone 100V switched level output control
Balanced LINE level output
Specifications
Rated output power: 600W
2-band EQ: A 100Hz band and a 10kHz band, both with ±15dB adjustment
Frequency response: 60Hz16kHz ±1dB
THD (1 kHz): 0.5%
S/N MIC ratio for inputs 16: < 108dB
S/N LINE ratio for inputs 12: < 88dB
MIC inputs 16: 50dB, 600, unbalanced
LINE inputs 12: 10dB, 10k, unbalanced
Power supply: 220240Vac, 5060Hz
NOTE: When the 816 output is used, the maximum available power is 70% for either the 70V output or the 100V output.
HYBRID is a South African brand with over 30 years experience in professional audio, stage and lighting. Our brand is aimed specifically at the African market to meet our continents demands for features, performance and budget.
