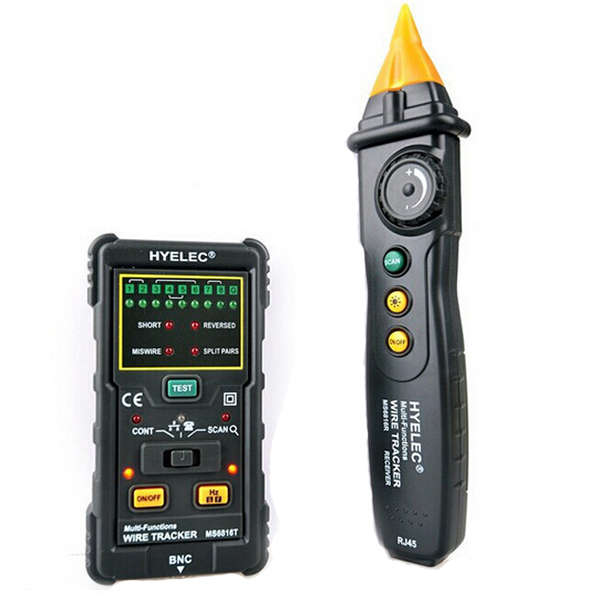

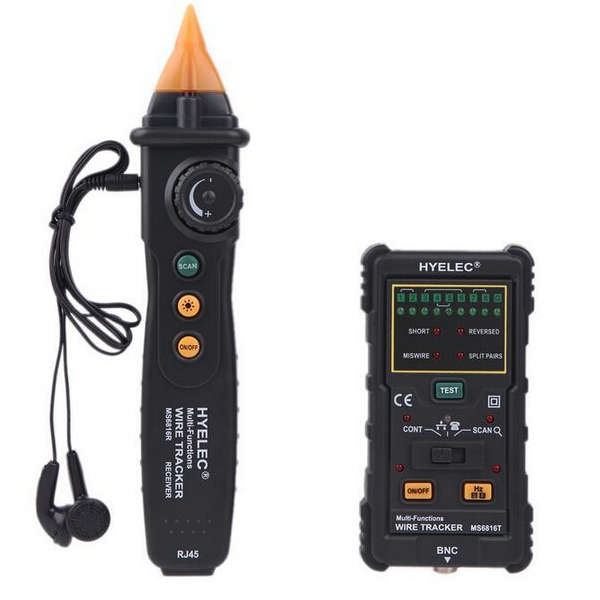

Description :HYELEC MS6816 Multifunctions Telephone Network Phone Cable Wire Tracker Line Tester for Telecommunications Detection
Features :

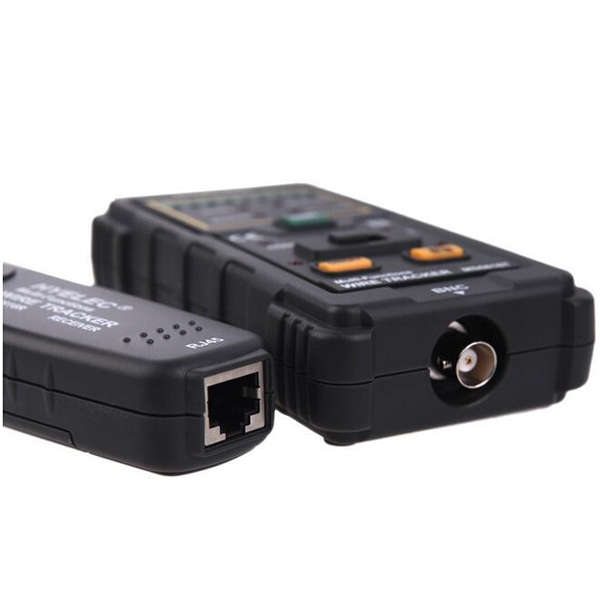

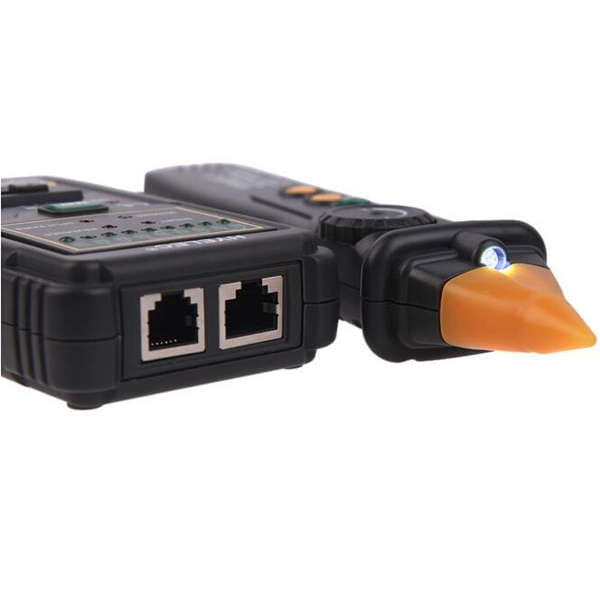

Cable hunting : Directly hunt the cable with RJ11, RJ45 and BNC terminal and other metal leads through adaptor. When cable is hunted, there is no need to strip off cable sheath, which is easy and quick to judge the location of breakpoint in cable. It can directly hunt cable when weak current equipment is turned on, such as Ethernet switch, router.
Test network cable : It can fully test the line sequence of network cable, open circuit, short-circuit, miswire, reverse connection and splitpaires.
Test line level, positive and negative polarity.
Test the status of telephone line : It can test the working status of telephone line (idle, ringing, and off-hook) and judge TIP or RING line
Check lead continuity.
Test the connection between network cable and switch port.

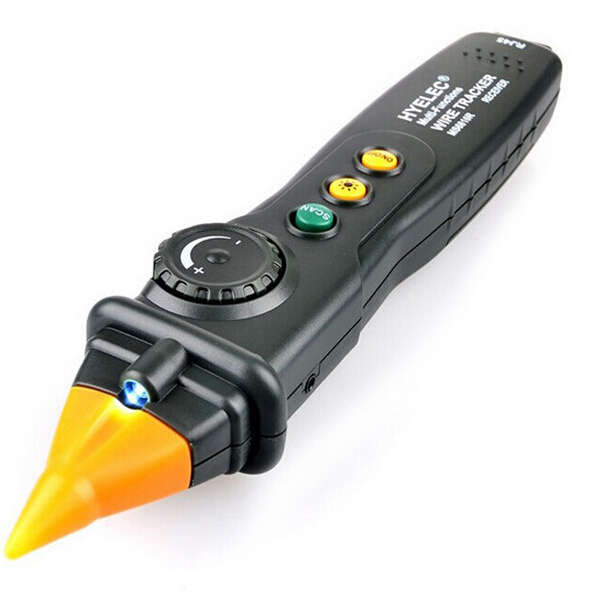

It provides low voltage prompt function and the receiver has installed spotlight.
Specifications:
sequence collation : Open circuit, short circuit, detection of cable line sequence
Network wire collation : Test device used with UTP (Unshield Twisted Pair) and STP (Shield twisted Pair) wiring;Tests for open circuits, shorts, miswires, reversals, and split pairs;Allow one person to test T568A, T568B, 10Base-T, and Token Ring.
Switch port collation : detection switch connected condition
General.
Telephone line test : Identify the state of working telephone line(clear,ring,busy)
DC level test : DC level test.
Continuity : Judge continuity of the cables or wires.

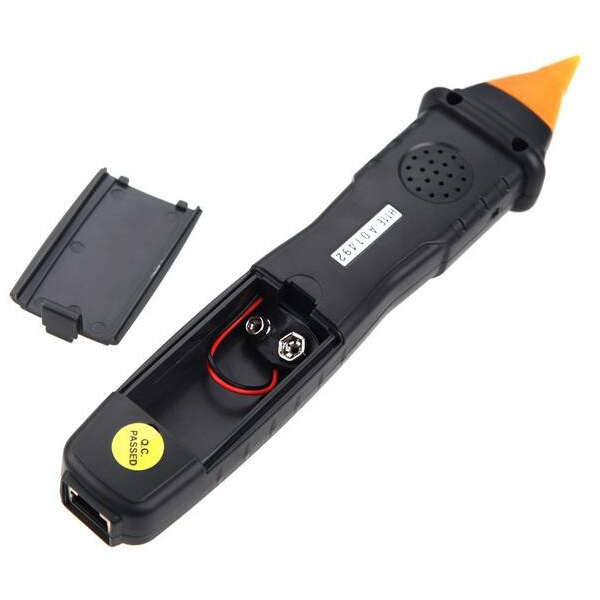

Receiver Power Supply : 1 x 9V 6LR61(Not included)

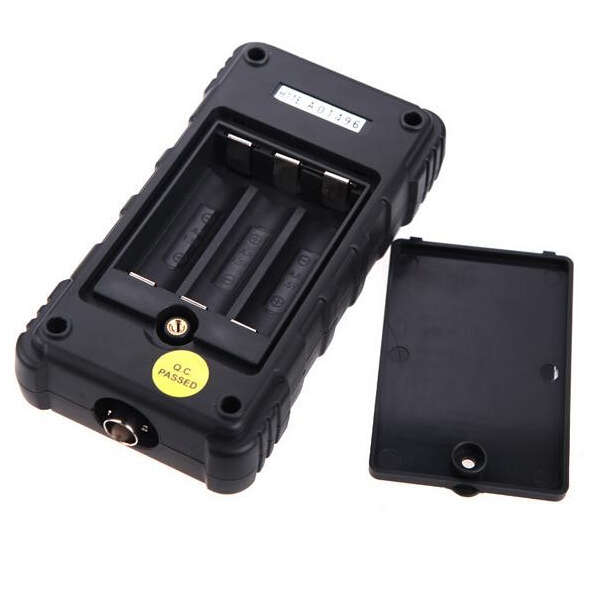

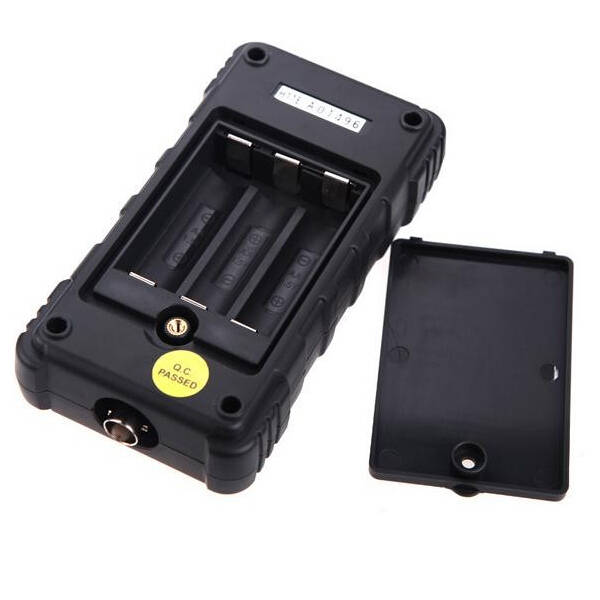

Emitter Power Supply : 6 x 1.5V AAA LRO3(Not included)
Category : CE CAT.III 600V RoHS
Package size : 24 x 16 x 6cm / 9.3 x 6.3 x 2.4in
Package weight : 369g / 13oz

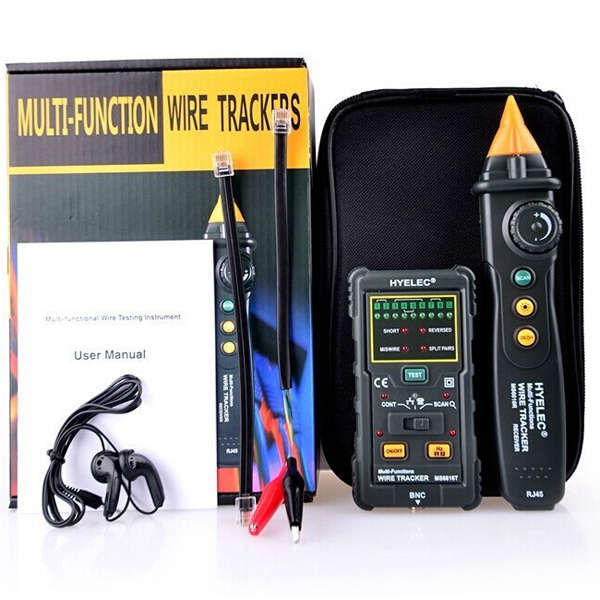

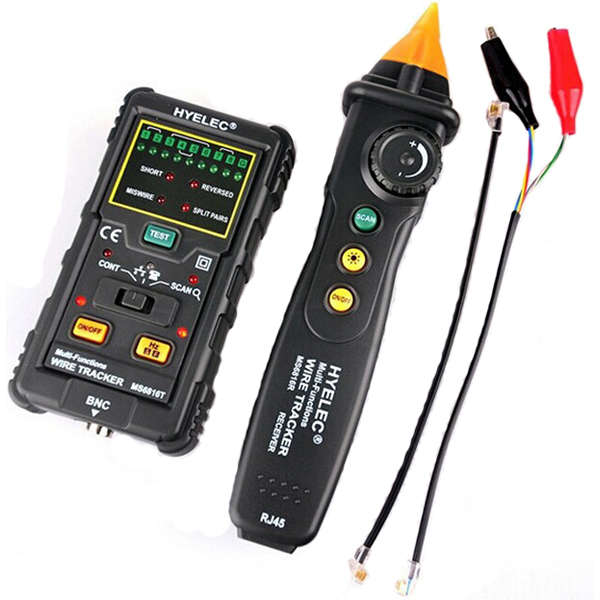

Package included :
1 x HYELEC MS6816R Receiver

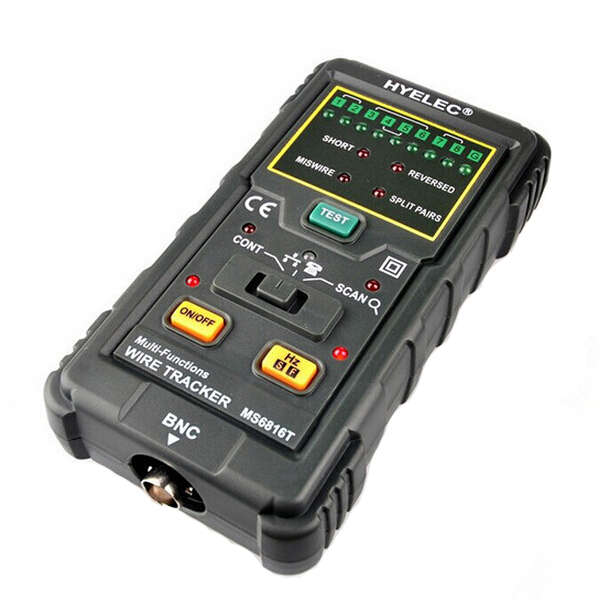

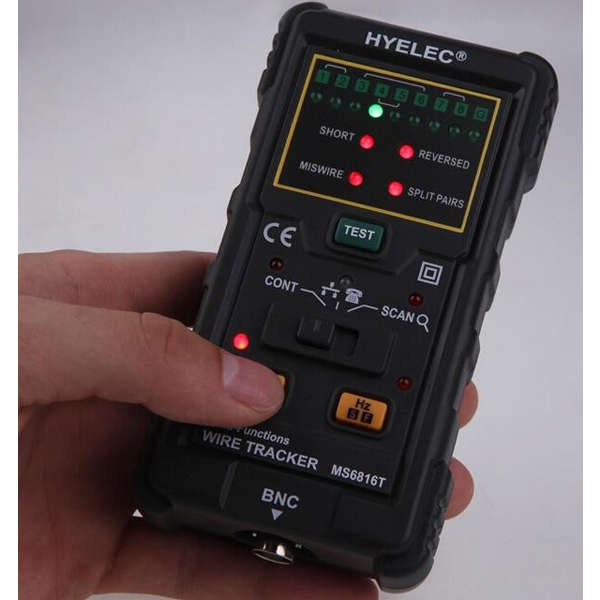

1 x HYELEC MS6816T Emitter
1 x Headphone Cable
2 x Test Cables
1 x English Manual
1 x Portable Bag
Details pictures :
![](https://dl.dropboxusercontent.com/s/6mx9ltndr2ovmqt/RG1.jpg?dl=0)
![](https://dl.dropboxusercontent.com/s/hstxjcrgwy8tpji/RG2.jpg?dl=0)
![](https://dl.dropboxusercontent.com/s/9rfn8v7mqmvw34p/RG3.jpg?dl=0)
![](https://dl.dropboxusercontent.com/s/pbdpuvr5oxmt2eb/RG5.jpg?dl=0)
![](https://dl.dropboxusercontent.com/s/0ni4dslggc67ss6/RG4.jpg?dl=0)
![](https://dl.dropboxusercontent.com/s/ehxp1vjg4jww9yn/RG6.jpg?dl=0)
![](https://dl.dropboxusercontent.com/s/qm9wj5fefbd2ekc/RG7.jpg?dl=0)
![](https://dl.dropboxusercontent.com/s/rdphu30c644uwbi/RG8.jpg?dl=0)
![](https://dl.dropboxusercontent.com/s/c0rvgbdj442zkkz/RG9.jpg?dl=0)
![](https://dl.dropboxusercontent.com/s/42ap8v95m1j63tk/RG10.jpg?dl=0)
![](https://dl.dropboxusercontent.com/s/ng6kqkn5cyv78x6/RG11.jpg?dl=0)
