Introduction

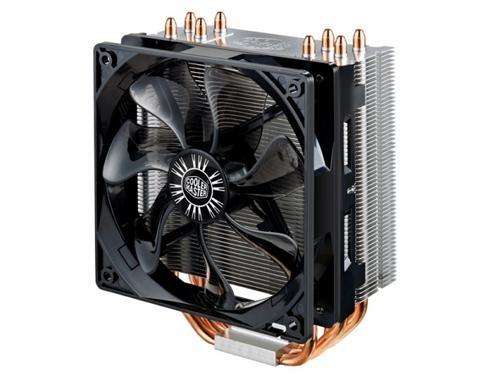

The Hyper 212 EVO cooling systems are designed and optimized to provide the best user experience and cooling potential for a new generation of processors. The Hyper 212 EVO now features four Cooler Master patented Continuous Direct Contact™ (CDC) heat pipes that are tightly packed into a flat array on the CPU Cooler base. This acts as a virtual vapor chamber that dissipates a large amount of heat. The aluminum fin structure has been optimized to provide the perfect performance balance between high and low speed fan operations.
Features
Well-balanced cooling performance provides fin optimizations with perfect balance between high and low speed operations.
4 Direct Contact heat pipes with the patented CDC™ (Continuous Direct Contact) technology - creating a perfect, sleek surface for heat conduction.
Wide-range PWM fan with unique wave-shaped blade design for excellent airflow.
Versatile all-in-one mounting solution supporting the latest Intel® LGA 1366 / 1155 and AMD FM1 / AM3+.
Specifications
CPU SocketIntel Socket:
LGA 2011 / 1366 / 1156 / 1155 / 775 *
AMD Socket:
FM1 / AM3+ / AM3 / AM2+ / AM2
CPU SupportIntel:
Core™ i7 Extreme / Core™ i7 / Core™ i5 / Core™ i3 / Core™2 Extreme / Core™2 Quad / Core™2 Duo / Pentium / Celeron
AMD:
FX-Series / A-Series / Phenom™ II X4 / Phenom™ II X3 / Phenom™ II X2 / Phenom™ X4 / Phenom™ X3 / Athlon™ II X4 / Athlon™ II X3 / Athlon™ II X2 / Athlon™ X2 / Athlon™ / Sempron™
Dimension 120 x 80 x 159 mm (4.7 x 3.1 x 6.3 in)
Heat Sink Dimensions116 x 51 x 159 mm (4.6 x 2.0 x 6.3 in)
Heat Sink Material 4 Direct Contact Heat Pipes / Aluminum Fins
Heat Sink Weight 465g (1.03 lb)
Heat Pipes Dimensionsø6mm
Fan Dimension 120 x 120 x 25 mm (4.7 x 4.7 x 1 in)
Fan Speed600 – 2,000 RPM (PWM) ± 10%
600 – 1,600 RPM (PWM) ± 10% (EU Version)
Fan Airflow 24.9 – 82.9 CFM ± 10%
24.9 – 66.3 CFM ± 10% (EU Version)
Fan Air Pressure 0.3 – 2.7mm H2O ± 10%
0.3 – 1.7mm H2O ± 10% (EU Version)
Fan Life Expectancy 40,000hrs
Fan Noise Level (dB-A)9 - 36 dBA
9 - 31 dBA (EU Version)
Bearing Type Long Life Sleeve Bearing
Connector 4-Pin
Fan Rated Voltage 12 VDC
Fan Rated Current 0.22A
0.19A (EU Version)
Power Consumption 2.64W
2.28W (EU Version)
Fan Weight 104g (0.23 lb)
