HYSTOU PO9B-J4125-6L Embedded Intel Celeron J4125 Processor Six Network Ports Mini Host, Specific...

1. Power input: 12V/5A
2. Support system: Win10\Win11\Linux
3. Working environment temperature: -10 degrees to 50 degrees
4. CPU: Intel Celeron J4125 (4M cache, base frequency 2.0 GHz up to 2.70 GHz 4 cores 4 threads)
5. TDP: 10W
6. Photolithography: 14nm
7. Memory slot: 2xDDR4 260Pin SODIMM, maximum support 24G, installing more than 24G memory will result in failure to enter the system
8. Supported memory frequency (speed): 2400Mhz
9. Sound card: no 3.5mm audio port, 1xintel sound card, HDMI port transmission

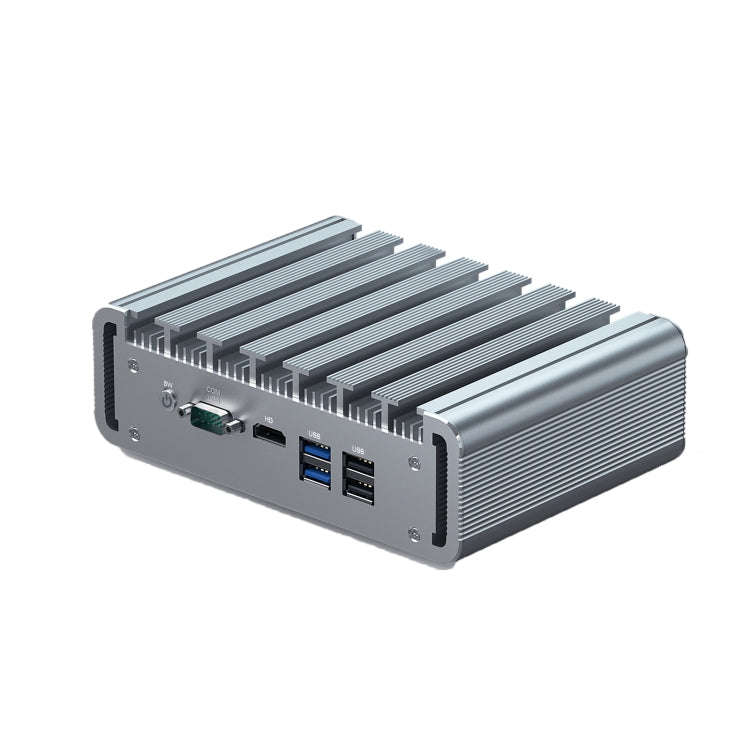

10. I/O interface: 2xUSB3.0, 2xUSB2.0, DC input port x1, 4xRJ45, 2x external antenna interface for WiFi module/4G module signal gain, 1xDB 9Pin RS232
11. Video port: 1xHDMI 4K/30Hz

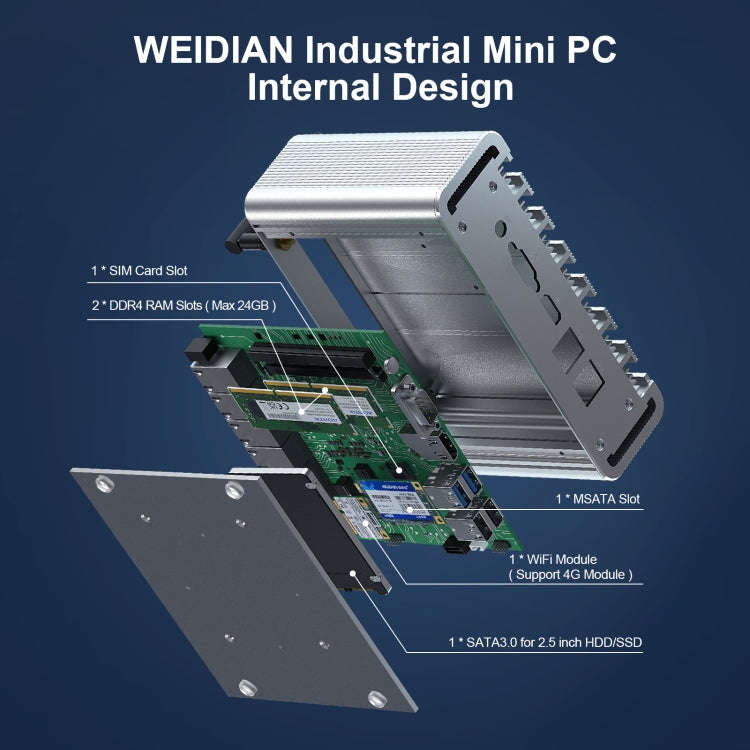

12. Storage ports: 1xMSATA, 1xSATA3.0, for installing 2.5-inch HDD/SSD
13. Expansion slot/mainboard common interface: 1xMPCIE full-height slot for installing WIFI module/3G/4G module, 1x9 Pin USB 2.0 header for extending USB port, 1xSMI card slot for standard SIM card, 1xFP1 row Pins for extending Power sw, Reset, Power LED, HDD LED

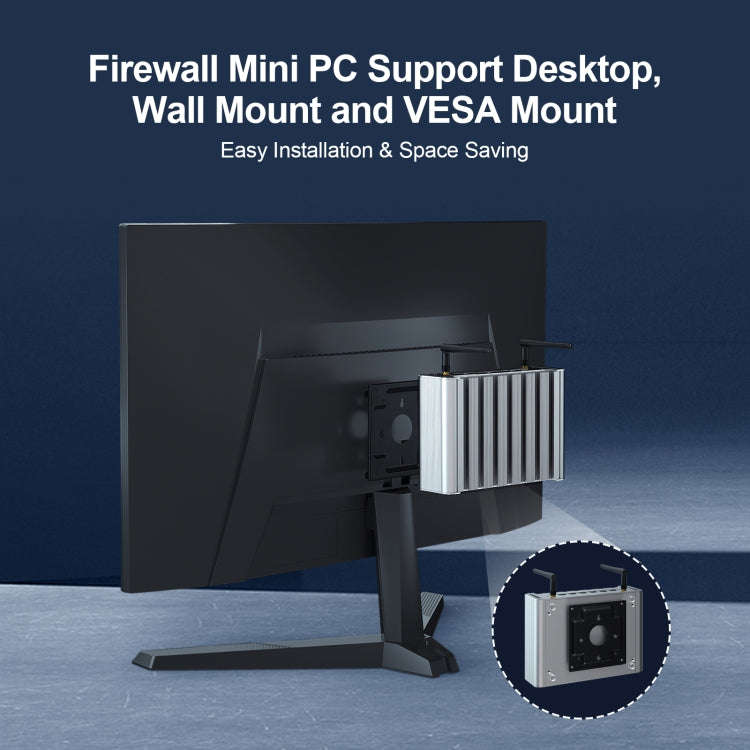

14. Installation method: put on the desktop, support VESA hanger, support rail hanger
15. Graphics card model: Intel UHD Graphics 600
