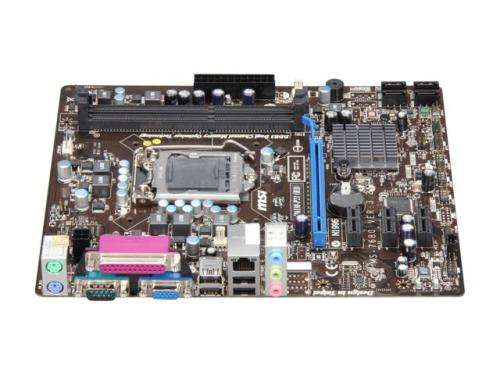

i5 MSI INTEL CORE i5-2500 H61M-P21 (B3) LGA 1155 Intel H61 Micro ATX Intel Motherboard
INTEL CORE i5-2500 PROCESSOR 2nd GENARATION
MOTHERBOARD IS IN GOOD WORKING CONDITION

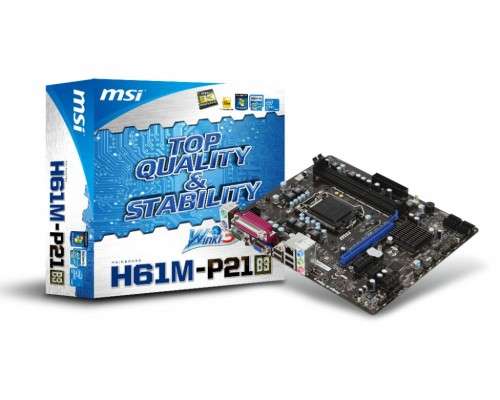

COMES IN ITS ORIGINAL BOX WITH CD FOR DRIVERS
CPU
• Supports Intel® Sandy Bridge processors in LGA1155 package.
Please refer to CPU Support for compatible CPU; the above description is for reference only.
Chipset
• Intel® H61 (B3) Chipset
Main Memory
• Supports two unbuffered DIMM of 1.5 Volt DDR3 1066/1333/1600* DRAM, 16GB Max
- Supports Dual channel mode
*DDR3-1600 MHz is only supported with Intel® Ivy Bridge processors
Slots
• 1 PCI Express gen2 x16 slot
• 3 PCI Express gen2 x1 slots
On-Board SATA
• SATAII controller integrated in Intel® H61 (B3) chipset
- Up to 3Gb/s transfer speed.
- Supports four SATAII ports (SATA1~4) by H61 (B3) PCH
Audio
• Chipset integrated by VIA® VT1708S
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec
- Meet Microsoft Vista Premium spec
LAN
• Supports one PCI Express LAN 10/100 Fast Ethernet by Atheros AR8152.
Internal I/O Connectors
- ATX 24-Pin power connector
- 4-pin ATX 12V power connector
- CPU x 1 / System x 2 FAN connectors
- Front panel audio connector
- Front panel connector
- 1 x chasis intrusion connector
- 3 x USB 2.0 connectors
- 4 x Serial ATAII connectors
- 1 x Clear CMOS jumper
- 1 x SPDIF-out connector
- 1 x TPM module connector

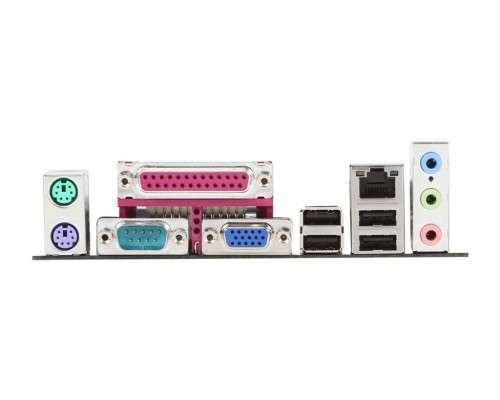

Back Panel I/O Ports
- 1 x PS/2 Mouse port
- 1 x PS/2 Keyboard port
- 4 x USB 2.0 ports
- 1 x Parallel port
- 1 x Serial port
- 1 x Graphics Card port
- 1 x RJ45 LAN Jack
- 1 x 3 in 1 audio jack
MSI Reminds You...
• VGA port can only work with CPUs with GPUs core inside.
BIOS
• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
Dimension
• 24.5cm(L) x 20.5cm(W) M-ATX Form Factor
Mounting
• 6 mounting holes.
