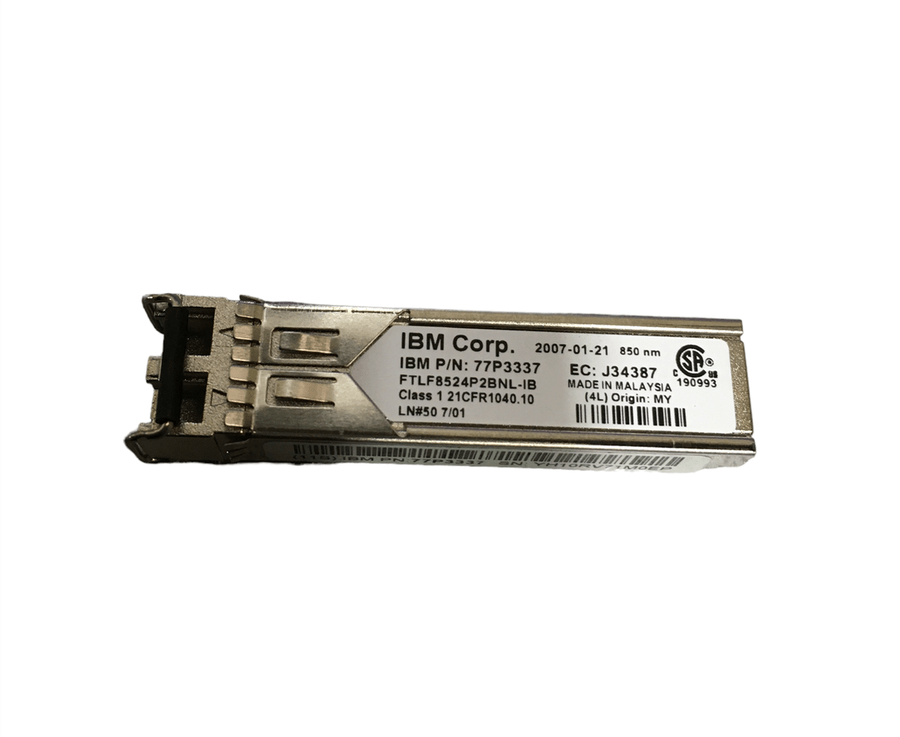

The IBM FTLF8524P2BNL-IB is a high-performance short-wavelength SFP+ transceiver designed for Fibre Channel applications across multiple speeds, supporting up to 10.52 Gb/s. It uses an 850nm VCSEL laser and PIN photodiode receiver for multimode fibre links, making it ideal for enterprise storage networks.
With support for Digital Diagnostic Monitoring (DOM), a wide temperature range, and compliance with industry standards such as SFF-8431 and RoHS, this transceiver is a robust, plug-and-play optical solution for demanding Fibre Channel environments over 300 meters.
Key Features & Benefits
Supports Fibre Channel rates from 1G to 10G over short-reach multimode fibre
850nm VCSEL transmitter with 300m range ideal for SAN environments
Digital Diagnostic Monitoring (DOM) support for real-time performance tracking
Double LC interface simplifies high-density fibre connectivity
Reliable extended temperature performance (-20°C to +85°C)
CE, FDA, RoHS, and SFF-8431 compliant for global compatibility and safety assurance
Ideal Uses
High-performance SAN applications running on 1G10G Fibre Channel
Integration with switches, storage arrays, and host bus adapters (HBAs)
Short-range enterprise backbone and data center optical links
Upgrade/replacement transceiver for IBM fibre-based network infrastructure
Specifications
Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
Transceiver Type: SFP+
Media Type: Multi-Mode Fiber (MMF)
TX Wavelength: 850 nm
RX Wavelength: 850 nm
Wavelength Bandwidth (TX/RX): 840860 nm (20 nm)
Supported Data Rates: 1.0625G, 2.125G, 4.25G, 8.5G, 10.52G Fibre Channel
Minimum Optical Budget: 4.6 dB
Maximum Distance: 300 m
Minimum Transmit Power: -6.5 dBm
Maximum Transmit Power: 1 dBm
Receiver Sensitivity: -11.1 dBm
Receiver Overload: -1 dBm
Dispersion Tolerance: 110 ps/nm
Transmitter Type: VCSEL Laser
Receiver Type: PIN photodiode
Power Supply: +3.3V
Connector Type: Double LC
Temperature Range: -20°C to +85°C
Chipset: MAXIM, MINDSPEED, SEMTECH
Compliance: CE, RoHS, Class 1 FDA, IEC60825-1, SFF-8431, SFP MSA
Digital Diagnostic Monitoring: Supported
Warranty: 3 Month Carry-in Warranty
What's in the Box: Transceiver Module Only
