Description: Brand: iCharger

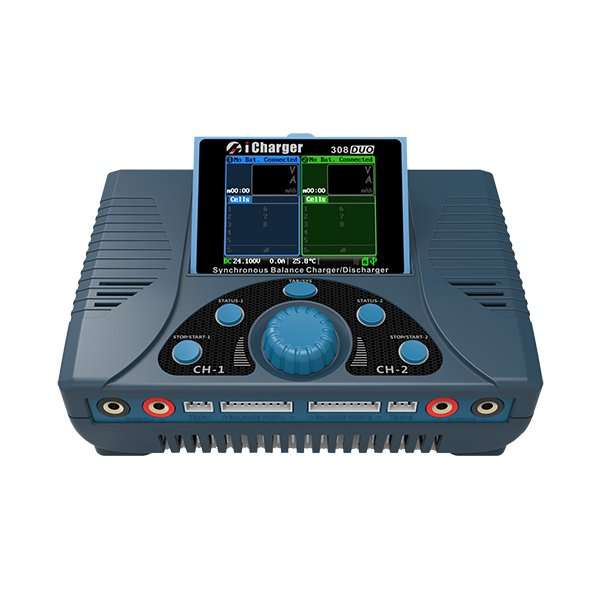

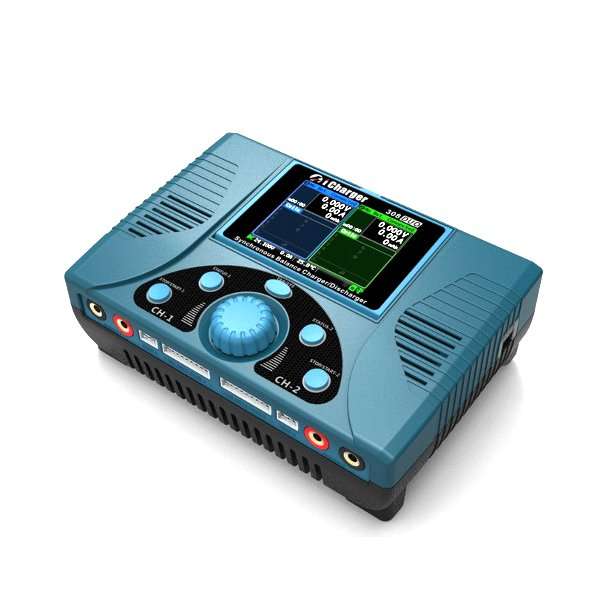

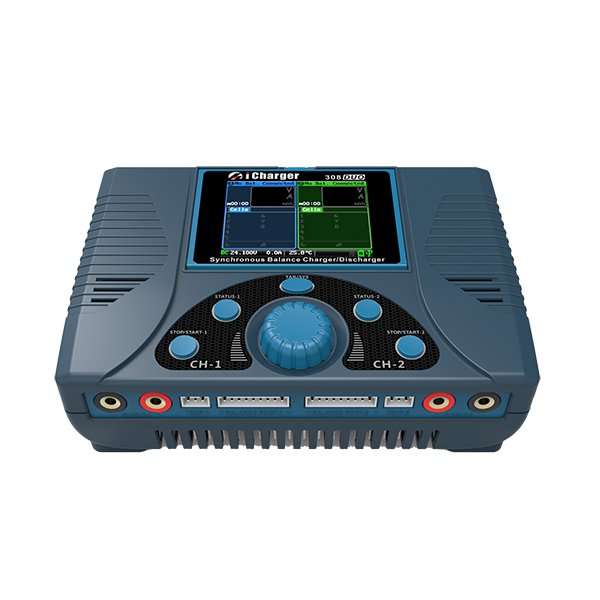

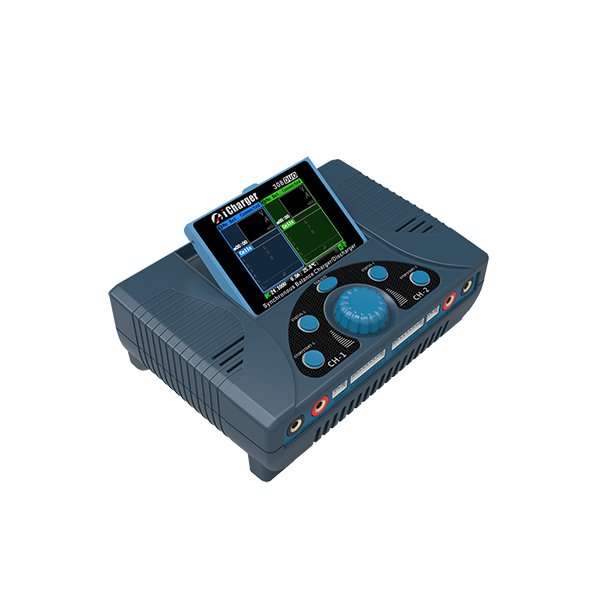

Item Name: 308 Duo 1300w High Power Lipo battery Balance
Size: 171.mm??118mm??59mm
weight: about 910G
Input voltage range:10-30VDC
Maximum input current limit: <60A ??Channel?Maximum input current limit:<40A
Charge / discharge maximum current: 50A@Syn.Mode 30A@Asyn. Mode
Maximum charging power: 1300W(Channel 800W @input > 23.5V)
Maximum discharge power: 130W(Channel 80W)
maximum recovery discharge power: 1300W(Channel 800W)
Maximum extension discharge power: 2100W(Channel 1050W @35V/30A)
Maximum balance current: 2.4A@Syn.Mode 1.2A@Asyn. Mode
USB charging port: 5V/1A (Current limiting protection:1.2A)
Features: -Synchronous buck-boost DC/DC converter?technique.?1300W maximum charging power .
-30A maximum charging?current and?50A maximum two-channel synchronous charge and discharge current .1.2A maximum balance current .
-Each channel supporting 8S LiPo,Lilo,LiFe ,NiZn battery , 1-20S NiMH/ Nickel-cadmium battery and supporting 1-15S Lead-acid battery charging.
-5V/1A?USB charging port?convenient to charge for??mobile phone and?tablet computer .
-Smart fan controlled,through the internal temperature sensor to control speed of fan?
-Internal temperature protection, charge will reduce the output power?automatically if internal temperature is more than decay temperature and will stop the working if internal ? ?temperature is more than shutdown temperature.
-Support to save 64 sets battery parameters setting and data Import / export to SD card.
-2.8-inch color LCD display can show current,voltage,power,temperature ,consuming time,controlling state.
-Support entire battery pack Internal resistance measurement offline and online and supporting?measurement?internal resistance of each monomer of Lipo battery pack.
-Input or output reverse polarity protection,Input voltage / current protection,battery temperature protection,capacity protection,time-consuming protection,maximum power ? protection and so on .
-Supporting USB port or SD card updated hardware program .Data ,drawing and analysis of charge and discharge can be show by?Logview software.
Package included 1X iCharger 308 Duo 1300w DC High Power Lipo Balance Charger
1X input power cable
2X output?power cable
2X balance boards
,
,
,
