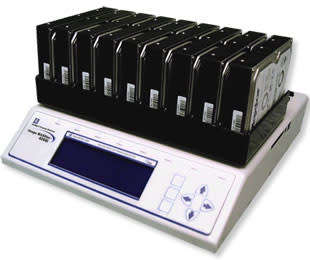

ICS ImageMASSter 4008i - Disk Duplicator

The ImageMASSter 4008i high speed hard drive duplicator contains multiple copy modes that support the standard Windows Operating Systems and non-Windows Operating Systems. Partitions are automatically scaled and formatted during the data copy process, eliminating the need to manually prepare a drive prior to usage. The IM 4008i hard drive duplicator unit also comes equipped with the WipeOut option. This option allows you to quickly and accurately erase data from hard drives.

ICS Industrial High-Speed Multiple Hard Drive Duplicators are being used for hard drive cloning, copying data, upgrading computers and sanitizing hard drives on the production line of the major PC Manufacturers as well as thousands of large and middle size corporations. Copy data in different modes, image hard drives of different size and models, erase data, copy hidden partitions, format hard drives, use the SATA adapter to copy Serial ATA Drives and check the additional different optional Software and Hardware features for fast, reliable hard drive cloning.

Features

• High Speed Copy Operation: Data transfer rate exceeds 2GB/min.
• Copy Multiple Hard Drives Simultaneously: Copy data at High Speeds to 8 target drives simultaneously using the IM4008i.
• Multiple Media Support: Supports data duplication between P-ATA hard disk drives. S-ATA notebook drives and ATA compatible Flash devices are supported using ICS proprietary adapters.
• Multiple Copy Methods: Copy data in a sector-by-sector method, which supports copying any Operating System and file system.  Copy allocated data only using the ICS proprietary intelligent copy method known as “IQCOPY”, which supports Windows FAT-16, FAT-32 and NTFS file systems.
• Partitions and Formats Drives: Target drives are automatically partitioned and formatted during the data copy process, eliminating the need to manually prepare a drive prior to usage.
• Copy between Different Drive Models and Sizes: Simultaneously copy data between different drive models and capacities.  Partitions will automatically be scaled to the size of the target drive.
• 48-Bit Support:  Provides 48-bit drive support to copy hard drives larger than 137GB.
• WipeOut: Sanitize hard drives and erase data on up to 9 drives simultaneously at speeds greater than 3GB/min.
• Multiple User Defined Settings: This feature allows authorized users to store multiple user defined unit settings.
• Password Protected Settings: This feature protects the unit’s user defined settings from being changed by un-authorized users.
• Log Information: Detail operational event log information can be viewed or saved to Compact Flash

Software

The following Software features come standard with the IM Solo-3 IT unit:

• IQCOPY: IQCOPY provides a fast method of duplicating Windows 95/98/2000/XP configured drives. The file system is analyzed and only the allocated drive space is copied.  Allows mixing different size drives in the same software load.  Creates a fully operational data copy of a Windows based load in under a minute.  Supports FAT and NTFS systems.
• Auto Scale and Format Partitions: Automatically scales and formats hard drive partitions to the size of the target drive using the IQCOPY mode of operation.
• Image Copy: Transfers data in a sector by sector copy method to produce an exact image of the source drive.  All allocated and unallocated drive space is copied.  Supports all Operating Systems and File Systems.
• WipeOut DoD: This function is designed to erase all data on hard disk drives.  Sanitize up to 9 drives simultaneously at speeds greater than 3GB/min.
• WipeOut Fast Option: The WipeOut Fast option provides a quick non-DoD method of wiping hard drives of all previously stored data.
• Block Map Copy: Provides the user with the ability to select up to 10 ranges of sectors to be copied from the source drive to the target drive(s).  This function implements a sector-by-sector copy method.
• Store Log and Database Information: The unit provides functions to display and store real time event information in a log and database format.
• Error Detection and Verification: Provides automatic real-time CRC-16 error detection and correction.
• Manage User Defined Settings: This built in feature allows authorized users to store multiple user defined unit settings
