| Resolution | | 203dpi, 300dpi |
|---|
| Printing method | | Direct Thermal and Transfer Thermal |
|---|
| Max. print speed | | 6ips @ 203dpi, 4ips @ 300dpi |
|---|
| Max. print width | | 4.25"(108mm) @ 203dpi and 4.17"(106mm) @ 300dpi |
|---|
| Max. print length | | 90"(2,286mm) @ 203dpi, 60"(1,524mm) @ 300dpi |
|---|
| Physical dimension(W x H x D) | | 7.09"(180mm) × 11.54"(293mm) × 9.33"(237mm) |
|---|
| Weight | | 6.17lbs(2.8kg) |
|---|
| Processor | | 32-bit RISC CPU |
|---|
| Memory | | 256 MB Flash / 128 MB RAM |
|---|

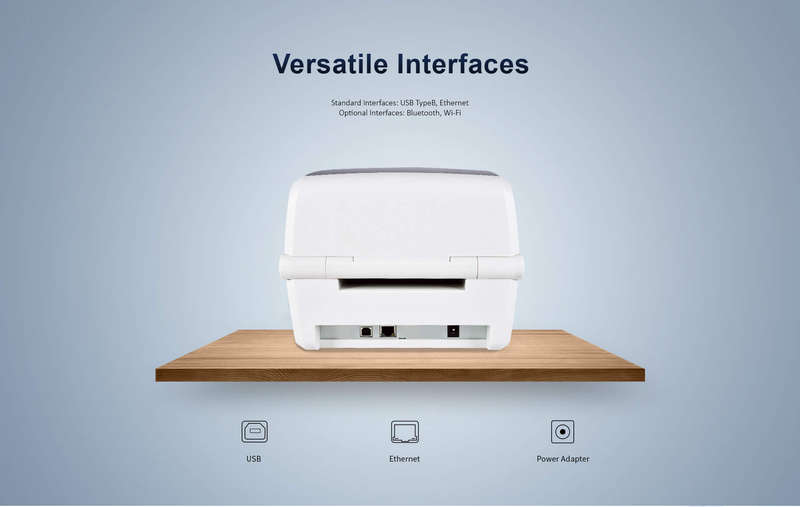

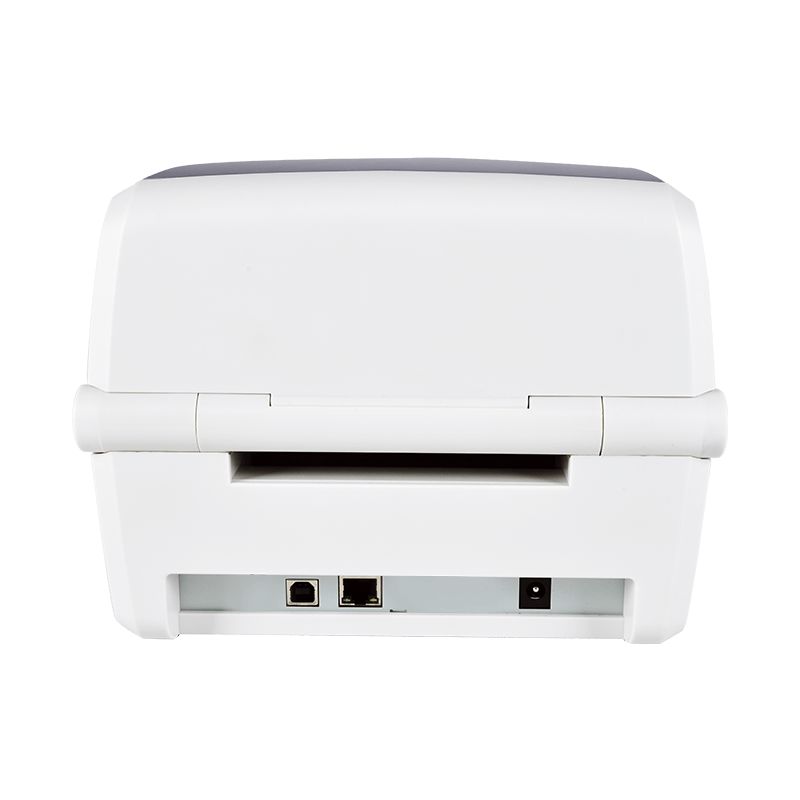

| Interface | | Standard: USB-B and Ethernet 10/100Base T
Optional: Wi-Fi802.11a/b/g/n, Bluetooth 5.2/LE |
|---|
| WiFi security encryption | | WEP 40/128bit, WPA Personal (PSK), WPA2 Personal (PSK) Enterprise (AES CCMP) |
|---|
| WiFi security authentication | | EAP-TLS, EAP-FAST, EAP-TTLs, PEAPv0/MS-CHAPv2, PEAPv1. EAP-MDS, LEAP |
|---|
| Power | | External universal switching power supply
Input: AC 100~240V, 2.5A, 50~60 Hz
Output: DC 24V 2.5A, 60W |
|---|
| User interface | | 2 operation buttons(power,feed)
2 LEDs with 3 colors |
|---|
| Sensors | | Gap transmissive sensor
Black mark reflective sensor (position adjustable)
Head open sensor
Ribbon end sensor |
|---|
| Internal fonts | | 8 resident expandable ZPL II bitmap fonts
Simplified Chinese, Traditional Chinese
Downloadable objects include graphics, scalable and bitmap fonts, label templates and formats
IBM Code Page 850 international character sets are available in the fonts A, B, C, D, E, F, G and 0 through software control
Code Page 1250, 1251, 1252, 1253, 1254, 1255, 1256 Support with font 0 |
|---|
| Graphic formats | | PCX,BMP |
|---|
| Bar code | | 1D barcode: UPC-A, UPC-E, Codabar, CODE128, CODE39, CODE93, EAN-8, EAN-13, UCC/EAN128, POSTNET, ITF14, MSI, Plessey, Telepen, GS1 DataBar, German Post Code, Interleaved 2 of 5, Standard 2 of 5, Industrial 2 of 5, CODE11, EAN14
2D barcode: PDF417, Data Matrix, Maxicode, QR Code, MicroPDF471, Aztec |
|---|
| Font and barcode rotation | | 0, 90, 180, 270 degree |
|---|
| Printer Language | | ZPL-II, TSPL, DPL, EPL2 |
|---|
| Media type | | Continuous, die-cut, black mark, fan-fold, notch |
|---|
| Media handling | | Standard: Continuous, Tear-Off / Options: Peel-Off, Cut |
|---|
| Media width | | Min 1"(25.4mm) / Max 4.65"(118mm) |
|---|
| Media thickness | | 0.002"(0.06mm) to 0.010"(0.250mm) |
|---|
| Media core diameter | | 0.5"(12.7mm)/ 1"(25.4mm)/ 1.5"(38.1mm) |
|---|
| Media max. roll diameter | | 5.0"(127mm) |
|---|
| Media length | | Min.: Tear-Off 0.24"(10mm) @ 203dpi, 0.2"(8mm) @ 300dpi
Min.: Peel-Off , Cutter 1.0"(25.4mm)
Max.: 90"(2,286mm) @ 203dpi, 60"(1,524mm) @ 300dpi |
|---|
| Ribbon type | | Wax, Wax/Resin, Resi |
|---|
| Ribbon length | | 984.3 ft(300m) |
|---|
| Ribbon core diameter | | 1.0"(25.4mm) |
|---|
| Ribbon width | | Min 1.18"(30mm) / Max 4.33"(110mm) |
|---|
| Environment condition | | Operating Temperature: 41° to 122°F (5° to 50°C) (limitations based on selected media) / Operating Humidity: 25 to 85% RH Non-Condensing
Storage Temperature: -4° to 140° F (-20° to 60° C) / Storage Humidity: Non-Condensing |
|---|
| Safety Certification | | CCC, FCC, CE, CB, Energy Star |
|---|
| Environmental concer | | RoHS, WEEE |
|---|
| Options | | Wi-Fi802.11a/b/g/n/ac
Bluetooth 5.2/LE
Peel
Guillotine cutter |
|---|
