Print speed up to 14 ips;

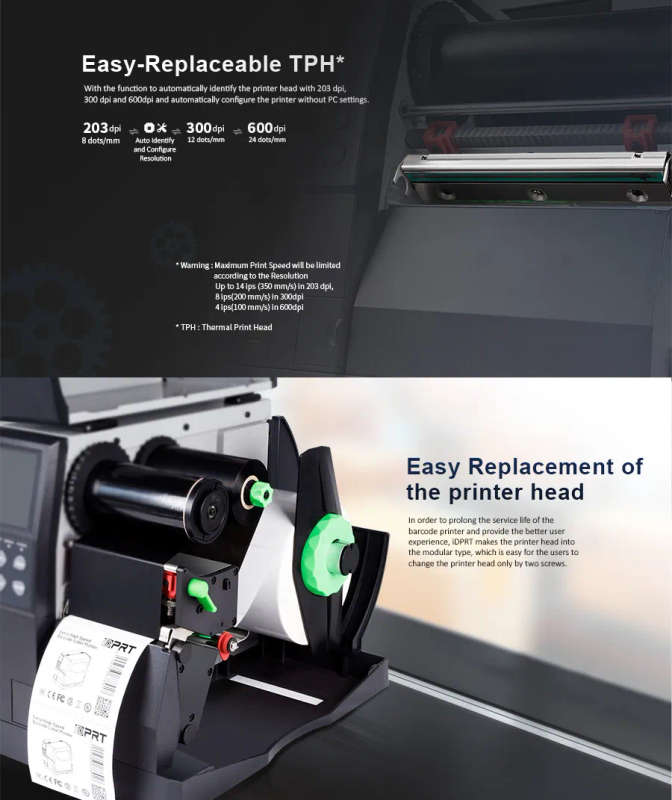

The modular design of printer head makes the disassembly and assembly easy;
With the function to automatically identify the printer head with 203 dpi, 300 dpi and automatically configure the printer without PC settings;
With super large storage, DDR2 RAM 512 MB, Flash 256MB;

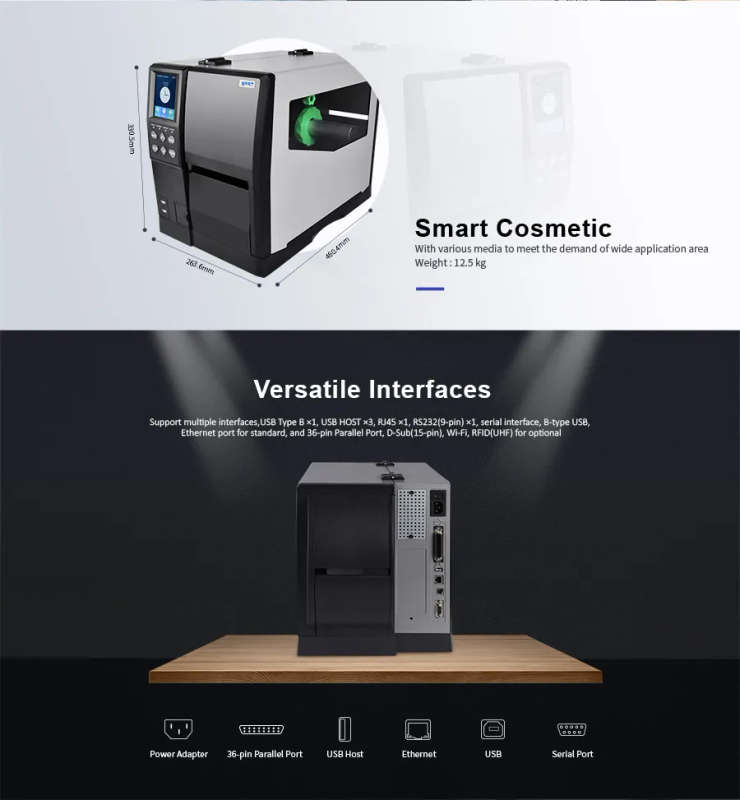

Support multiple interfaces USB HOST, serial interface, B-type USB, Ethernet port for standard, and 36-pin Parallel Port, D-Sub(15-pin), Wi-Fi, RFID(UHF) for optional;
3.5-inch color LCD touch screen and USB HOST to achieve offline operation;
Cool black metal housing to get the printer stable and durable;
With various media to meet the demand of wide area;
With free label editing software Bartender to make the label editing convenient and easy

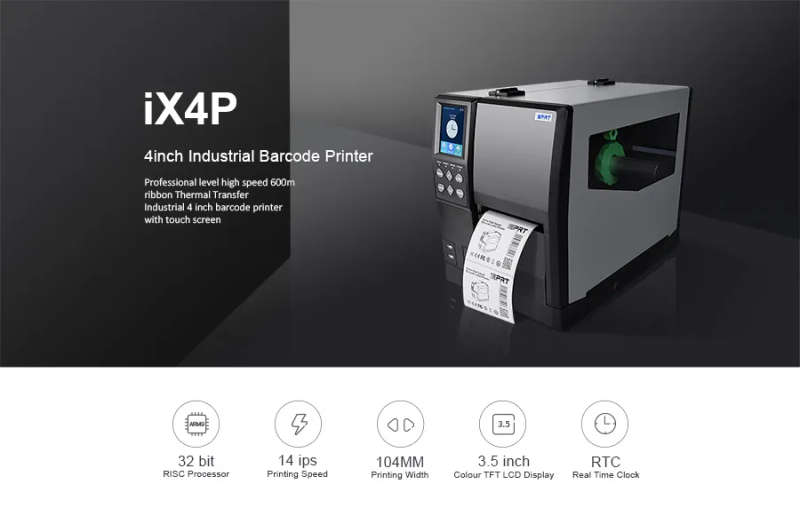

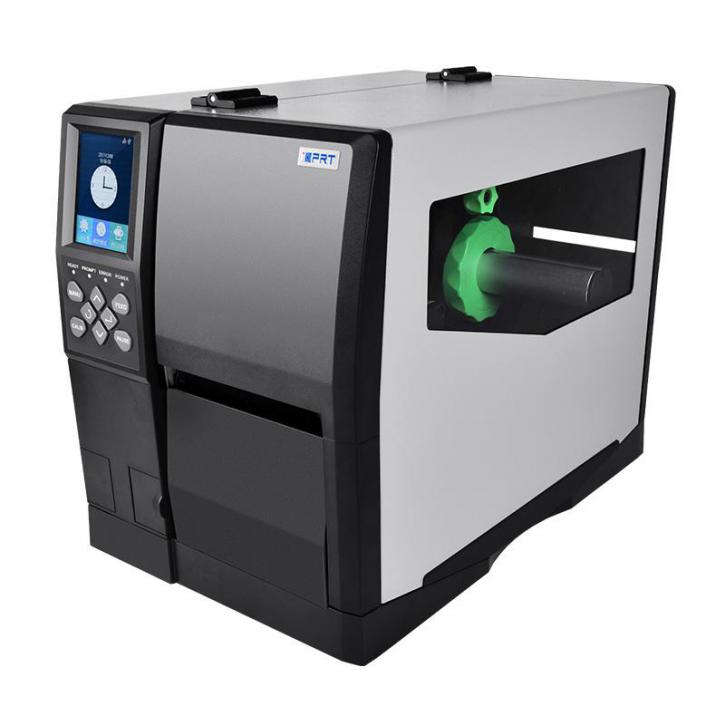

Model | iX4P |
Printing Method | Direct Thermal / Transfer Thermal |
Resolution Max.Printing Speed | 203 dpi / 12 ips |
Optional 300 dpi / 8 ips or 600 dpi / 4 ips | |
Max.Pringting Length | 2286 mm(203 dpi) |
1524 mm(300 dpi) ; 762 mm(600 dpi) | |
Max.Printing Width | 104 mm |
Protocol | ZPL,DPL, EPL |
Printing Media Type | Continuous paper, seam label paper, |
Black Label paper, punched paper, | |
environmental protection thermal label paper | |
special coated paper, synthetic fiber label | |
paper, textile belt | |
Printing Media Diameter | 1.5 inches/ 3 inches inner diameter |
Maximum 10-inch outer diameter | |
Printing Media Thickness | 80 um ~ 250 um |
Printing Media Width | 25 mm ~ 120 mm |
Ribbon Type | Wax, Resin, Wax and resin mixture |
Ribbon Die | 1 inch |
Ribbon Width | 30 mm ~ 110 mm |
Ribbon Length | 600 meters |
Sensor Configuration | Print mechanism off detection, |
Ribbon off detection,Media off detection, | |
Print head temperature detect | |
Seam label/ punched label/Black label | |
positioning detection, | |
motor emperature detect | |
Standard Communication Port | 1 USB-B, 3 USB HOST |
1 Ethernet Port, 1 RS232 Serial Port | |
Optional Communication Port | Parallel Port or Labeller Port, WiFi |
UHF RFID | |
RAM | 512 MB |
Flash | 256 MB |
Operation window | 4 status lights, 6 buttons |
3.5 inches color screen | |
Optional accessories | Peeler Module, |
Cutter Module | |
External Label Roll Holder | |
Dimension (L*W*H) | 460.4 x 263.6 x 330.5mm |
Weight | 12.5KG |
Certificate | CE, FCC, CCC, CB, RoHS, WEEE |
