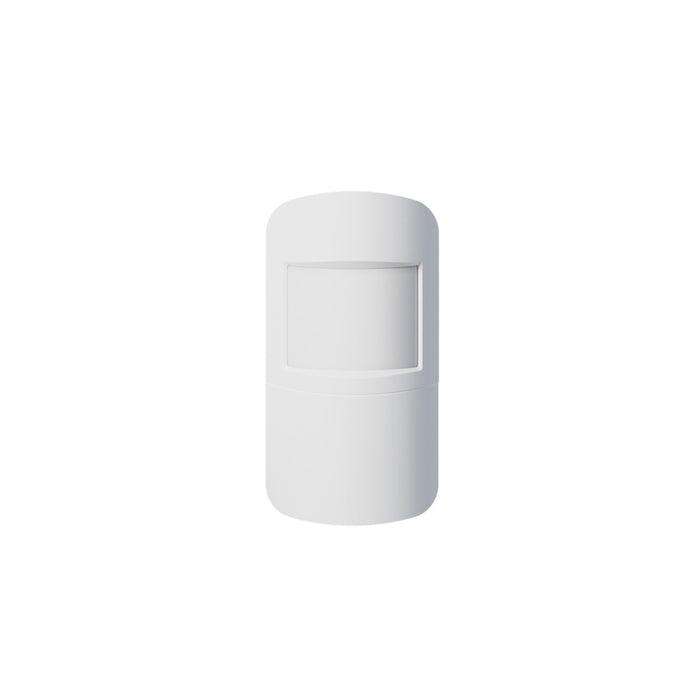

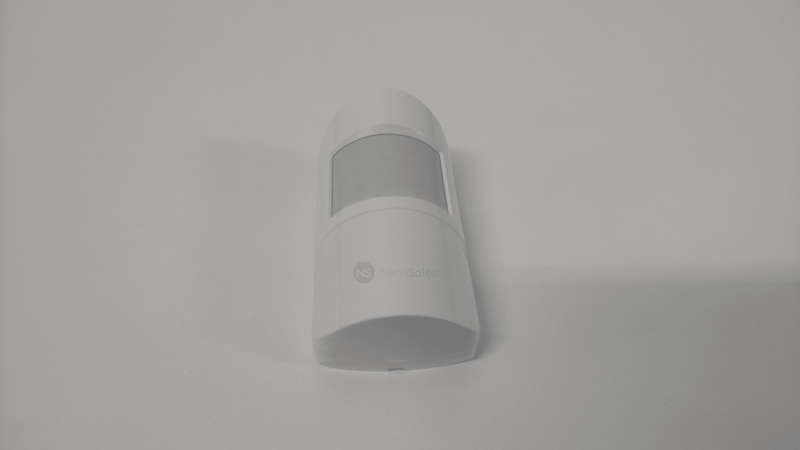

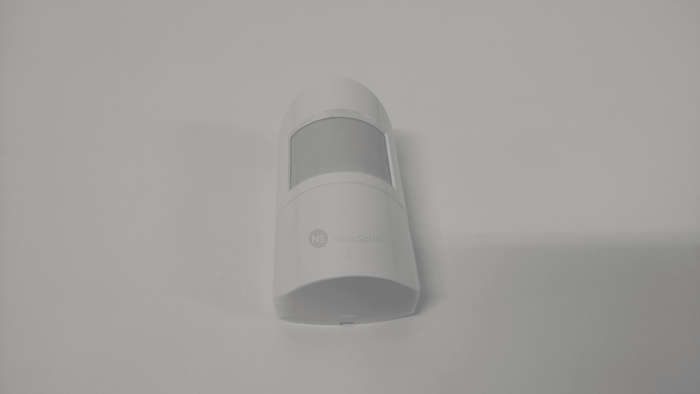

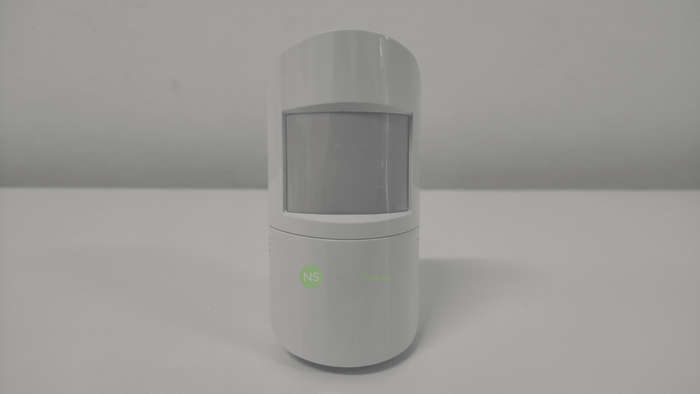

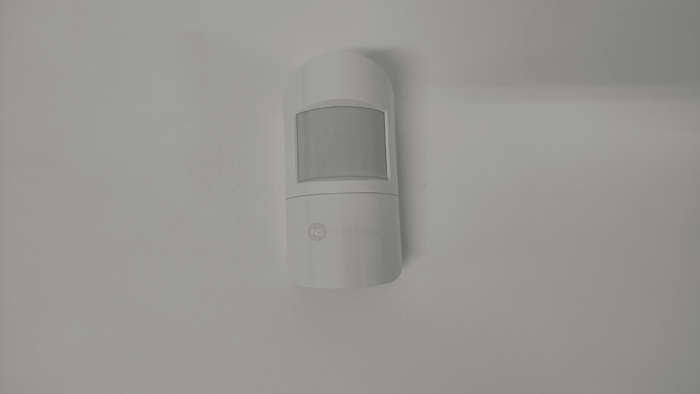

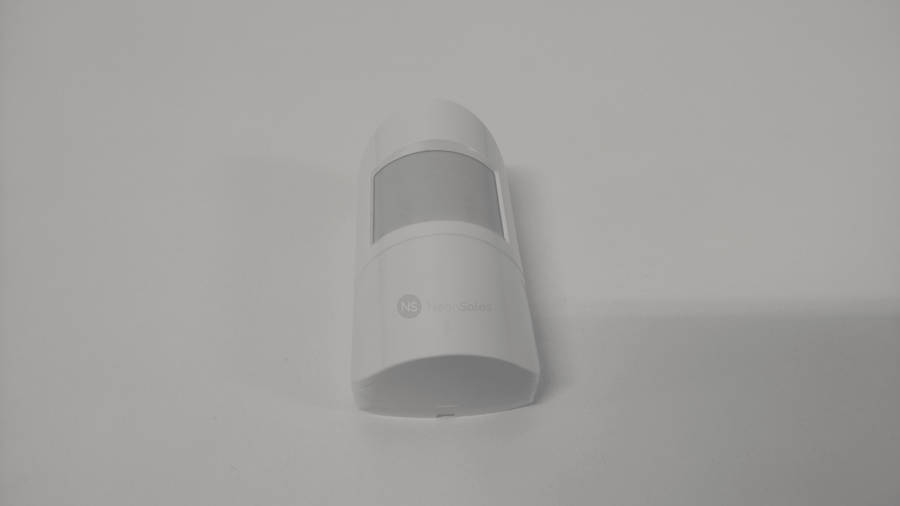

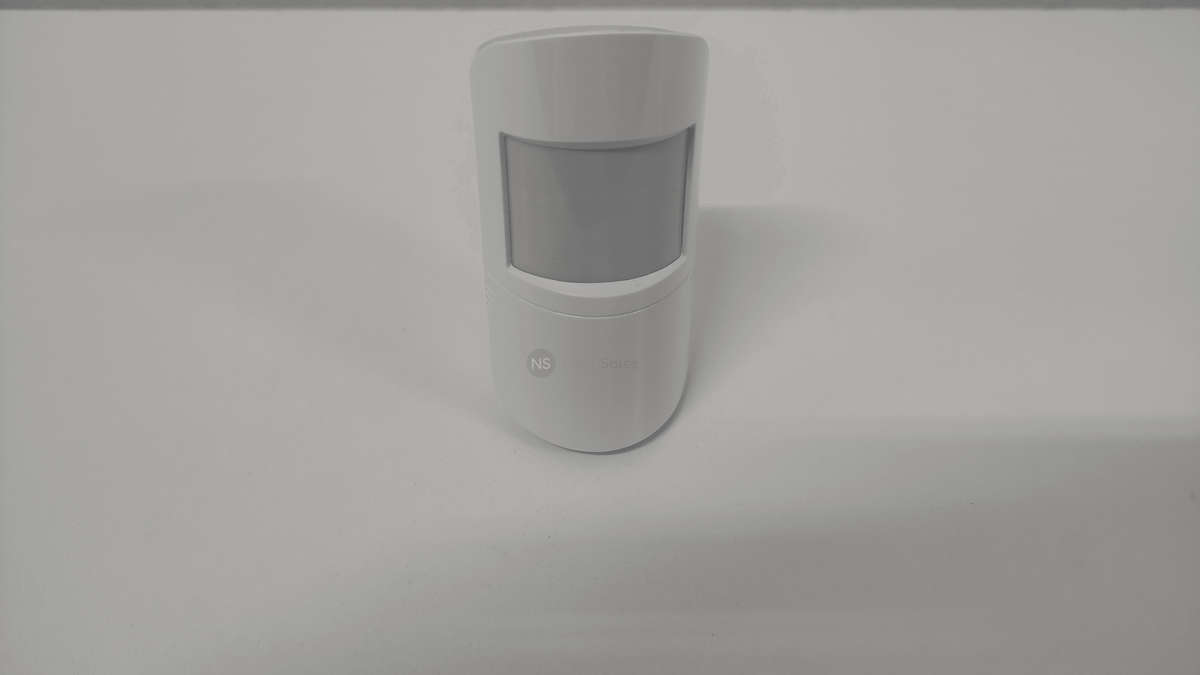

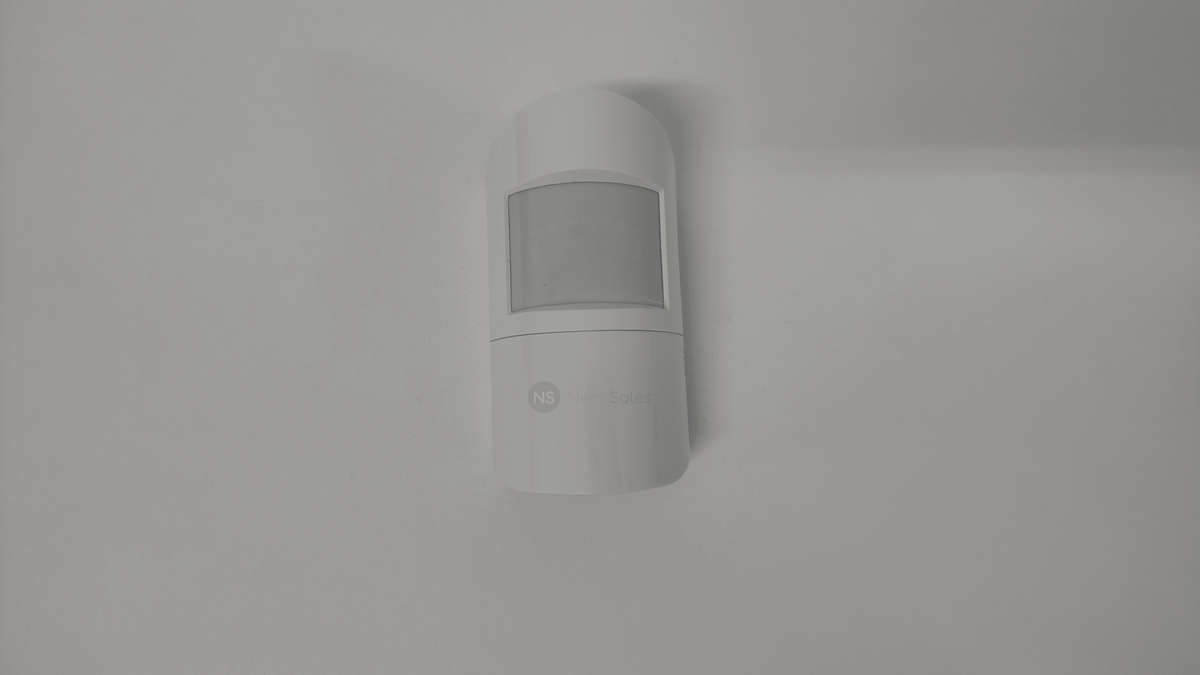

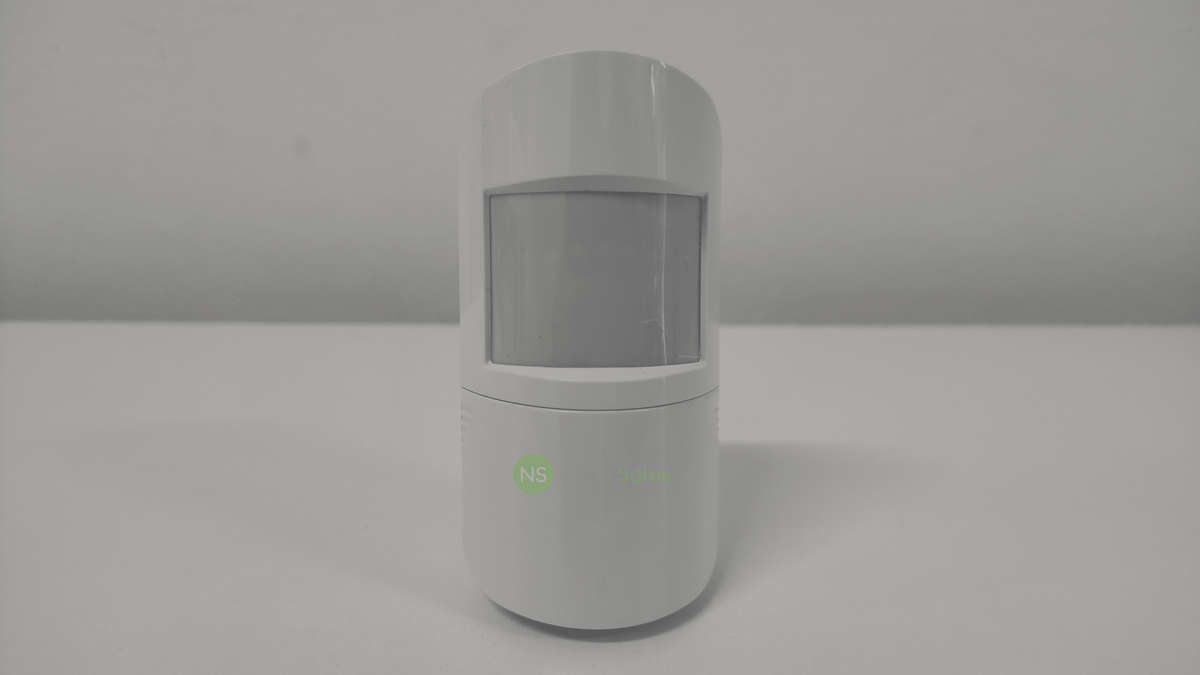

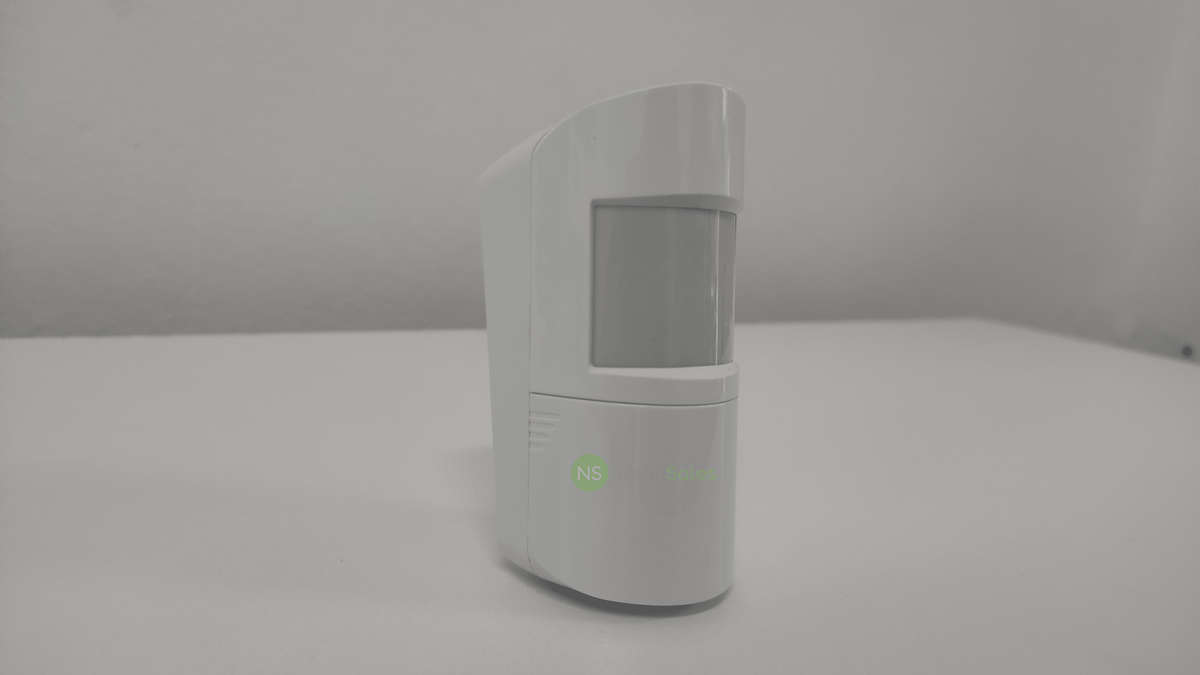

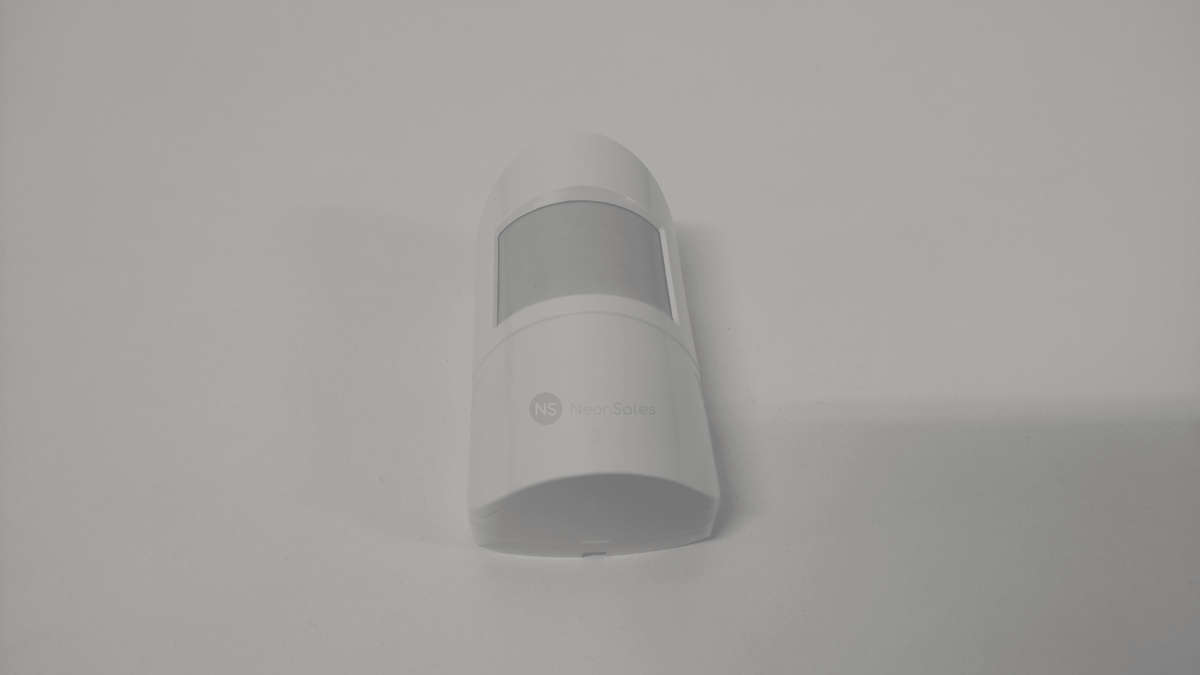

IDS MOTIONSENSE WIRED INDOOR PIR

The IDS MotionSense Wired PIR has a 95 degree angle and 15m detection range, the PIR is smaller than other ones made by IDS which makes it compact and easier to put in places indoor.

It has a small pet friendly feature which is intended to be 15kg, recommended that pets less than 15kg will be appropriate using this PIR

Here are some of the features below :

• 15m detection range with 95° angle

• Unique and convenient front access for configuring and wiring the sensor

• Small pet and rodent immunity (15kg max.)

• High EMI/EMC rejection

• Integrated and selectable 3K3 termination for easy wiring

• Selectable LED indication

• Configurable High/Low sensitivity and pulse counts

• Power input filtering provides protection against transients

• Compact size with ample wiring space

• Mountable on flat surfaces or in corner

• Optional swivel bracket for both ceiling or wall mounting

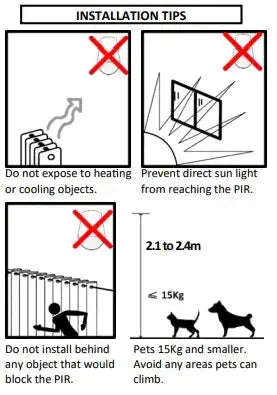

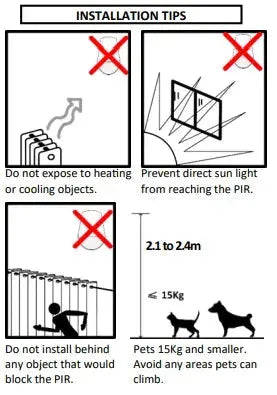

Here illustrated are installation tips to consider

Technical Specifications :

Operating Voltage : 8 — 18Vdc

Current : < 15mA

Alarm Output : Normally Closed

Alarm Period : ± 2 seconds

Tamper Output : Normally Closed

Temp Range : -10° C to +55° C

Pulse Count : 2 or 4

Viewing Angle : 95°

Mounting Height : 2.1m — 2.4m

"Warmup" Period : ± 45 seconds

Detection Range : up to 15m

What's Included :

1 X IDS MotionSense Wired Indoor PIR
