IDS X64 - 64 Wired Zones Alarm Kit:
This fully expandable up to 64 Zone Alarm kit includes 2 x Outdoor Beams for added protection where needed most. Intruders will be caught before they enter your home or business premises. Many other indoor and outdoor accessories can be added on to this system to meet your customized needs & requirements.
IDS is a household name is quality alarms systems.
This X64 Kit is perfect for building a complete system, as per your custom requirements up to 64 Zones. All wired contacts and PIRs both Indoor & Outdoor is compatible with this panel (ie: Takex, Optex, Pyronix, etc).
The system can also be enable for Wireless transmission with the IDS Wireless accessories.
XSeries - 8 Zone on board expander module (Included in this Kit)
- Simple expansion from zone 9 to 16 for the X16 and X64 control panels
- 8 Wired, end-of-line supervised zone inputs
- Small footprint, easy install, plugs directly onto the motherboard
This expander module not only simplifies gardening tasks but also enhances water efficiency. As a result, it contributes to healthier plants and a thriving environment. With the Xseries 8 Zone Onboard Expander Module, transforming your outdoor space is easy and affordable.
The Hikvision DS-PDTT15AM-LM is a high-performance WIRED motion detector engineered for reliable indoor intrusion detection. Combining PIR (Passive Infrared) and microwave detection technologies, this dual-technology sensor significantly reduces false alarms while ensuring accurate motion recognition in demanding environments. This detector will work on most wired alarm panel brands.
Designed for professional security installations, the DS-PDTT15AM-LM delivers stable performance with intelligent signal processing and strong resistance to environmental interference. Its sleek, compact housing allows for discreet installation in residential, commercial, and office settings without compromising coverage or aesthetics.
Key Features & Benefits
-
Dual-Technology Detection (PIR + Microwave): Enhances accuracy and minimizes false alarms caused by temperature changes, airflow, or environmental noise
-
Wide Detection Range: Up to 15 meters, ideal for medium to large indoor spaces
-
Advanced Anti-Interference Design: Reliable operation in complex indoor environments
-
Wired Connectivity: Stable signal transmission for professional alarm systems.
-
Modern, Low-Profile Design: Blends seamlessly into any interior setting
-
Ideal for Professional Installations: Suitable for homes, offices, retail spaces, and commercial facilities
-
Weatherproof
-
Heavy duty design
-
Adaptable coverage
-
Flexible installation
-
Easy setup
Hikvision Wired Internal 18m PIR detector
Key features:
- Modern design - Delivers a small and sleek detection solution; providing a modern yet unobtrusive finish to complement any room.
- Detection range - Up to 18m volumetric detection coverage, the Ellipse is the ideal solution for any small to large indoor rooms and spaces.
- Digital temperature compensation Digitally adjusts its sensitivity to maintain its specified range when the background temperature is close to body temperature.
- Automatic sensitivity - self-adapts to changing environmental conditions to maintain stability and intruder catch performance.
- 3D optics - Improves the detection of moving targets; ensuring more precise signals can be received from the PIR by enabling the perfect focusing of the infra-red signal onto the pyro-electric sensor.
- Creep-zone protection - covers the blind spot area directly below it, where an intruder may have otherwise avoided detection.
- Selectable EOL resistors - incorporates selectable alarm resistor values of 1K, 2K2, 4K7, 5K6 and 8K2, as well as tamper resistance values of 1K, 2K2, 4K7 and 5K6; catering for most control panels on the market.
- Wall and ceiling mount options - can be fitted at a mounting height of 1.8m to 2.4m . There is also a ceiling mount option available if required.
- Anti-insect interference - Protects the detector from possible insect infestation, as well as shielding air movement in front of its pyro-electric sensor and protecting against adverse reflections from inside the detector housing.
- Wide voltage - 9 to 16 V wide voltage adaptation with polarity reverse connection protection
- IFT technology - automatically adjust the upper and lower alarm trip thresholds when exposed to electromagnetic or electrical interference and shift the thresholds before the detector goes into false alarm.

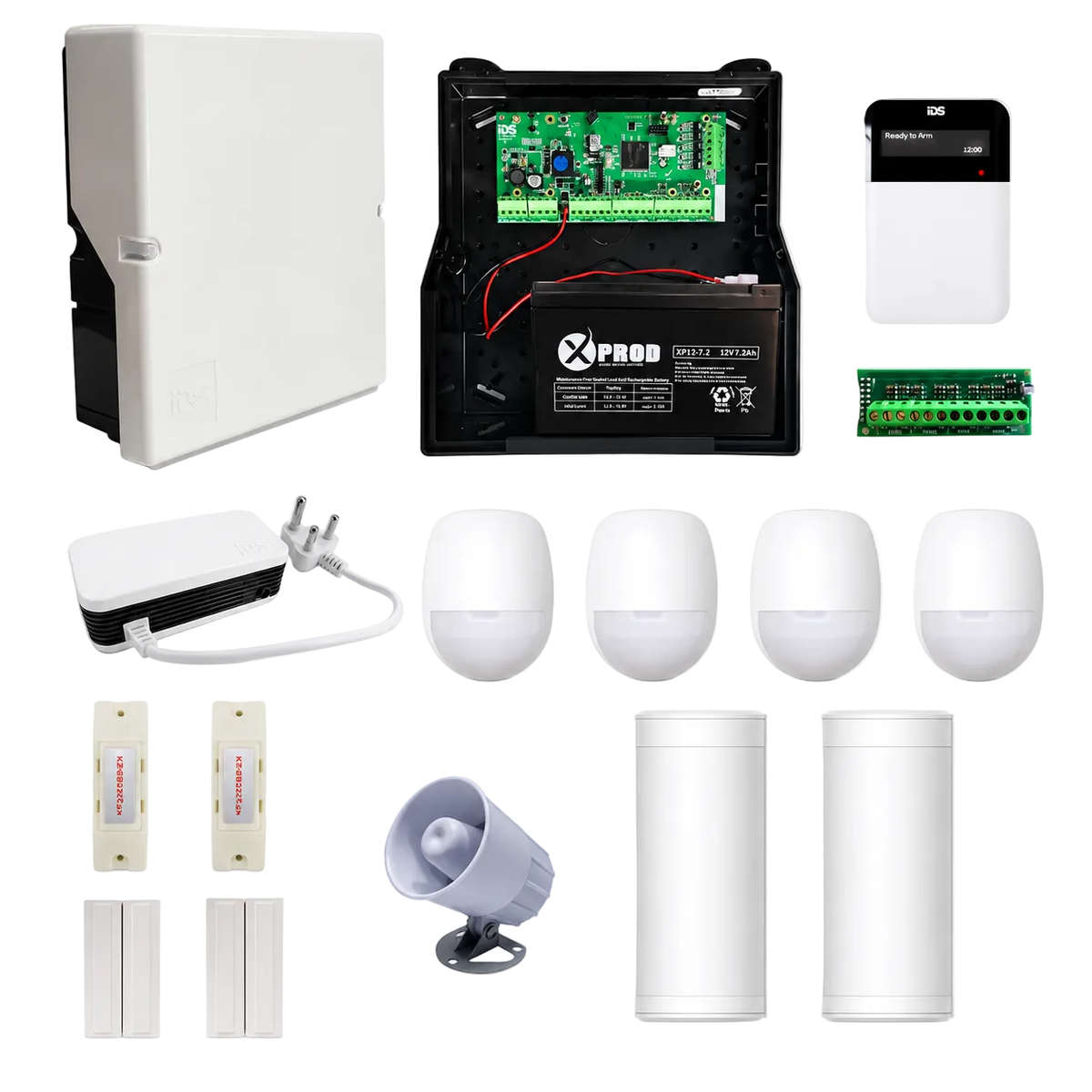

What is in the Box:
- 1 x IDS X64 8 wired zone control unit (expandable to 64 wired zones / 16 wireless zones)
- 1 x X-Series wired 64 zone LCD keypad
- 1 x 24 Volt transformer

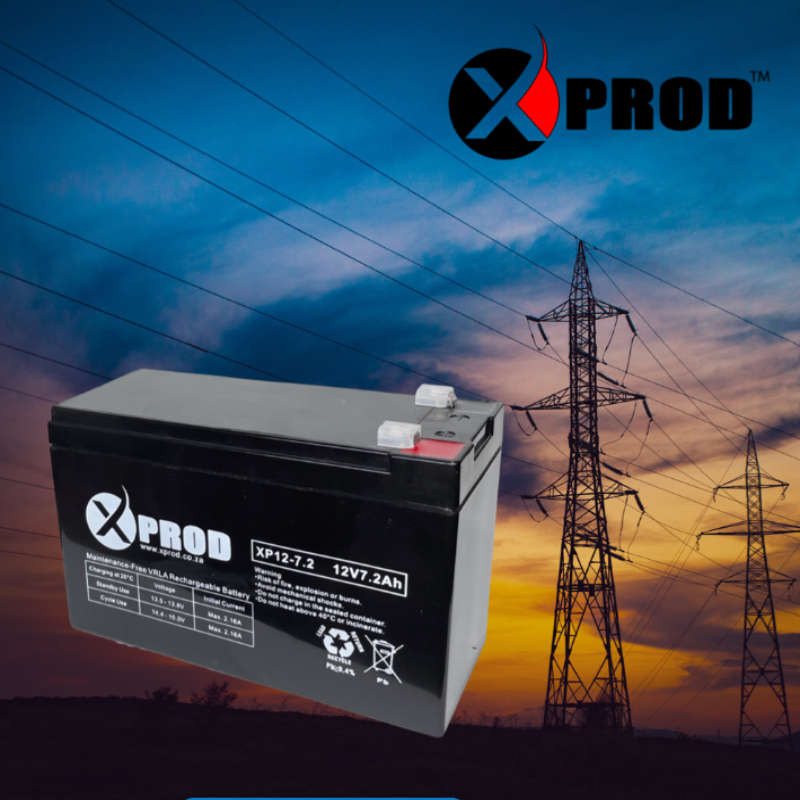

- 1 x XPROD 12 volt 7.2 Ah Sealed Lead Acid battery
- 1 x 15watt siren
- 1 x IDS 8 Zone Expander
- 4 x Hikvision Wired 18m PIR
- 2 x Hikvision Wired Triple Signal PIR Outdoor Detector
- 2 x Panic Buttons
- 2 x White Door Contacts
