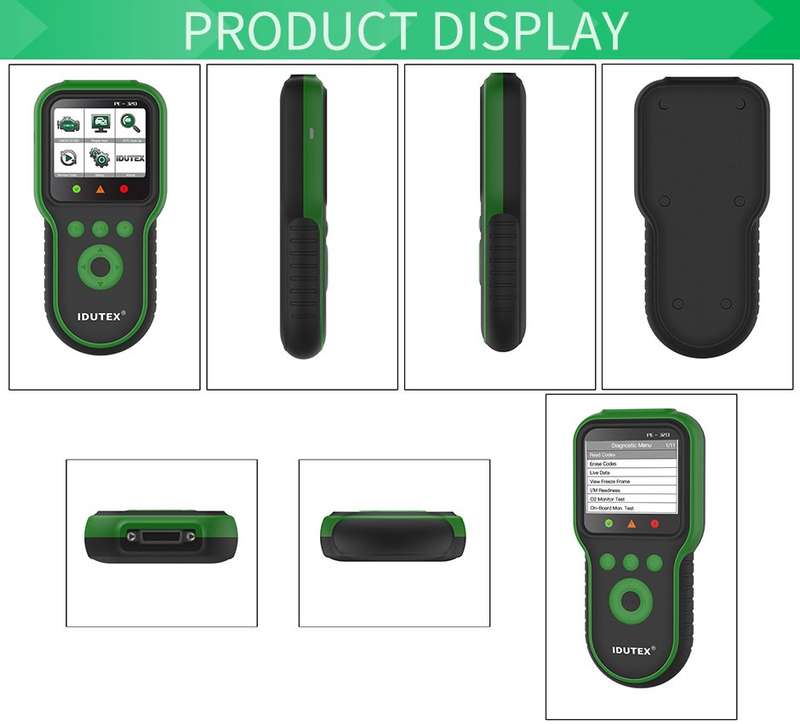

iDutex PE320 CAN OBDII / EOBD Engine Enhanced Code Reader

SHIPPING 5 TO 10 WORKING DAYS ON ITEMS OUT OF STOCK

The IDUTEX PE320 CAN OBDII / EOBD Engine Enhanced Code Reader is a new type OBDII scan tool which designed and developed by IDUTEX for users to work on all OBDII compliant vehicles, stronger than PE310 which supports DTC look up and data review, with the portable 2.83'' TFT color display and hot key for I/M readiness, it can be the best ideal handed code reader.

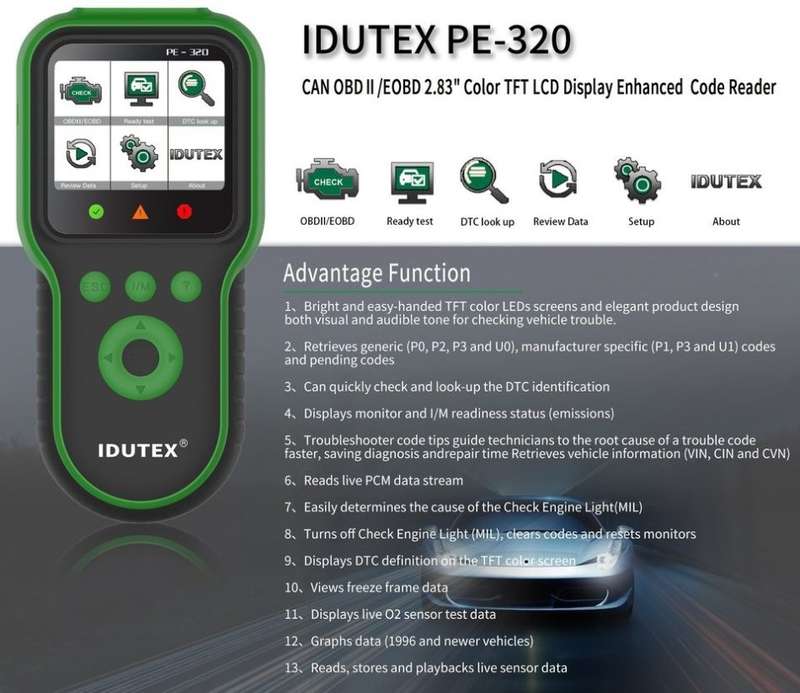

Advance Functions:

• Bright and easy-handed TFT color LEDs screens and elegant product design both visual and audible tone for checking vehicle trouble.
• Retrieves generic (P0, P2, P3 and U0), manufacturer specific (P1, P3and Ul) codes and pending codes.
• Can quickly check and look-up the DTC identification.
• Displays monitor and I/M readiness status (emissions).
• Troubleshooter code tips guide technicians to the root cause of a trouble code faster, saving diagnosis and repair time Retrieves vehicle information (VIN, CIN and CVN).
• Reads live PCM data stream.
• Easily determines the cause of the Check Engine Light (MIL) Turns off Check Engine Light (MIL), clears codes and resets monitors.
• Displays DTC definition on the TFT color screen.
• Views freeze frame data.
• Displays live O2 sensor test data.
• Graphs data (1996 and newer vehicles)
• Reads, stores and playbacks live sensor data.
• Lifetime free updates via official website.

SUPPORT MOST 1996 AND NEWER OBDII COMPLIANT VEHICLES:

Support Protocols:

ISO 9141-2, ISO 14230 (KWP), ISO 15765 (CAN), SAE J1850 (PWM), SAE J1850 (VPW)

Specifications:

• Product:          PE320
• Display:            TFT Colour Display (230 x 240 dpi)
• Operating Temperature:    0 to 60  (32 to 140F)
• Storage Temperature:        -20 to 70 C (-4 to 158F)
• External Power:                     8.0 to 18.0 V power provided via vehicle battery.
• Length / Width / Height:      175mm x 83mm x 25mm
• Weight:     0.18kg with wire.

 Package List:

• Main Unit PE320.
• Main OBDII Cable.
