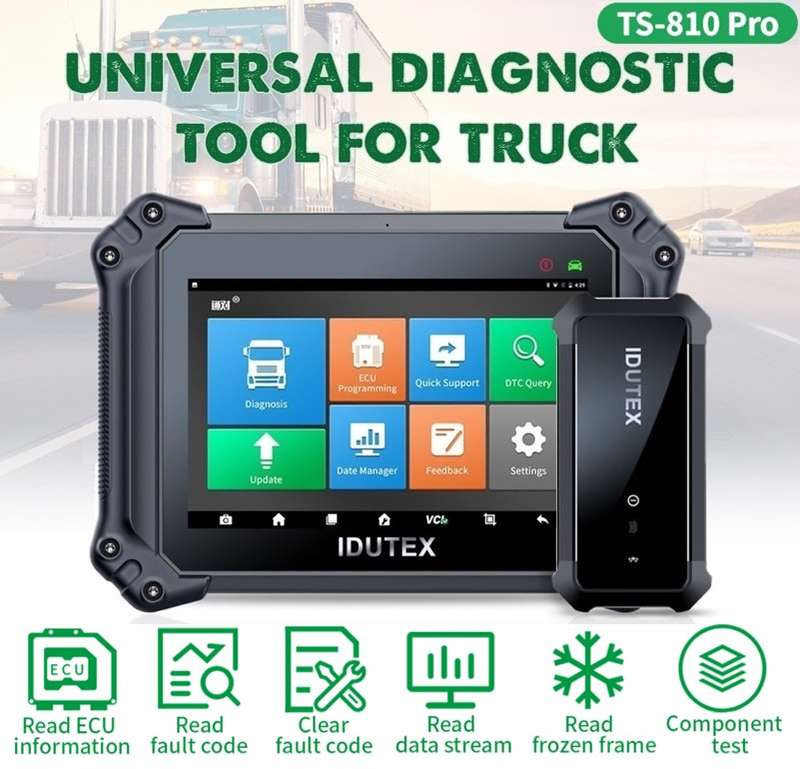

IDutex TS-810 Pro Advanced Heavy Duty Truck Diagnostic Tool with Special Functions
The IDutex TS-810 Pro is an Advanced Android based brand new-generation overall diagnostic tool for heavy duty trucks and commercial vehicles and machineries. With 8 -inch high-qualified industrial diagnostic tablet, in which software covering more trucks, buses, machineries from home and abroad with extensive diagnostic functions. Featuring new diagnostic experience and cost performance, it can be a better choice for all users.
Features:
- Cover a wide range of diesel vehicles, with many categories.
- Wider and deeper diagnostic function with stable performance, complete range of action test.
- ABS, DPF rapid comprehensive diagnosis.
- Cummins ECU original data Flashing.
- Bosch ECU data read.
- Cummins automatically matches.
- Support Cummins, Bosch self-identification.
- Powerful Exhaust aftertreatment.
- Support calibration functions.
- Automatically save original file data while commins ECU programming.
- Stable and fast data writing.
- Frequent online upgrade.
- Updates: 2 Years free updates.
- Other valuable and completed functions for China trucks.
- Include many machinery and agriculture vehicles.
- Languages: Support 11 Languages Namely: English, French, German, Spanish, Russian, Italian, Portuguese, Dutch, Japanese, Polish and Korean.
Basic Functions:
- Read ECU Info.
- Read DTCs.
- Erase DTCs.
- Clear Learning Value.
- Actuation Test.
- Read Freeze Frame Data.
Special function: (Functions may differ from make and models)
HD Special Functions Include:
- OEM level regeneration.
- Injector coding.
- Injector cut off.
- DPF Aftertreatment Leak Test & Reset functions.
- EGR Reset on heavy trucks and medium trucks.
- Turbo Charger Calibration & Activation (Required for Turbo Replacement)
- Steering Angle Reset.
- VGT Electronic Actuator Installation & Calibration.
- Low & Max Vehicle Speed Adjustment.
- Idle Speed Adjustment.
- Fan Override Test.
- Maintenance Reset.
- Cylinder Performance test.
- SCR Performance test.
- SCR/DEF Bi-Directional Controls.
- Cooling Fan Override test.
- ECU Flash.
and much more added on a weekly basis as part of your software subscription!

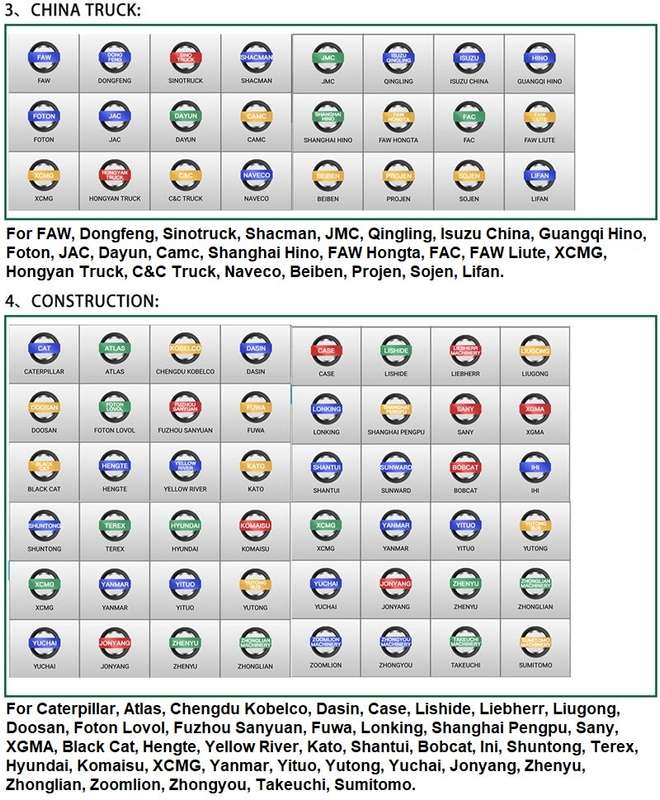

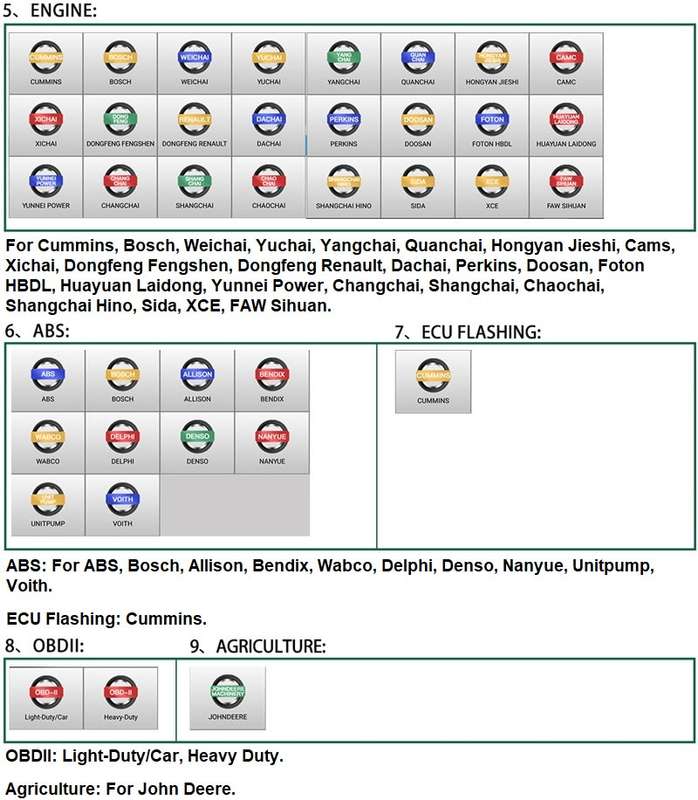

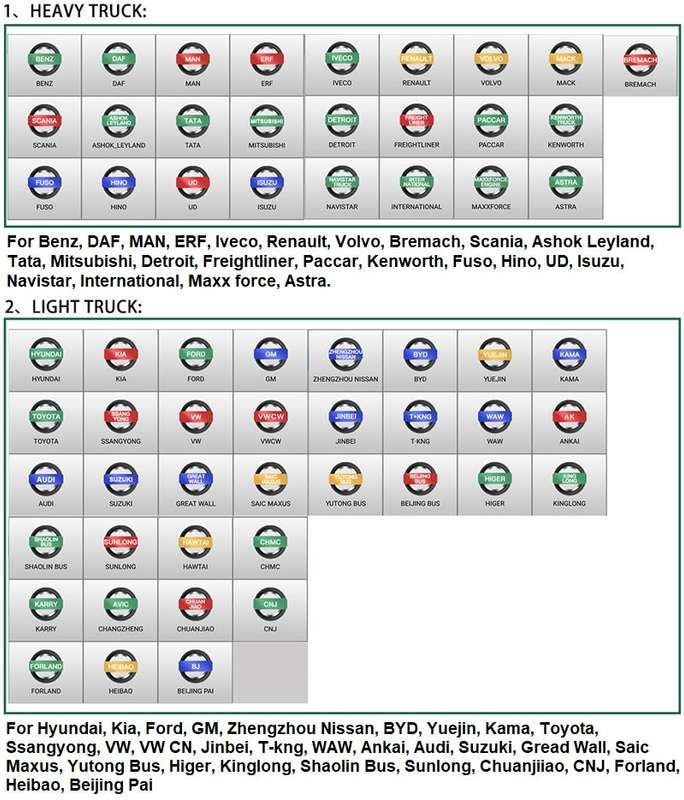

Coverage List:
Supporting Protocol: ISO 9142-2, ISO 14230-2, ISO15765-4, ISO14229, K/L line, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middle speed, Low speed and Single wire CAN, SAE-J1939, SAE-J1708, SAE-J1587, RS232.
Specifications:

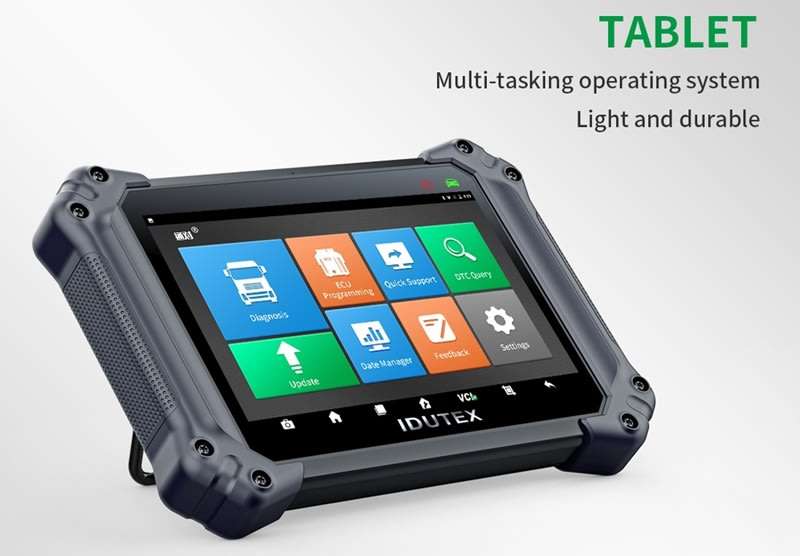

- Monitor: 8.0-inch IPS Multi-touch Capacitive Touch Screen with 800*1280 resolution.
- Operating system: Android 10.0 supports multiple languages.
- Processor: Quad-core Cortex-A53 2.0GHz.
- GPU: G52 3EE MC1@800MHz.
- Memory RAM: 2G LPDDR4.
- Storage ROM: 32GB EMMC.
- Camera: Rear camera 5.0 Megapixel, AF with Flashlight.
- Battery capacity: 8000 mAh 3.7 V lithium-polymer battery; battery life: 10 hours.
- Audio: Dual speaker; Microphone.
- Interface configuration: USB, TF card slot (expandable 64G), Type-C, HDMI.
- Network Interface: WIFI 802.11 b/g/n/ac Support Hot spot/ 2.4/5GHz.
- Bluetooth: Bluetooth 5.0.
- Input voltage: 8-30V.
- Communication method: Bluetooth or USB.
- Operating temperature: -10 to 70 degrees (14-158 degrees Celsius), relative humidity: <90%
- Storage temperature: -30 to 120 degrees (-22 to 248 degrees Celsius), relative humidity: <90%.

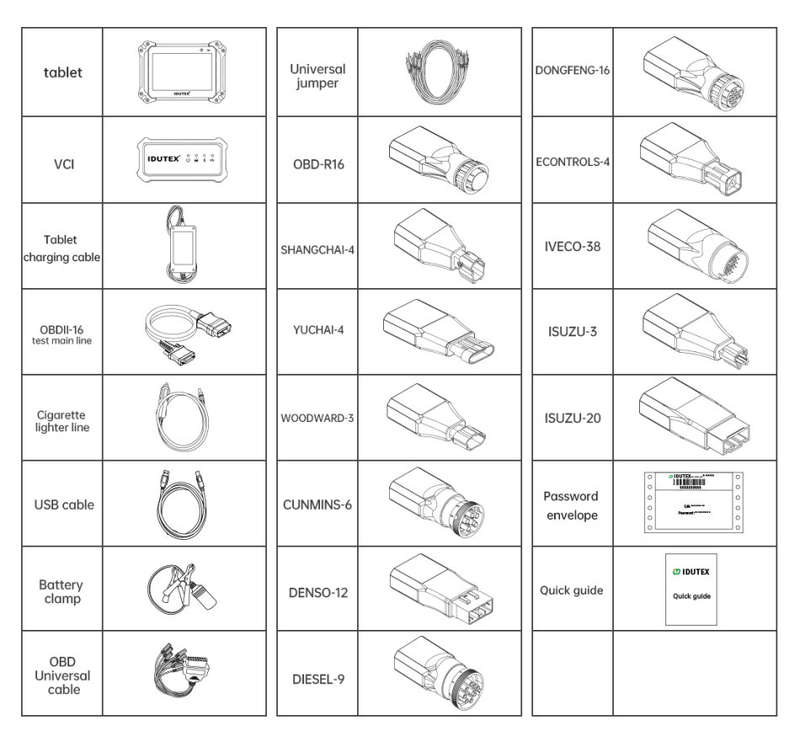

Package List:
