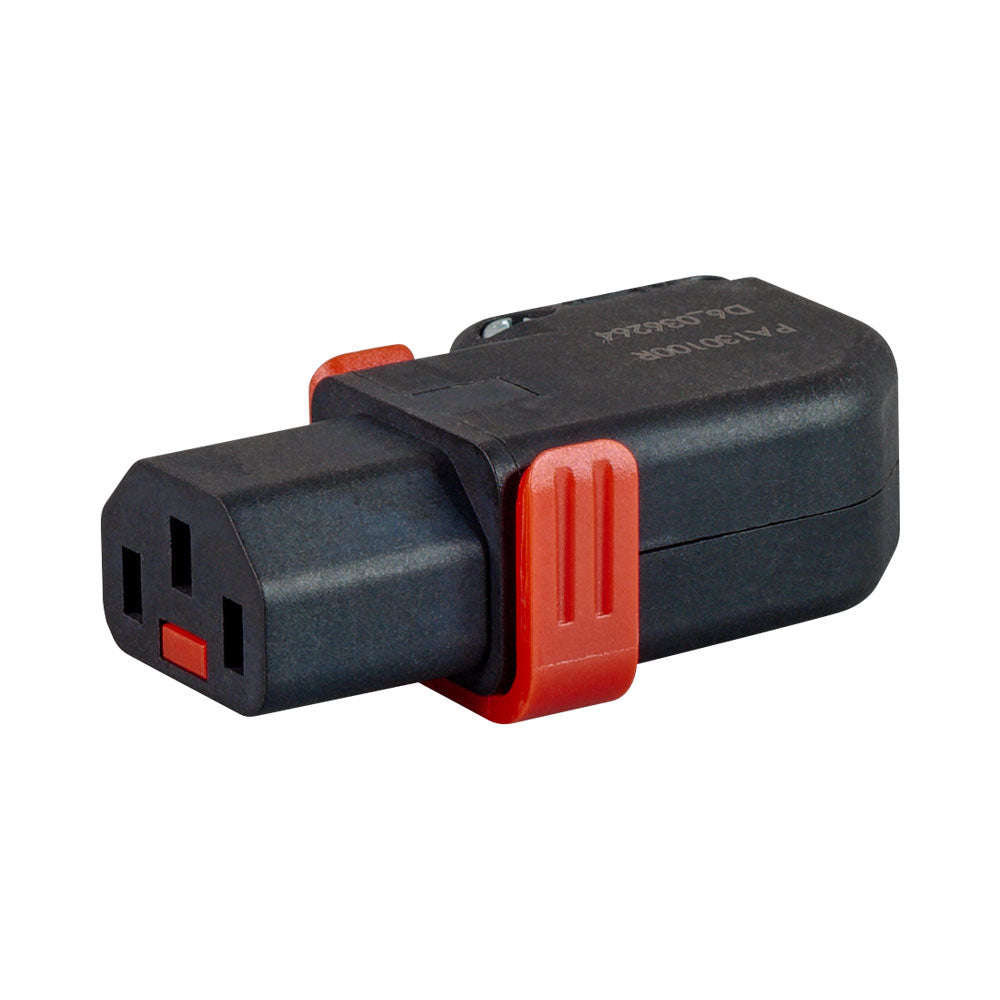

FEATURES Lockable IEC C13 Connector - Prevents accidental power loss Right-Angled Design - Perfect for tight rack and cabinet installations Rewireable Construction - Easy cable termination and maintenance Anti-Vibration Locking Mechanism - Stays connected in high-movement environments Easy-Grip Release Tab - Quick, safe disconnection when needed Dual-Screw Housing Design - Slotted and cross-head screws allow easy installation with common tools Cold-Condition Rated Appliance Inlet - Designed for reliable performance in low-temperature environmentsSPECIFICATIONSElectrical Ratings Rated Current and Voltage: 10A Max. @250V Dielectric Strength: 1.5kV Max. Withdrawal Force: >100NMaterials Outer Body and Chassis: Nylon (PA66), LSZH, RAL9004 Signal Black Cable Restraint: Nylon (PA66) Housing Screws and Cable Restraint Screws: Steel, Nickel Plated Lock Pivot Lever: Polycarbonate Red Handle: Polycarbonate LSZH, RAL3020 Traffic Light Red Terminal Block and Sliding Terminal: Brass Terminal Screws: Steel, Yellow Passivated Spring and Locking Blade: Spring Steel (Locking Blade Zinc Plated)Terminal and Mechanical Terminal Capacity: 3-Core Cable, 1.5mm² Typical (up to 2.5mm² Max.) Torque Values: Terminal Screws: 0.4Nm, Strain Relief Clamping Screws: 0.3Nm Flammability Rating: Equivalent to UL94V-0 Protection Class: Suitable for Class I Appliances, Complies with IEC EN 61140Environmental Ambient Operating Temperature: 25°C Cold Condition Use: Suitable for Cold EnvironmentsPhysical Dimensions Overall Length: 60.4mm Body Width: 30.1mm Body Height: 21.1mm Connector Face Width: 22.7mm Pin Section Length: 21.1mmStandards and Compliance EN 60320-1:2015 (KEMA-KEUR File: 35-102059) UL 60320-1 (UL File E475619) CSA C22.2 No. 60320-1-11 AS/NZS 60320.1 (SAA File 151920)
