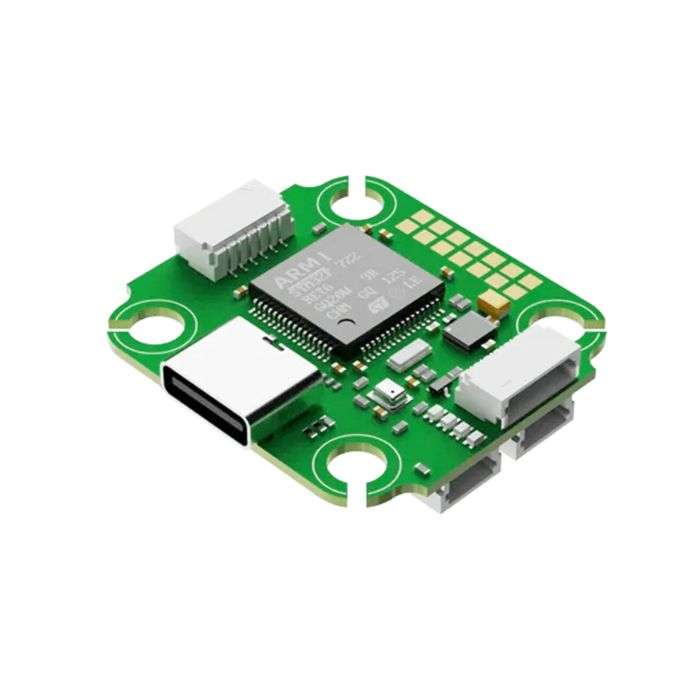

iFlight BLITZ Mini F7 V1.1 Flight Controller

iFlight BLITZ Mini F7 V1.1 Flight Controller

New 1 available
Only 1 left – grab it before it’s gone!
R2,373.75
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
IFL029
Bob Shop ID
682459403



  • Top Features:- DJI HD VTX CONNECTOR (PLUG-AND-PLAY / NO SOLDERING REQUIRED)
    - 2022/FEB: VERSION UPDATED TO V1.1 / GYRO CHANGED TO BOSCH BMI270 DUE TO AVAILABILITY & PRICE ISSUES WITH MPU6000.
    MCU:   STM32 F722BAROMETER:   DPS310FLASH:   16MB (BLACKBOX FLASH)MOTOR OUTPUTS:   4X (SH1.0 CONNECTOR)SMARTAUDIO / IRC TRAMP VTX PROTOCOL SUPPORTEDBEEPER PAD:   YESMOUNT PATTERN:   20X20 MM / 4MM PCB HOLE DIAMETER, SILICON GROMMETS FOR M3 SCREWSWEIGHT:   5GWIRING SUGGESTION:- UART 2 FOR A RECEIVER- UART 6 FOR ESC TELEMETRYTIPS2. SBUS, CRSF, ELRS, IBUS, DSM ETC... CAN BE CONNECTED TO ANY UNUSED UART_RX, WE SUGGEST YOU CONNECT TO UART_RX24. F.PORT CAN BE CONNECTED TO ANY UNUSED UART_TX, WE SUGGEST YOU CONNECT TO UART_TX2
  • 3. FRSKY SMARTPORT, TRAMP & SMARTAUDIO CAN BE CONNECTED TO ANY UNUSED UART_TX, WE SUGGEST YOU CONNECT TO UART_TX1
  • 1. F722 MCU HAS AN INNER INVERTER.
  • - UART 3/4/5 FOR GPS OR OTHER SENSORS THAT REQUIRE A SERIAL PORT
  • - UART 1 FOR VTX HD / ANALOG
  • DIMENSIONS:   30.5X27 MM
  • FIRMWARE TARGET:   IFRC-IFLIGHT_BLITZ_F722
  • LED CONTROLLER:   YES
  • I2C SERIAL:   SDA / SLA PADS
  • UARTS:   6
  • OSD CHIP:   AT7456
  • GYRO:   BMI270
  • Specs:

  • CHANGELOG:
  • - FC INDICATOR LEDS FOR VISUAL DEBUGGING
  • - IMPROVED CIRCUIT DESIGN, BETTER COMPONENTS AND LOWER ELECTRICAL NOISE!
