iFlight SucceX 50A Plus BLheli_32 2-6S 4 in 1 Brushless ESC Support Telemetry f

Package weight: 0.05 kg
iFlight SucceX 50A Plus BLheli_32 2-6S 4 in 1 Brushless ESC Support Telemetry for RC Drone
Specification:
Brand Name: iFlight
Model: SucceX 50A Plus
Item Name: 50A BLheli_32 2-6S 4in1 Brushless ESC
Version: Standard Version ( Without Heatsink ) ;
Deluxe Version ( With Heatsink)
Con. Current: 50A
Input Voltage: 2-6S
Firmware: BLheli_32
BEC: NO Weight: 14.4g

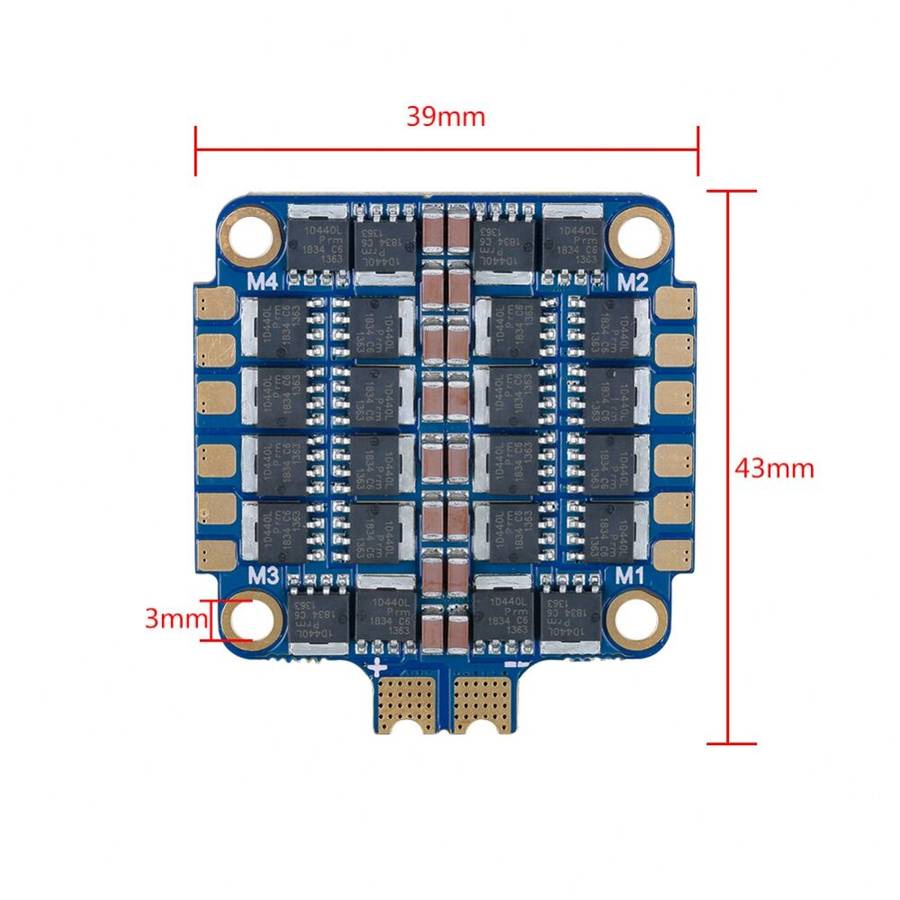

Mounting Hole: 30.5x30.5mm ( M3)
- Support Telemetry
- Support Oneshot, Multishot, DShot150/300/600 and DShot1200
Notice:
- Include one pc 35V 220uf Capacitor. Don't need use adtional one within 5S Lipo.
If use for 6S, MUST add above 50V Capacitor
- Better to use with iFlight SucceX series Flight Controller.
8 Pin from left to right, GND, BAT, M1, M2, M3, M4, CUR, TX
Therefore, if using other fc, pls double check whether if its' connector is compatible.

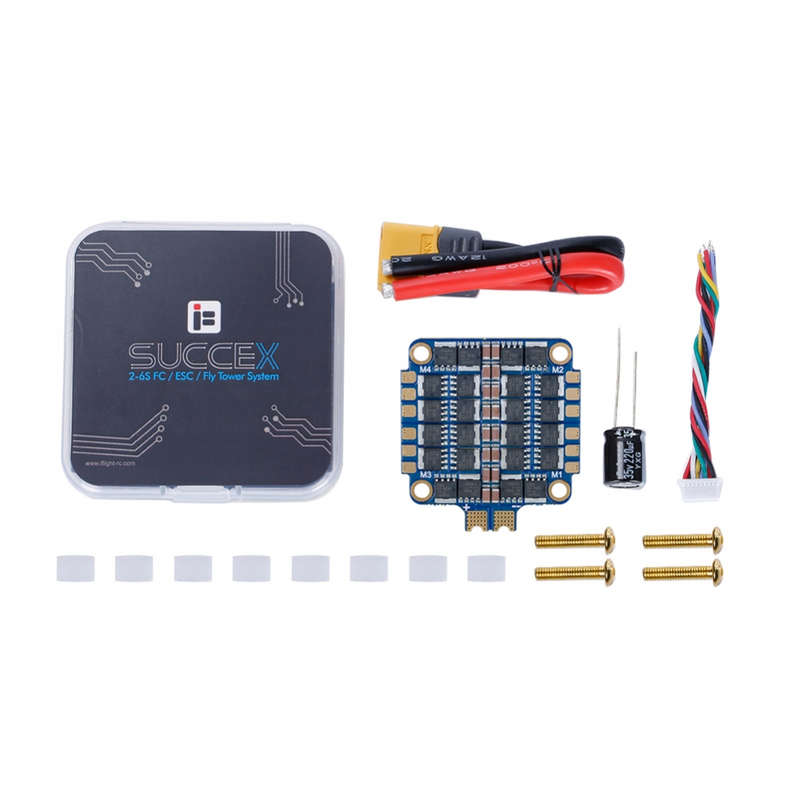

Package Included:
1x 50A 4in1 ESC
2x Cable
1x XT60 Connector Cable
1x bag of Screws
