Features:
Automatically adapt to the automobile models with OBD II (Bus Automatic Diagnostic System) interface.

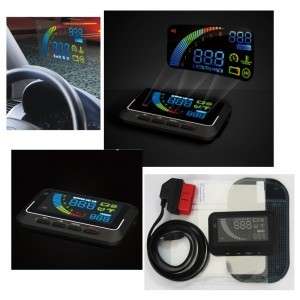

Display the engine speed, speed, voltage, temperature, tire pressure, fuel consumption and other information on the front windshield of the driver's eye level.

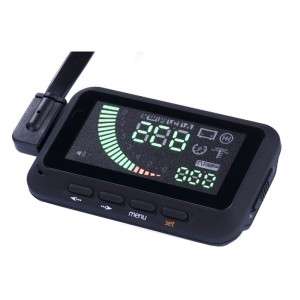

The precise, HD and high-brightness LED display, easy to read information.
The gear shift warning, conductive to learners.
The display brightness can be automatically or manually adjusted.
Plug-and-play.
100% Brand guaranteed and high quality.
Specification:
Brand: ifound
Display: LED Digital
Environment Temperature: -40c ~ +80c at atmospheric pressure 86-106KPa
Alarm Sound Level: >=30db
Working Voltage: 9V-16V(12V DC / 70mA)
Product Size: 9 * 5.6 * 1cm / 3.54 * 2.2 * 0.39in
Product weight: 51g / 1.79oz
Package Size: 18 * 11 * 6cm / 7.09 * 4.33 * 2.36in
Package Weight: 338g / 11.92oz
The information screen displays:
1. Speed: Number indicates the current speed.
2. Revolving speed: indicates the rotating status of the engine and the scale measured represents the speed reached.
3. Water temperature: When the temperature reaches 115 degree centigrade, alarm will be given automatically with alarm light on.
4. Tips for shifting gear: It will indicate to gear up to save fuel when the engine speed and car speed come to a certain ratio.
5. Tips for overspeed: It will flicker and alarm when exceeding the speed limit set up before.
6. Immediate one hundred kilometers/instantaneous fuel consumptionï¼ÂÂÂDisplay fuel consumption of one hundred kilometers when there is speed, in L/100km.
7. Unit of kilometerï¼ÂÂÂIn the international system of units, kilometer/hour is commonly used, in km/h.
8. Battery voltage: when the battery voltage is less than/reaches 12V, the caution light will light up to remind you.
9. Buzzer mark: pressing the switch button can turn on or turn off the sound of the buzzer.
Compatible with: (including but not limited)
BMW 3 series/5 series/6 series/7 series/X3/X5/X6
Audi A6/A7
Peugeot 508/3008
Lexus GS450h
Package includes:
1 * Host Machine of HUD
1 * OBD Data Line
1 * Reflecting Film
1 * Non-slip Mat
1 * English User Manual
