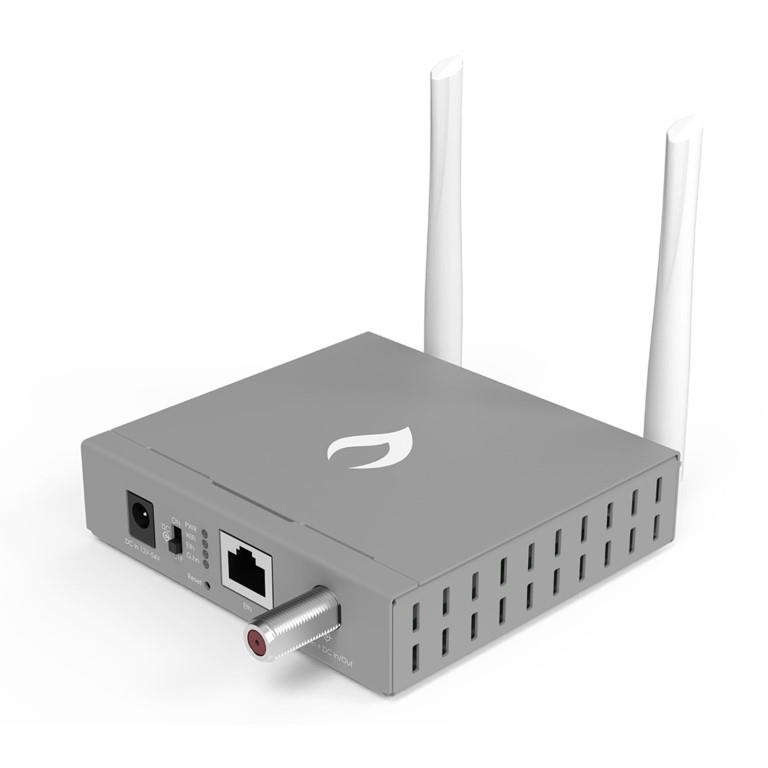

IgniteNet QLinq Indoor Cloud-Managed Gigabit Ethernet to Coax Bridge G-LINK-INDOOR
The IgniteNet GLinq is a powerful ethernet over coax converter that enables service providers to deliver gigabit speeds via existing and new coax cabling infrastructure. The GLinq system is ideal for both providing bandwidth to buildings with outdoor coax as well as delivering gigabit speeds within buildings using existing coax cabiling infrastructure. Operators can already easily deliver gigabit speeds to customers wirelessly using IgniteNet's 60GHz MetroLinq products - now they can also easily share that delivered capacity throughout the whole building. The unique GLinq + MetroLinq combination provides a clean, simple, fast installation of gigabit connections.
GLinq is available in two different models - an indoor and an outdoor versions.
Both the indoor and the outdoor models have an integrated 2.4GHz radio which can provide Wi-Fi connectivity as well as easy setup and management using the same device.
Up to 15 client converters can be connected to each GLinq master device (software configuration) for sharing gigabit connectivity throughout the building using coaxial splitters.
The GLinq also includes a DC jack and/or DC terminal block which allows each client to provide reverse power through the coax system and can be used to power the remote rooftop converter(s) and backhaul using the same coax system for both data and power. This is eliminates the need for a separate power circuit to be run to the rooftop to power the system.
GL-I-1GE-1C-XX - Indoor cloud-managed Gigabit Ethernet to Coax bridge with reverse power feed and integrated 2.4GHz Wi-Fi
Features
HIGHEST PERFORMANCE PHY DATA RATES Up to 2Gbps PHY rate Supports all G.hn baseband bandplans 25, 50, 100, 200 MHz
RELIABILITY AND ROBUSTNESS LDPC forward error correction provides enhanced FEC over all wire media Automated PHY block level error detection and retransmission
SECURITY 128-bit AES CCMP encryption End to End encryption pair wise keys Strict authentication rules
ENHANCED HARDWARE SUPPORT Enhanced Traffic handling Hardware packet inspection for IPv4 IGMP snooping and IPv6 MLD Hardware based Bandwidth limitation 8 levels of packet prioritized QoS Power Management
AVAILABLE INTERFACES 1000 Base-T Ethernet G. hn 2 Gbps coax PHY with F-type female connector
WI-FI FEATURES Supports Service Provider and Enterprise type networks Stand-alone or Cloud-controlled operating modes Bridged AP WDS mode 802.11b/g/n, 2x2 (2.4GHz) Supports up to 8 SSIDs per radio IEEE 802.11e Wi-Fi Multimedia (WMM-QoS) WPA,WPA2-PSK,WPA2-AES, PSK and Enterprise Admission control by client MAC address
RF PERFORMANCE (TX) 2.4 GHz: 25 dBm - 6Mbps, 18 dBm - 300Mbps
RF PERFORMANCE (RX) 2.4 GHz: -90 dBm - 6Mbps, -72 dBm - 300Mbps
ANTENNA INDOOR 2.4 GHz: 3 dBi omni-directional
LEDS Power, WiFi, Ethernet, G.hn
MECHANICAL Indoor: Temperature rating 0 to 50 C°/ 32 to 122 F Store temperature -40 to 70 C°/ -40 to 158 F Mounting options Wall
POWER Operation voltage 12 — 54 V Power consumption 6.5 W max DC jack (central pin 2.0 mm, diameter 5.5 mm) Screw terminal block (5 mm pin spacing) (outdoor model only) Power through coaxial cable optional Max current 2.5A on coaxial power system
