Product details

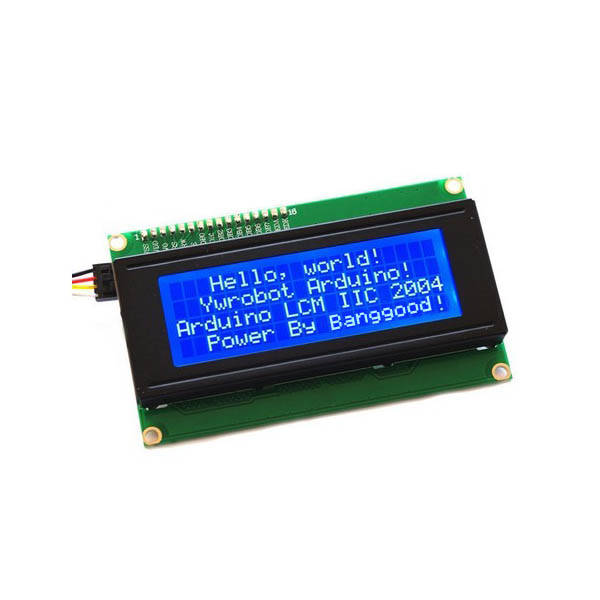

IIC / I2C 2004 204 20 x 4 Character LCD Display Module Blue For Arduino
Description:

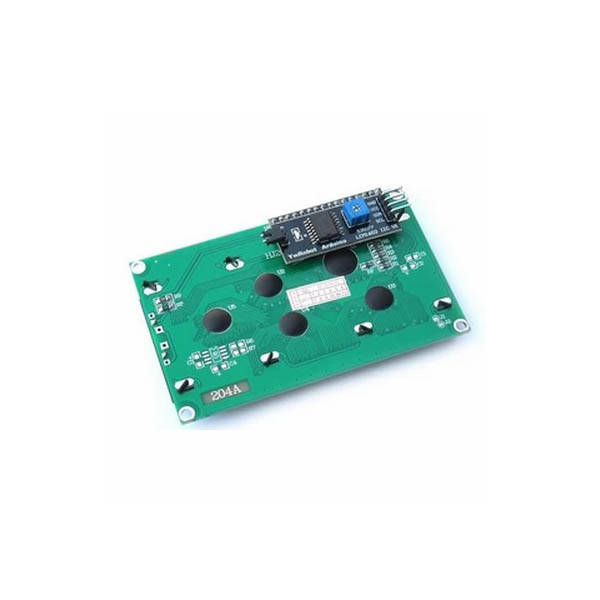

The IIC 2004 LCD display module is a 4 line 20 character LCD module not only set the contrast control knob selector switch also has a backlight and IIC communication interface. For Arduino beginners, not for the cumbersome and complex LCD driver circuit connection and a headache, the real significance of this LCD module will simplify the circuit, this module directly into the Arduino Sensor Shield V5.0 sensor expansion board IIC device interface can, GM 4P sensor connection cable, programmed through the Arduino controller, you can easily identify the slogan, sensor data records.
Specification:
Supply voltage: 5V
Interface: I2C
I2C address: 0x27 or 0x3F
Pin definition: GND, VCC, SDA, SCL
Contrast adjust: potentiometer
The module is a low-power consumption character LCD module with a built-in controller
The module can be easily interfaced with a MCU
Display format: 20 Characters x 4 lines
Fully assembled and tested serial LCD 20 x 4 module
White text, blue backlight
It is fantastic for Arduino based project
Size: 9.8 x 6 x 1.2mm
Package included:
1 x 2004 LCD display module
