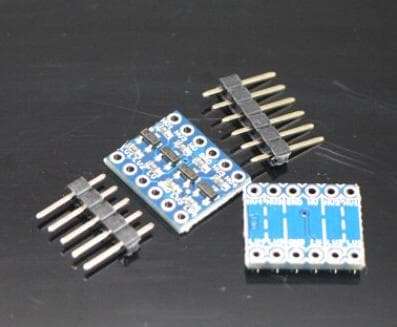

IIC I2C Logic Level Converter Bi-Directional Module 5V to 3.3V For Arduino***LOCAL STOCK***

The module features:

1, 4 channels of logic and high voltage low voltage logic two-way transformation

2, small module, 1.3 cm X 1.5 cm

3, module comes with 2 row 6 pin pin, welding

4, module compatible with bread plate, can be used directly put on the bread board

5, directions for use: the high voltage of 5 V low voltage of 3.3 V, for example)

HV connect 5 v power supply

LV 3.3 V power supply

GND connect power anode, both the power of the Commons


LVx input and output of 3.3 V TTL, 5 V TTL HVx input and output, and LVx TVx two-way interactions

If you've ever tried to connect a 3.3V device to a 5V system, you know what a challenge it can be. The SparkFun bi-directional logic level converter is a small device that safely steps down 5V signals to 3.3V AND steps up 3.3V to 5V at the same time. This level converter also works with 2.8V and 1.8V devices. What really separates this Logic level converter from our previous versions is that you can successfully set your high and low voltages and step up and down between them safely on the same channel. Each level converter has the capability of converting 4 pins on the high side to 4 pins on the low side with two inputs and two outputs provided for each side.

The level converter is very easy to use. The board needs to be powered from The two voltages sources (high voltage and low voltage) that your system is using The high voltage (5 V for example) to The 'HV' pin, low voltage (3.3 V for example) to 'LV', and ground The from The system to The GND pin.

Dimensions: 0.63 x 0.63 "(16.05 x 13.33 mm)

Package Included:

• 1 x IIC I2C Logic Level Converter Bi-Directional Module 5V to 3.3V For Arduino
