Description:

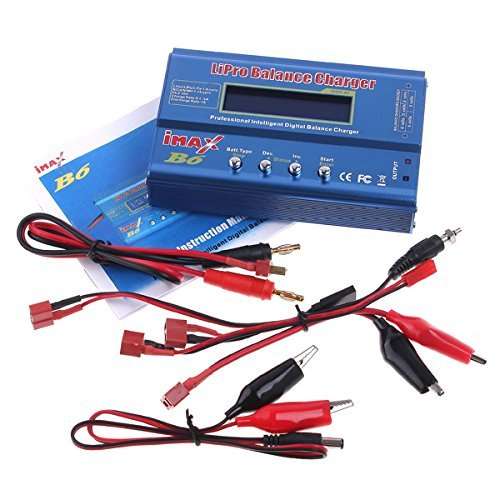

IMAX B6 is the new intelligent multifunction charger which can charge and discharge for Lion, LiPo, LiFe (A123), Pb, NiCd and NiMH batteries. It's all-powerful in a way.
Microprocessor controlled Delta-peak sensitivity.Individual cell balancing Li-ion, LiPo and LiFe capable Ni-Cd and NiMH capable
Large range of charge currents Store function, allows safe storage current, Time limit function
Data storage (Store up to 5 packs in memory) Input voltage monitoring.
Battery break in and cycling.Support new generation A123 system (LiFe) battery
RiteCharge iMax B6 is the small and upgraded version for well-known IMAX B6. Compared with B6, it is has new features and functions with its super compact size. Smaller size, bigger power. Compared with B6, the power and charge current are 20% up. RiteCharge iMax B6 is a high-performance, micro processor control charge/discharge station with battery management suitable for use with all current battery types, with integral equalizer for six-cell Lithium- Polymer (LiPo), Lithium-Ferrum (LiFe) and Lithium-Ion (LiIon) batteries; maximum 5A charge current and maximum 50W charge power.
Specifications:
?DC Input Voltage: 11-18V
?Charge Circuit Power: 50W
?Discharge Circuit Power: 5W
?Charge Current: Max. 6A
?Discharge Current： 0.1-2A
?LiPo/LiFe/Lilon Battery Cell Count： 1-6S
?NiMH/NiCd Battery Cell Count: 1-15S
?PB Battery: 2-20V
