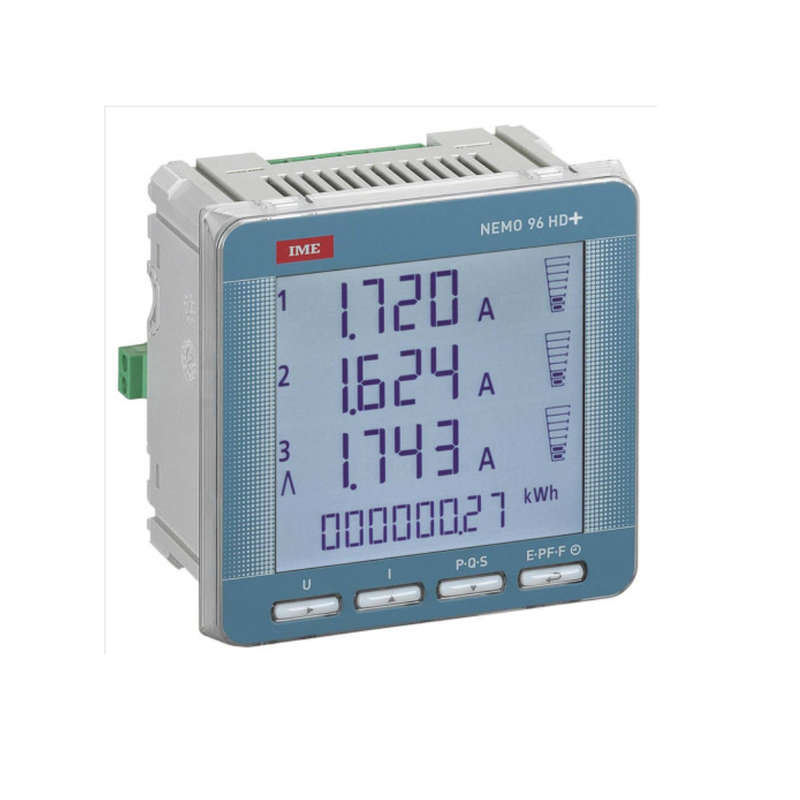

Manufacturer: IME
Features:
DIN 96 panel mounted
High-definition backlit LCD display
Single phase or 3-phase, 3 or 4-wire unbalanced load operation
Measured Voltage 80690V 50/60 Hz (phase to phase)
Plug-in extension modules
Programmable external CT-VT ratio
Active energy cl.0.5
Auxiliary Voltage:-
MF96021A Version 80265Vac/110300Vdc
MF96022A Version 1160Vdc
-/1A or -/5A CT Input selectable
Manufacturer: IME
Features:
DIN 96 panel mounted
High-definition backlit LCD display
Single phase or 3-phase, 3 or 4-wire unbalanced load operation
Measured Voltage 80690V 50/60 Hz (phase to phase)
Plug-in extension modules
Programmable external CT-VT ratio
Active energy cl.0.5
Auxiliary Voltage:-
MF96021A Version - 80265Vac/110300Vdc
MF96022A Version - 1160Vdc
-/1A or -/5A CT Input selectable
Details:
Displayed Parameters
Voltages
Currents
Active, Reactive, Apparent Power
Active, Reactive Energy
Power Factor
Frequency
Run Hour
THD / harmonics 50ยบ order
Harmonic analysis
Voltage and current crest factor
Phase angle between currents
Phase angle between voltages
Available Plug-in Extension Modules
RS485 communication
RS232 communication
MBUS communication
PROFIBUS communication
LONWORKS communication
BACNET communication
ETHERNET communication
Output analogue
Alarms
Neutral Current
Measure Temperature from Pt100
Pulse Output
I/O 2 Inputs SPST - 2 Outputs
I/O 2 Inputs 12-24Vdc - 2 Outputs
RS485 - Energy value storage
Radio communication
CONDITION:
Second-Hand
WARRANTY
Sold as tested & working with a 7-day satisfaction gaurantee, no further warranty provided.
PLEASE NOTE
This product has undergone testing to ensure that it is in a perfect working condition. Tested and working means that there is no further warranty provided and is meant for trade clients whom understand the risk in buying secondhand items without a warranty.
Second-hand Product Notice:
This product has been Second-hand and may not be in its original packaging.
This product may or may not come with original parts and accessories
There may be minor signs of wear and tear.
Images are for illustrative purpose only and may differ from the actual product.
Photos of actual product can be requested.
