ImmersionRC UNO5800 V4 5.8G AV Receiver GS-Link Dual Output
Description: User Manual
Brand Name:ImmersionRC
Item Name: 5.8G AV Receiver
Item NO.: UNO5800 V4Sensitivity: better than -90dBm
Audio: Stereo, Subcarriers on 6.0, and 6.5MHz
Modulation: FM, Audio and Video
Alarm: Low Battery, Programmable
Power Requirements: 6-13v
Power Consumption: ~300mA
Dimensions: 88x105x25mm
Weight: 202g
Features:32 Channel support, ImmersionRC/FatShark/Airwave, Boscam, Team Black Sheep, DJI

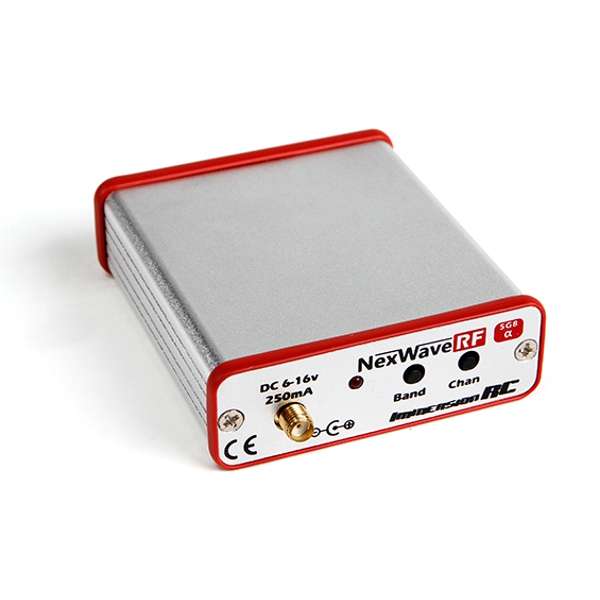

Exclusive high quality NexWaveRF receiver technology

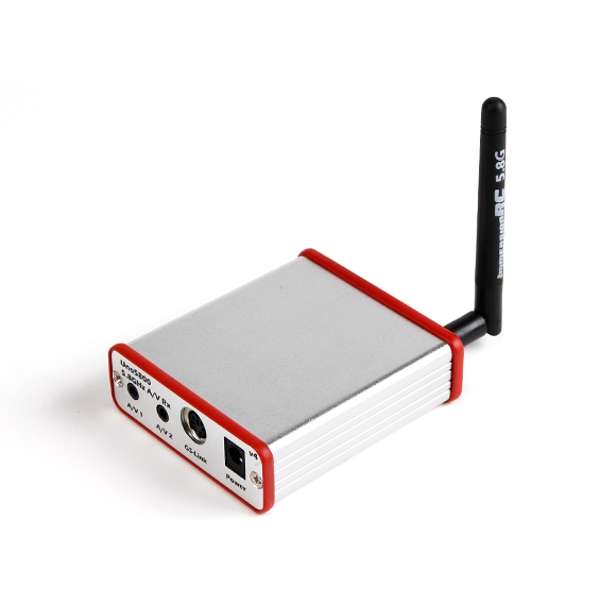

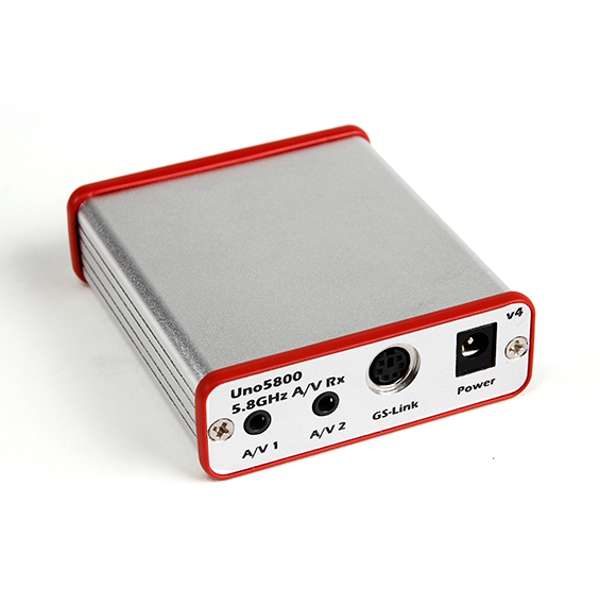

2 A/V output, for two viewing/recording devices
Single-button user interface, and remote control from the groundstation
GS-Link for single-cable connection to a groundstation
Not affected by 2.4GHz, or UHF R/C radios!
~1km range with 25mW CE-Legal transmitters
Frequency:Band 1: 5740, 5760, 5780, 5800, 5820, 5840, 5860MHz
Band 2: 5705, 5685, 5665, 5645, 5885, 5905, 5925, 5945MHz
Band 3: 5733, 5752, 5771, 5790, 5809, 5828, 5847, 5866MHz
Band 4: 5865, 5845, 5825, 5805, 5785, 5765, 5745, 5725MHz

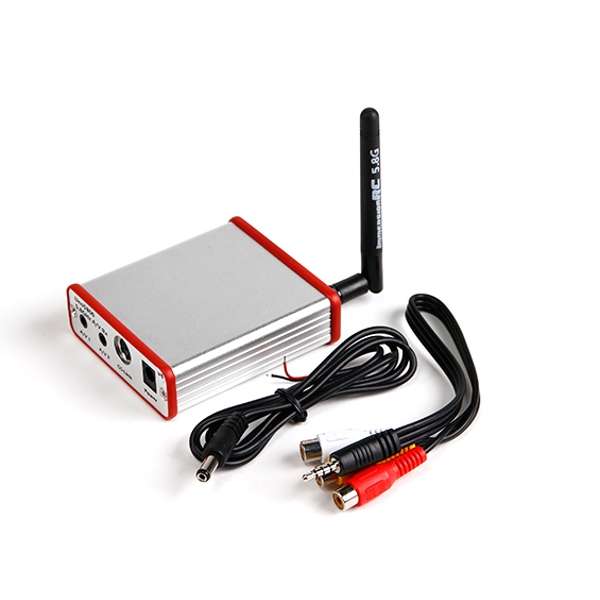

Package Included:
1 x Receiver
1 x Antenna
2 x Cable
