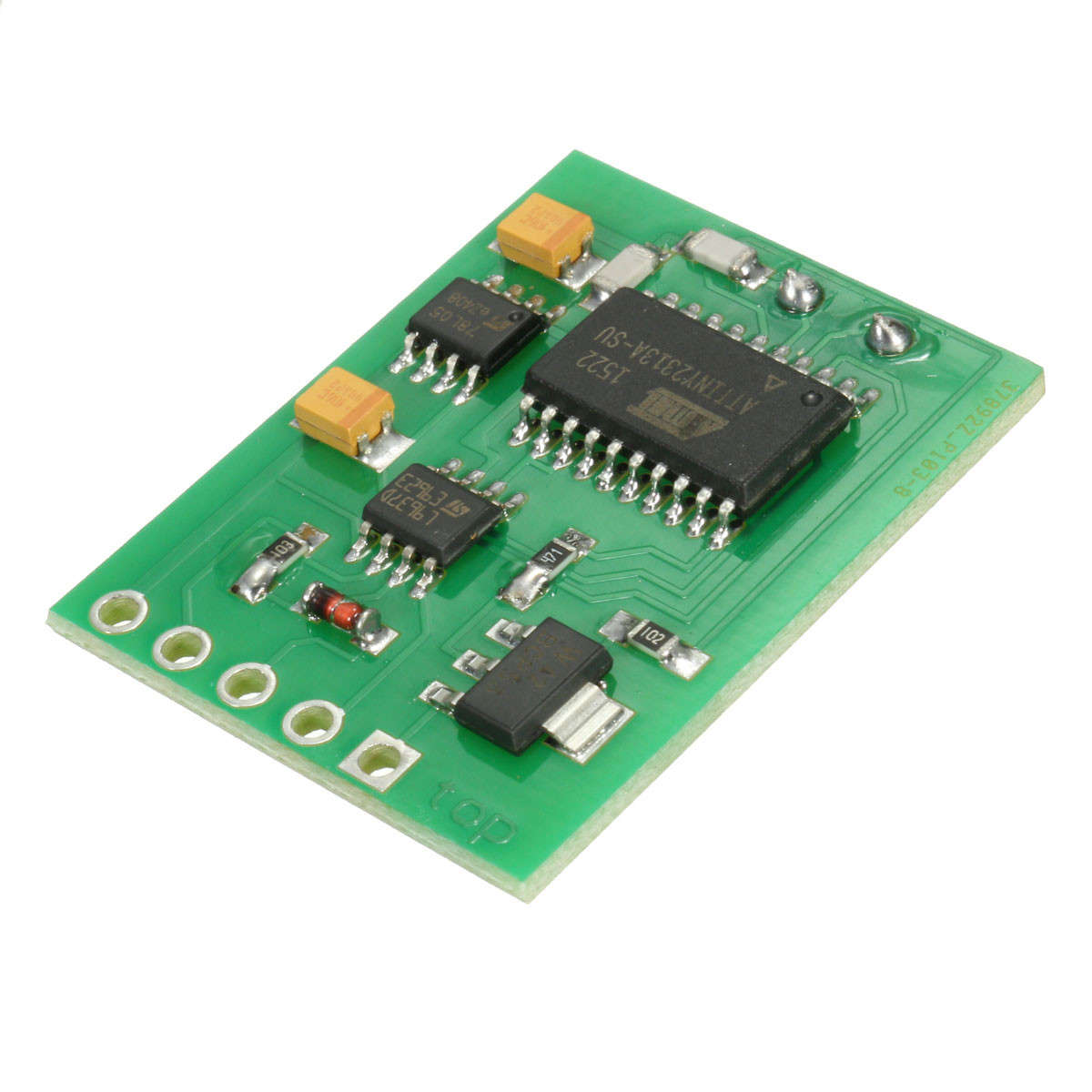

Package weight: 0.01 kgImmobilizer Emulator Circuit Unit For Yamaha Motorcycle Bike Scooter 2006-2009
Specification:
100% brand new

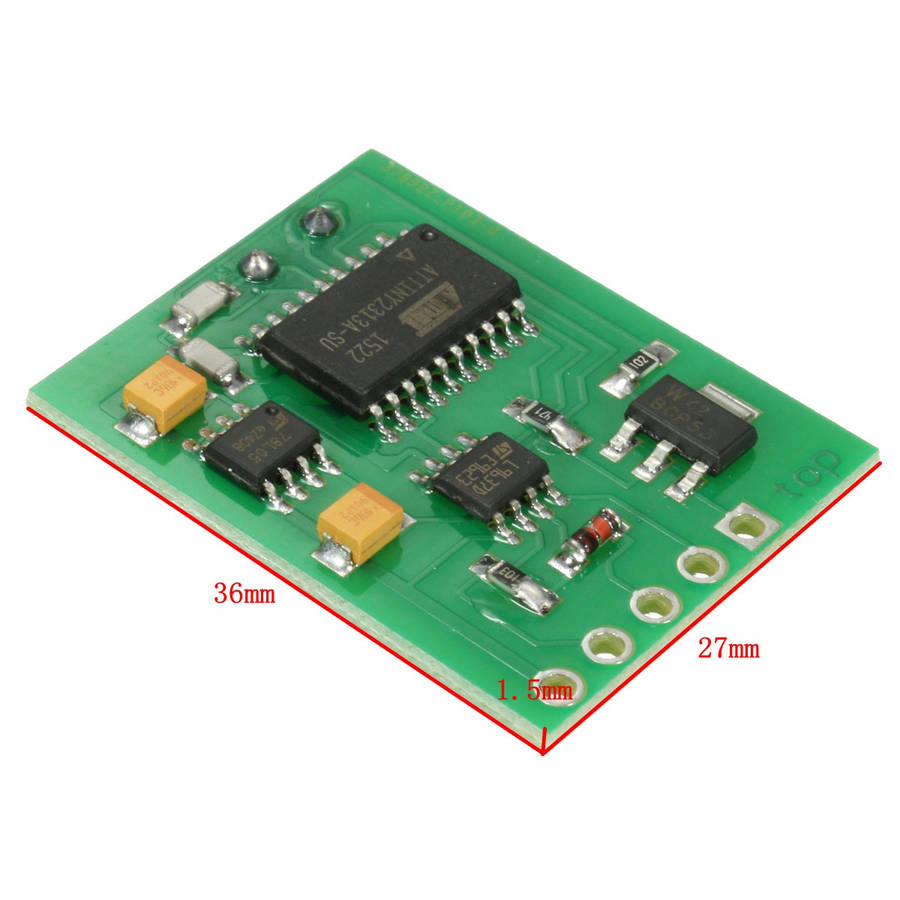

Size: As picture shown
Fitment: Works with all motorcycles and scooters Yamaha from 2006 to 2009
- Immobilizer emulator for Yamaha motorcycles and scooters.
- Does not require programming, but does require some soldering skills to connect the wires correctly.
- Emulates the regular Yamaha immobilizer, including the light-emitting security diode flashing on the instrument panel.
For emulator installation in the case of a regular immobilizer:
1. Remove glue hermetic from the immobilizer case.
2. Take out a PCB from immobilizer and desolder from it wires.
3. Connect the emulator according to drawing more low.
4. Insert the emulator into the immobilizer case.

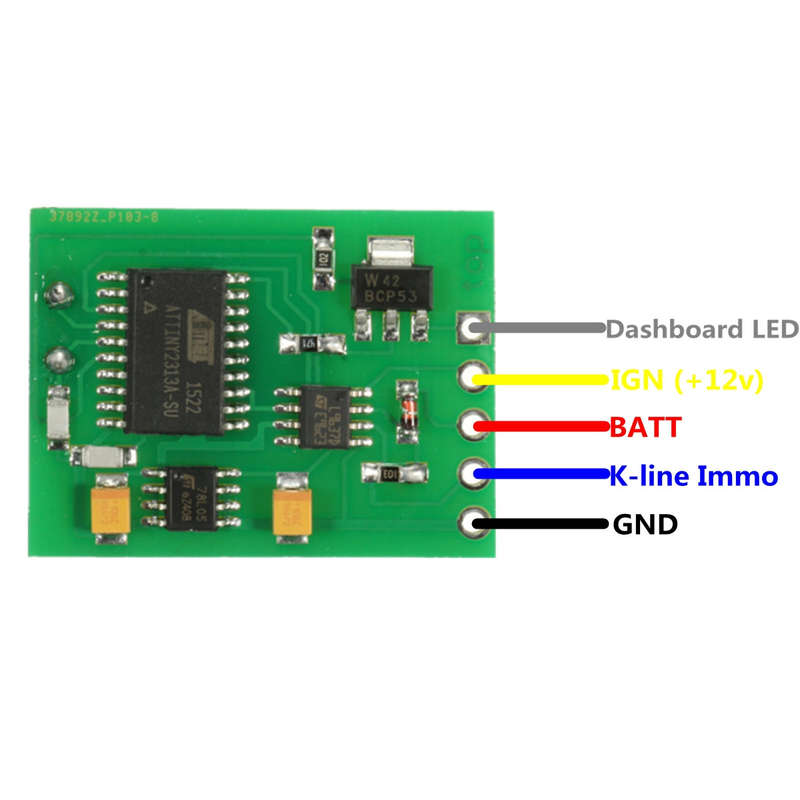

Colouring of wires and their appointment: (Wire is not included)
- Black GND (There may be 2 Black wires in which case connect both)
- Red BATT (+12v)
- Yellow IGN (+12v)
- Grey LED (+5v)
- Blue K-line Immo-ECU
Note:
1. (IMPORTANT) No Instructions Included. Professional Installation Is Highly Recommended
2. Please check the size measurement chart carefully before making payment.
3. Please allow 0.5-1 inch difference due to manual measurement.(1 inch=2.54cm)
4. The color of the actual items may slightly different from the listing images due to different computer screen, thanks for your understanding.
Package Included :
1x Immobilizer Emulator
