Max RPM: 0 - 3000
Voltage: 220-240 (50Hz)
Wattage: 850
Application:
Drilling into various steel, plastic, wood and masonry usingvarious drill bits and accessories.
- Max RPM: 0 - 3000
- Max Chuck Capacity: 13 mm (Keyed)
- Drilling Capacity: Wood 23mm, Steel 13mm and Masonry 13mm
- Max Impact Rate: 0-48000 BPM
- Wattage: 850W
- Voltage: 220-240 (50Hz)
- Modes: Drill & Hammer
- Variable speed control dial
- Trigger lock on button
Accessories Included

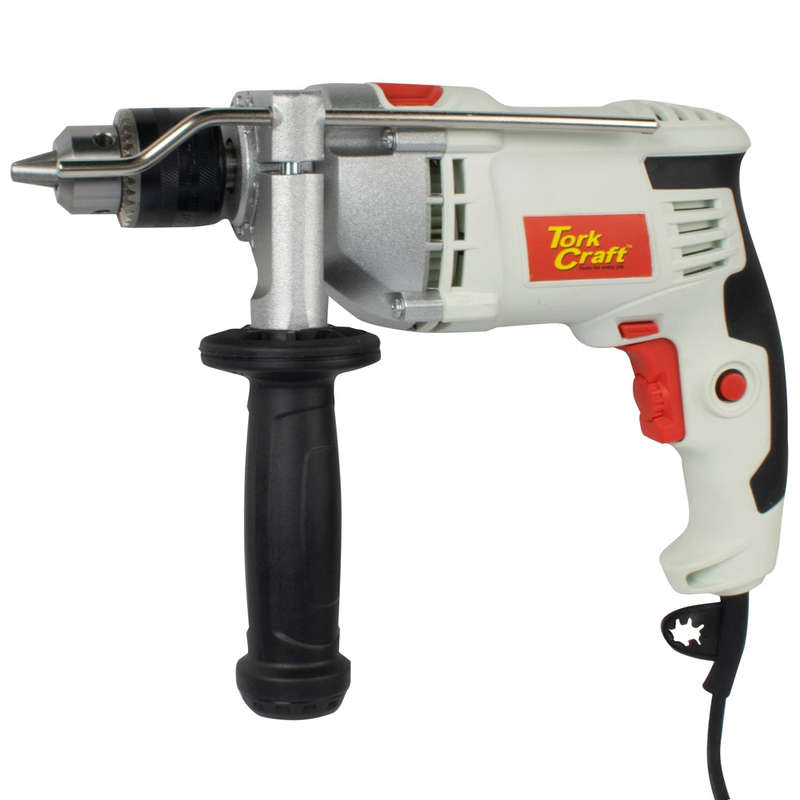

- Impact Drill
- Chuck key
- Depth stop rod
- Auxiliary handle
Installing Accessory Bits
Use the provided chuck key to either lock/unlock.Turn the chuck anti-clockwise until the drill chuck opening islarge enough to accept the accessory.Insert the accessory into the drill chuck. Turn the ring clockwiseuntil the tool is clamped tightly. Use the chuck key to properly lock the chuck.
Installing Auxiliary handle
To mount the Auxiliary handle, loosen the screw on the handleby turning the plastic part anti-clockwiseMount the handle over the chuck collar till it is flush with the flatsurface of the front of the drill.Turn the handle plastic part clockwise to clamp it in place.
Trigger lock
To lock the trigger, depress the lock in button situated at theside of the handle with one hand, while the other hand isdepressing the trigger.
Rotation setting
Reverse: to select reverse rotation, push the lever to the rightside of the drillForward: to select forward rotation, release the on/off switchand push the lever to the left side of the tool.
WARNING: Do not operate power tools in explosive atmospheres, such as inthe presence of flammable liquids, gasses or dust workconditions. Power tools create sparks that may ignite the dust orfumes or cause injuries or damage to the surrounding person orobject.Keep bystanders away while operating a power tool, distractionscan lead to potential loss of controlAlways ensure the switch is in the off-position before picking upor carrying the tool. Always use both hands to hold the toolwhen operating.Never lay the Drill down before the accessory has come to acomplete stop. The spinning accessory may grab the surface andpull the power tool out of your control or potentially damagethe tool and work surface.Always ensure there is sufficient light and avoid working in darkand clustered areas.Regularly clean the drills air vents, by using an air duster.(Disconnect tool from the main power supply)
