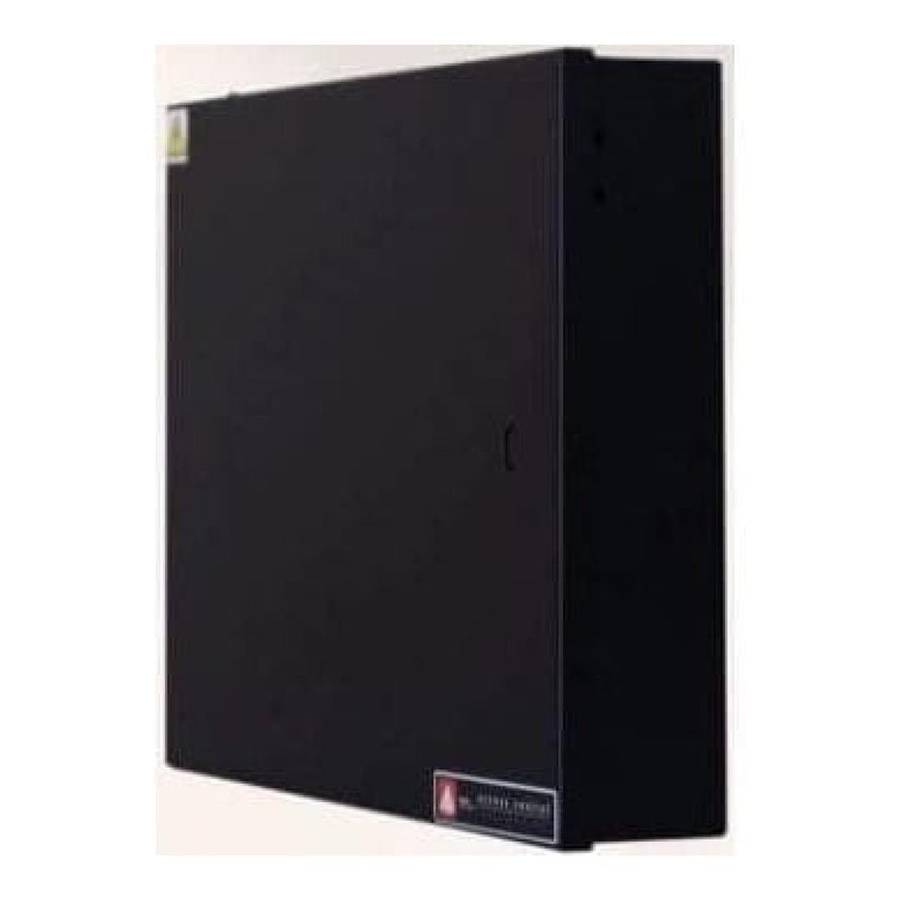

Impro HCD901 iTRT2 Distributed Controller in Metal IPS Box HCD901-0-0-GB-00
Features:
- Scalable controller options
- Versatile installation options
- Zero down-time firmware upgrades
- OSDP and Wiegand support
- Communication distance: 150â¯m for Wiegand, 1000â¯m for OSDP
- Offline validation
- Tamper protection
- Support for up to 2 doors with 4 inputs and 2 relay outputs
- Auxiliary 3rd relay
Technical Specifications:
Product Description: iTRT2 in steel enclosure with integrated PSU
Colour: Black
Dimensions (D × W × H): 8.2â¯cm × 38.3â¯cm × 31.3â¯cm
Approx. Product Weight: 3.60â¯kg
Material: Mild Steel Housing
Electrical Specifications
Input Voltage: 100—230â¯V AC
Power Requirements at 12â¯V DC: 120â¯mA
Relay Power Requirements: 0.45â¯W per relay
Power Input Protection: Reverse polarity and over-current protection
Interconnectivity
Ethernet: 10/100 Base-T
RS-485 Ports: 1 × 38400 RS-485 for controller networking, 1 × 38400 RS-485 for Aperio™ lock hubs
OSDP & Wiegand: 2 hardware-selectable ports for OSDP or legacy Wiegand
Status LEDs: 20
Input Specification
Digital Inputs: 2 × Door Open Sensor inputs, 2 × Request to Exit Button inputs
Input Type: 4 dry contact inputs with end-of-line (EOL) sensing
Output Specification
Number of Relay Outputs: 3
Output Type: 3 × independent SPDT dry contact relays (NO, COM, NC)
Relay Contacts: Normally Open, Common, Normally Closed
Contact Ratings: 5â¯A - 28â¯V DC (TV-5 Rated), 100k operations minimum
Environmental Specifications
Operating Temperature: -25⯰C to +60⯰C (-13⯰F to +140⯰F)
Storage Temperature: -40⯰C to +85⯰C (-40⯰F to +176⯰F)
Operating Humidity: 0—95% RH non-condensing (at +40⯰C / +104⯰F)
Environmental Rating: IP10
Certifications
CE (EU): Yes
UL: On request
SABS (RSA): Yes
RoHS Compliance: Yes
