and control system, specifically a gas analyzer or similar device used for environmental technology.
Explanation:

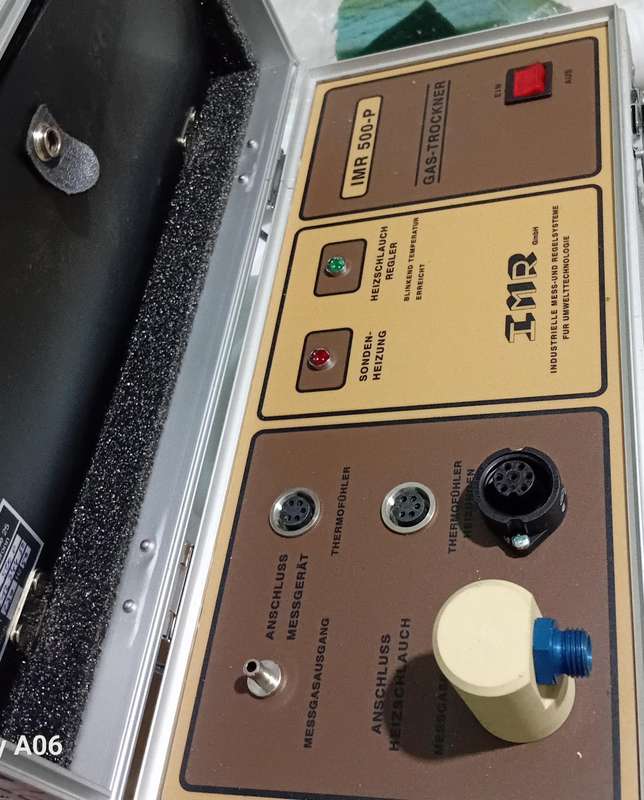

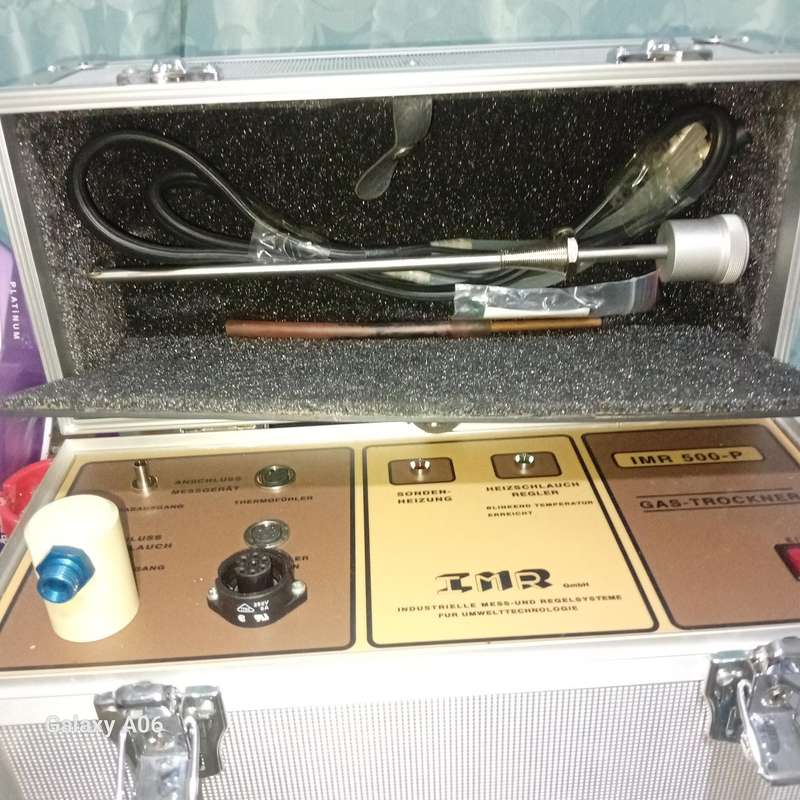

IMR 500-P:
This is the model designation of the device, prominently displayed on the unit.
Industrielle Mess- und Regelsysteme für Umwelttechnologie (Industrial Measurement and Control Systems for Environmental Technology):
This phrase, visible on the device, indicates the manufacturer (IMR) and the primary application area of the equipment.
Key Components/Functions (based on labels):
GAS-TROCKNER (Gas Dryer): Suggests it processes gas samples.
SONDEN-HEIZUNG (Probe Heating): Indicates heating for a measurement probe.
HEIZSCHLAUCH REGLER (Heated Hose Controller): Points to control of a heated hose, likely for gas sampling lines to prevent condensation.
ANSCHLUSS MESSGERÄT (Measuring Device Connection): An input/output for connecting other measuring instruments.
MESSGASAUSGANG (Measuring Gas Outlet): The outlet for the processed or analyzed gas.
THERMOFÜHLER (Thermocouple/Temperature Sensor): Connections for temperature sensing, crucial in gas analysis.
