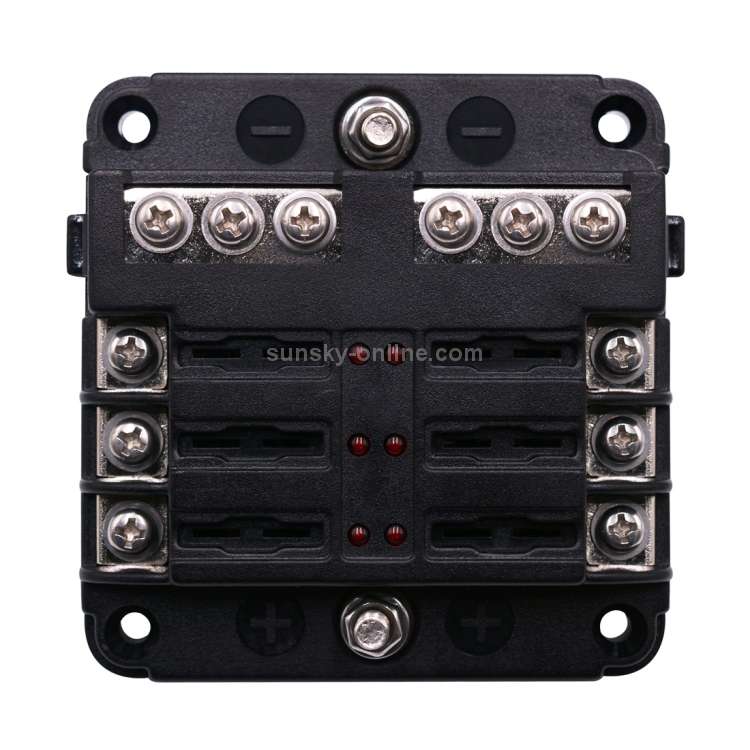

Independent Positive and Negative 1 in 6 Out 6 Way Circuit Blade Fuse Box Fuse Holder Kits with L...

1. Material: PBT body, PC waterproof dust cover, nickel-plated copper connection terminal.
2. Input rated voltage: 32V
3. Input rated current: 100A
4. Output maximum current: 30A per circuit
5. Indicator function: When the red LED is lit, it means the fuse has been disconnected, you need to replace the fuse in time to continue running.

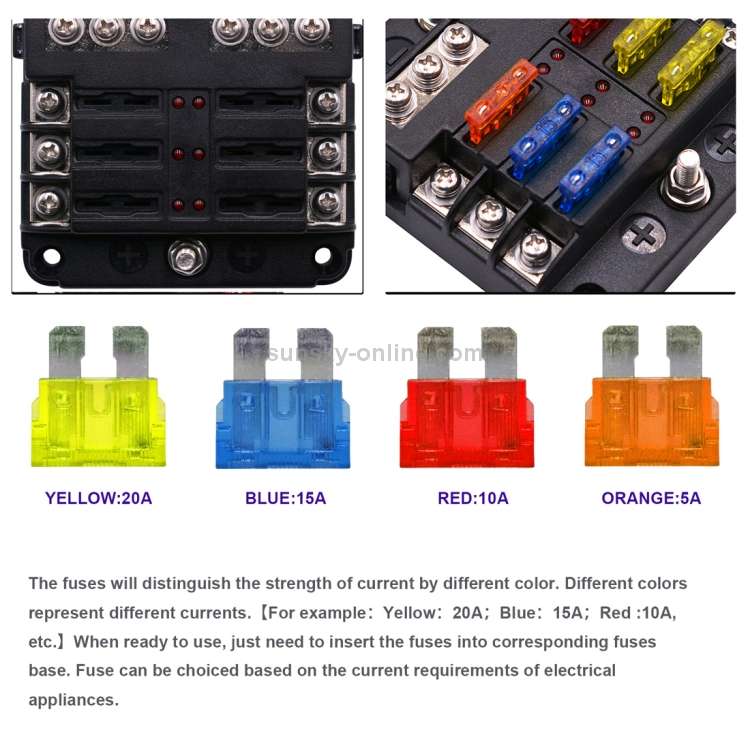

6. Fuse function: When the circuit malfunctions or is abnormal, the current is continuously increased, and the increased current may damage some important devices or valuable devices in the circuit, and may also burn the circuit or even cause a fire. The fuse protects the electronic device from overcurrent and also protects the electronic device from serious damage caused by internal faults. Therefore, each fuse has a rated specification, and the fuse will blow when the current exceeds the rated specification. If the fuse is correctly placed in the circuit, the fuse will cut off the current abnormally rises to a certain height and a certain temperature, thereby protecting the safe operation of the circuit.

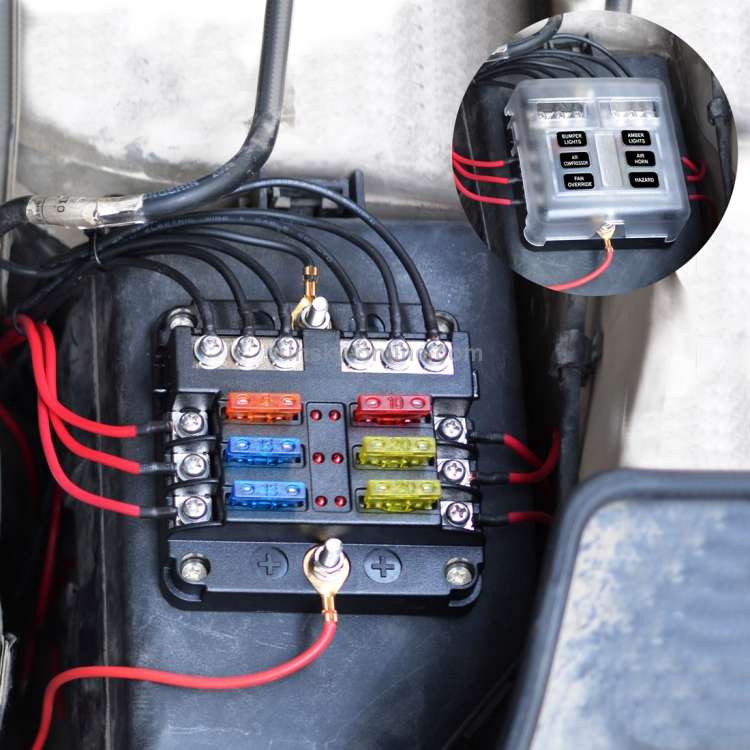

7. Range of use: can be directly connected to the line of vehicle / ship's free electrical appliances [such as: Car dome light, car headlights, sight wide light, fog lamp, warning lamp, vehicle refrigerator, car charger, car fan, car TV.
8. Product Advantage: (1) The product adopts PBT anti-flame-resistance, high-low temperature and environmental protection materials, which fully meets [the fuse holder must have good mechanical strength, insulation, heat resistance and flame retardancy, and should not be broken during use. Conditions of deformation, combustion, short circuit, etc. (2) All fasteners are made of stainless steel, the fuse box is input, and the output end is fixed by tightening screws, which can be installed more quickly, and the safely box is fixed by self-tapping screws, which makes installation easier and safer.
