Inductive Proximity Sensor

Name: Inductive Proximity Sensor
SKU: SEN-00141
Price: 161.00 ZAR
Availability: InStock

5 available / new

Only 5 left – grab it before it’s gone!

R161.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 1 business day. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Netram Technologies665

98.55 % Positive ratings

Get it now, pay later

Product details

Condition

New

Location

South Africa

Product code

SEN-00141

Bob Shop ID

644207201

Application:

Inductive sensors are great for sensing metals. Thats why this guy is used in almost every instance of 3D Printing Autobed Leveling.
But its not only reserved for this. You could use this for triggering all sorts of things using an MCU such as an Arduino or ESP Units.
Simply place the metals near its orange tip and it will send a positive voltage out the signal pin relative to the input voltage of the device.

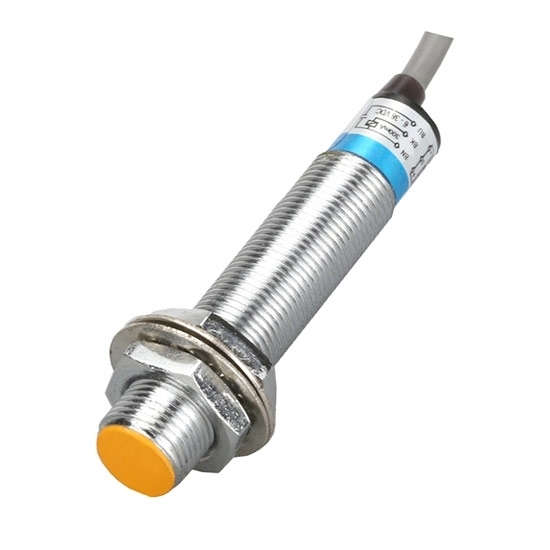

This sensor is a smaller version of this sensor:

But the specifications are identical.

Specifications:

Voltage: DC 6-36V
Detection distance: 4mm - Please bare in mind that the lower the voltage, the closer the detection distance will become and vice versa for higher voltages.
Output current: 300mA
Polarity: NPN
Ouput Status: Normally Open
Response frequency: DC:0.5kHz AC:25Hz
Pin Outs vs Wire Colours:
Brown = Positive
Blue = Negative
Black = Signal
Cable length: 1.2m

Size: 17.80mm diameter

Length:68.50mm

Projects:

Wiring Induction sensor to an Arduino
