Industrial 10 Head Sprayer Ultrasonic Mist Maker Diffuser Fogger Air Humidifier Fountain Pond Atomiz

Description:

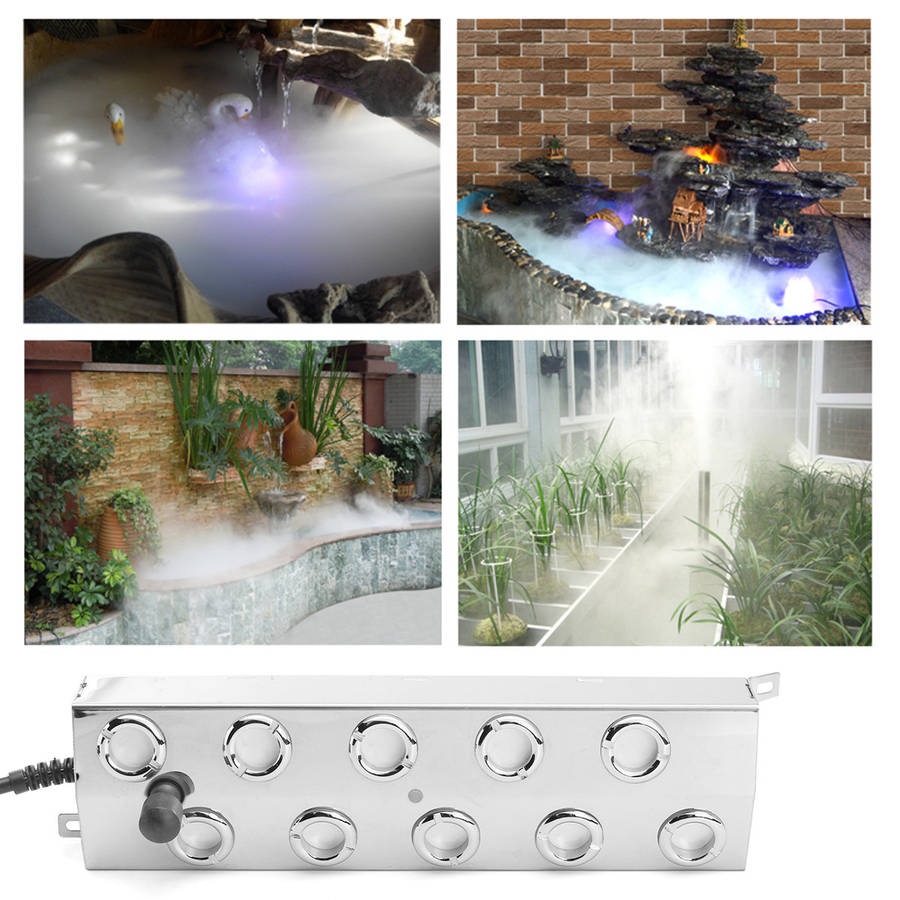

Ultrasonic fogging technology can be used formany horticultural application including hydroponics, propagation, foliar feeding, grow room and greenhouse humidity generation, tec.



Features:

1. More adaptable to atomized water quality, the same nebulizer can use pure water or tap water to work normally.

2. Wide range of power supply, to ensure that products in the larger changes in the market can still be used normally.

3 has a power supply polarity protection circuit to prevent users from connecting the reverse damage to the product (the reverse does not work).

4. Set the boot delay circuit to avoid the impact of switching power supply is too large and damage the line.

5. A single nozzle line using a free-standing design, and the use of over-current protection circuit to avoid a nozzle of the circuit burned and damaged power supply, and will not affect the normal operation of other nozzles.

6. The whole current is less affected by the voltage and temperature, because the current in each nozzle is automatically adjusted by the electronic, the current will decrease with the increase of the temperature (will not affect the amount of fog), to avoid serious heating of the power tube, current Increase cause a vicious cycle and damage the nebulizer.

7. The product uses high thermal conductivity, corrosion resistance, good mechanical strength of the metal casing, reducing the temperature difference between the host and water, thereby extending the service life of the product.



NOTE: Please see the Instructions in the picture below



Parameters:

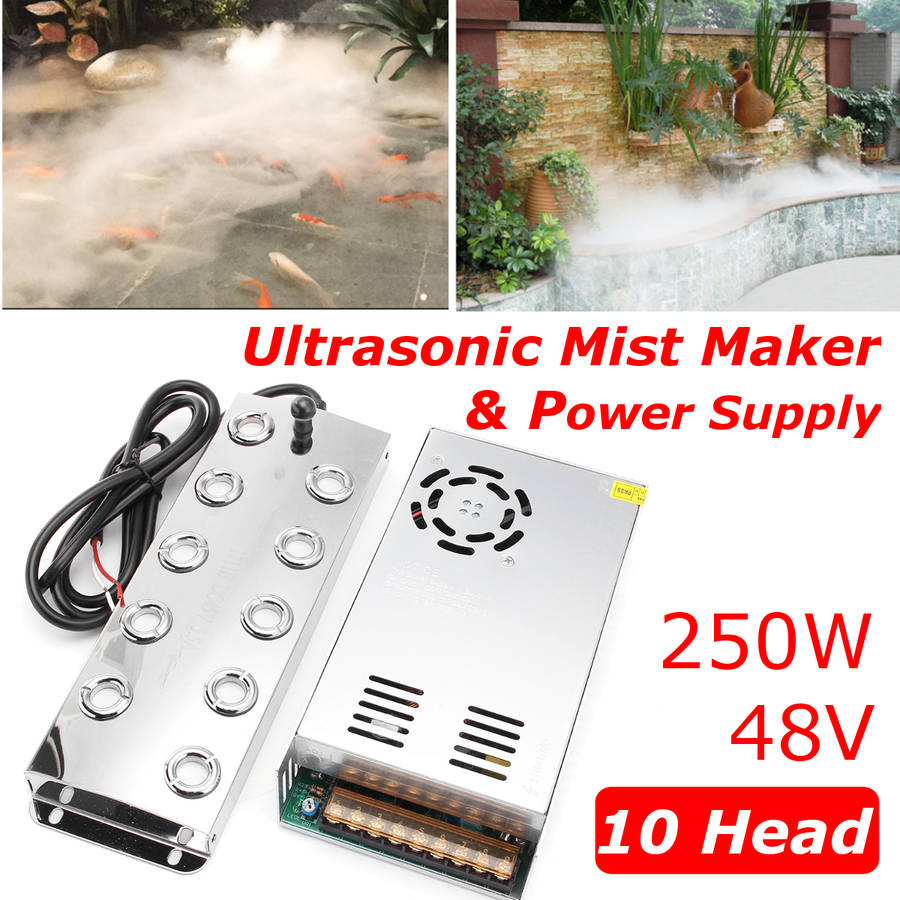

Item: 10 head ultrasonic mist maker

Material: 304 stainless steel, surface oxidized

Max. mist making: 5KG/H

Power: 250W

Voltage : DC 48V (Or AC36V rectification)

Power supply Voltage: 220V

Recommend area: 0 - 50m²

Protection: auto stop working when water is shortage

Ultrasonic Mist Maker Size: 250 * 70 * 35mm

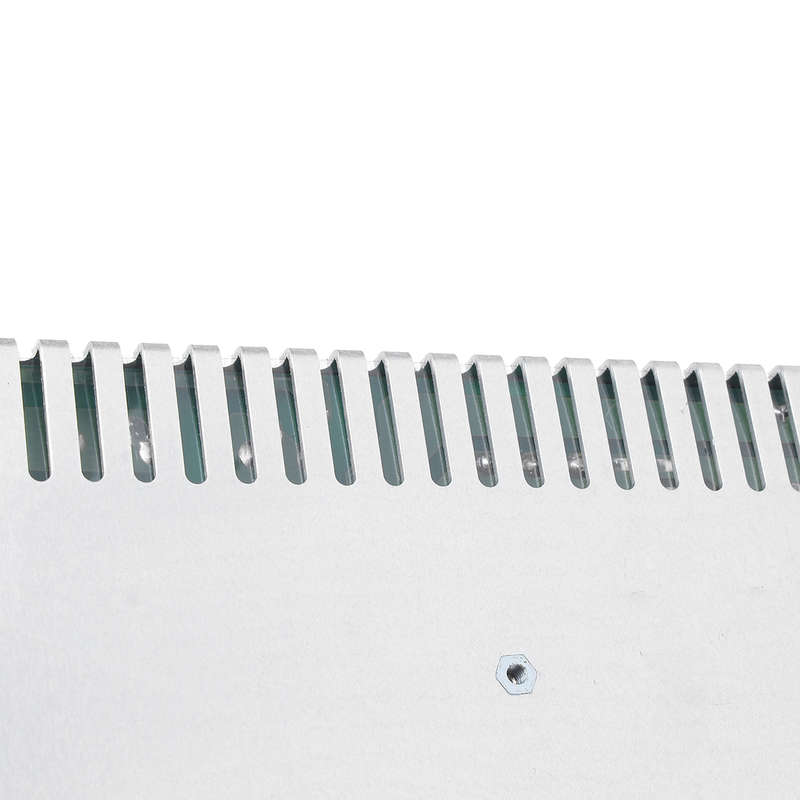

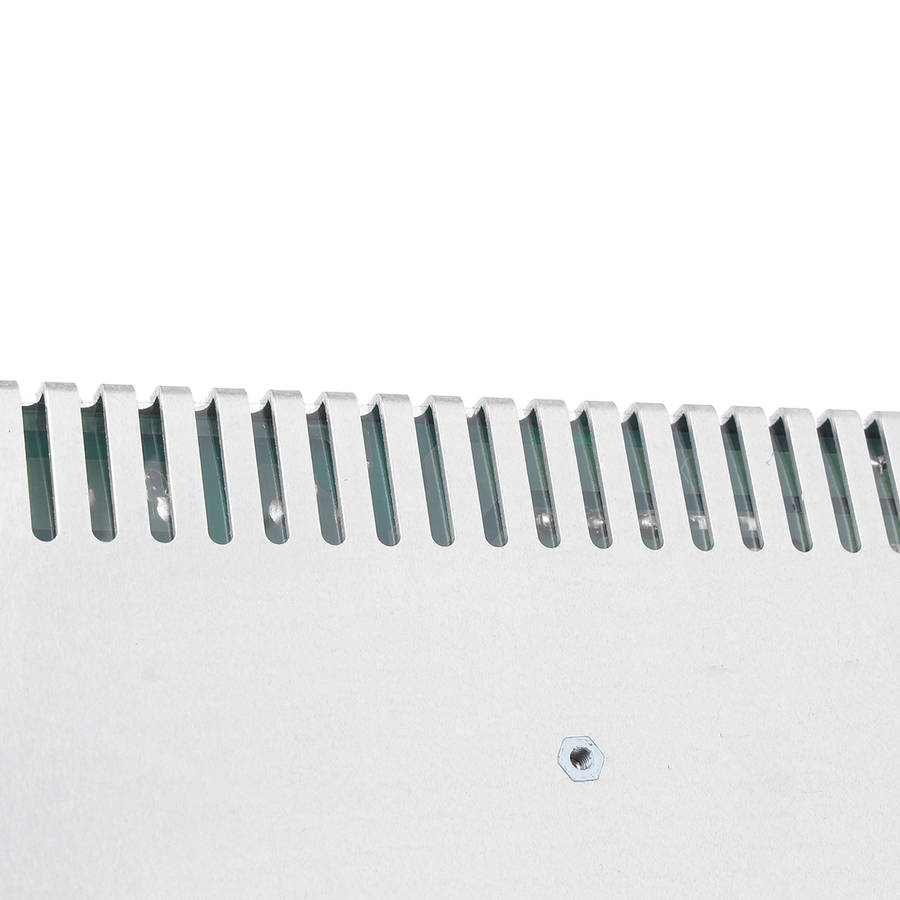

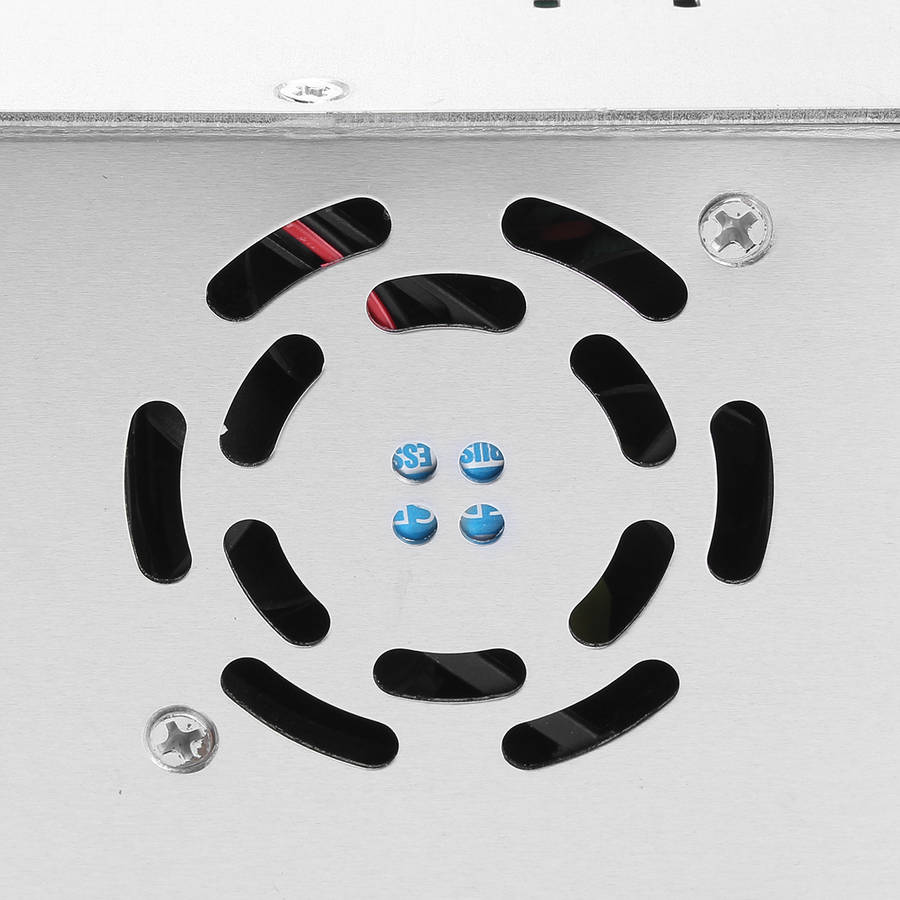

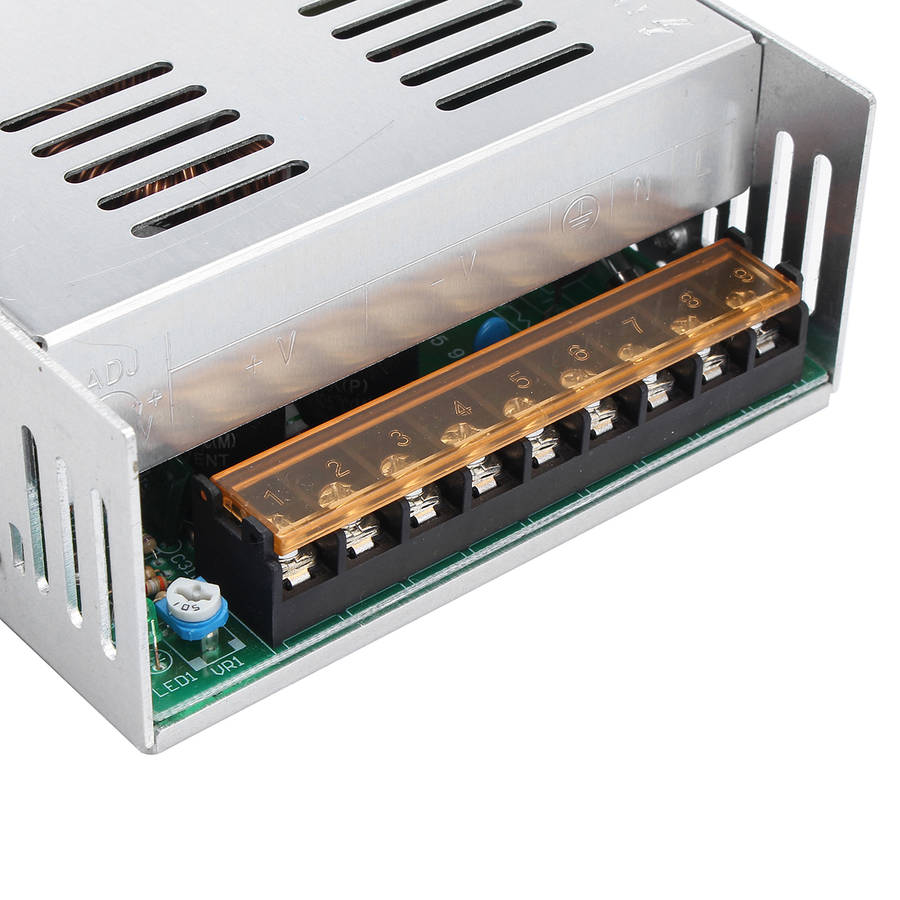

Power Supply Size: 215 * 110 * 50mm

Working condition

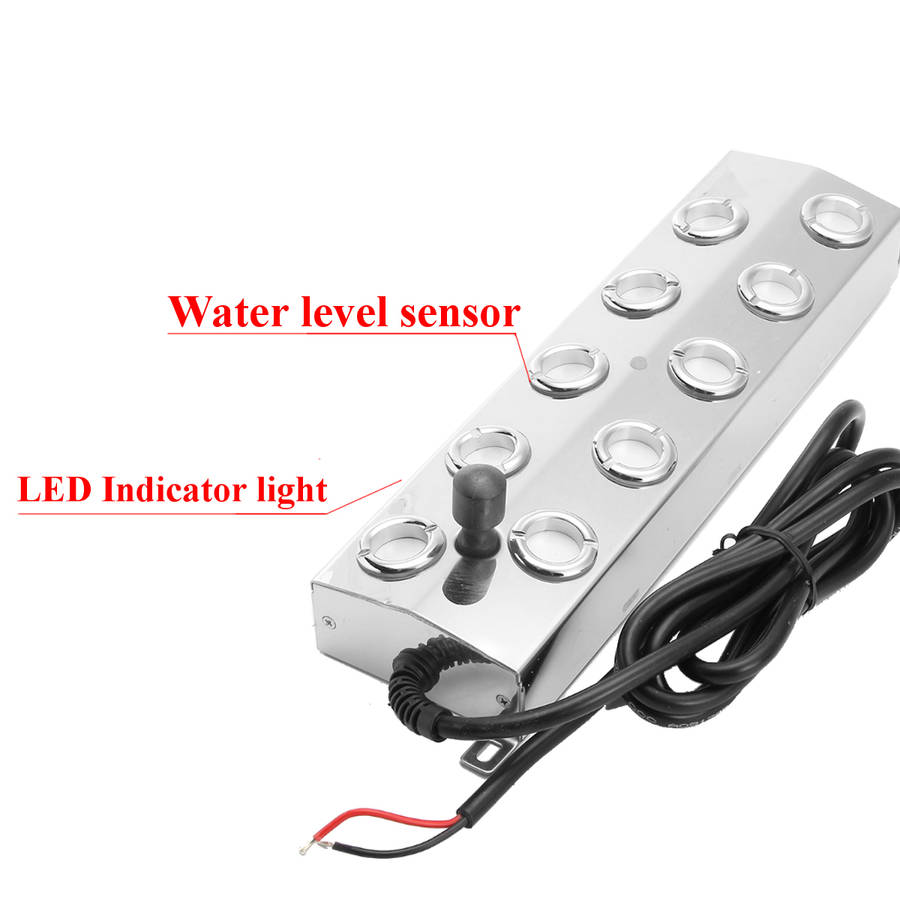

Water level: 1 - 2cm higher than the Water level detector

Water temperature: 5-50℃ (the normal temperature is  30℃)

Water source: clear water

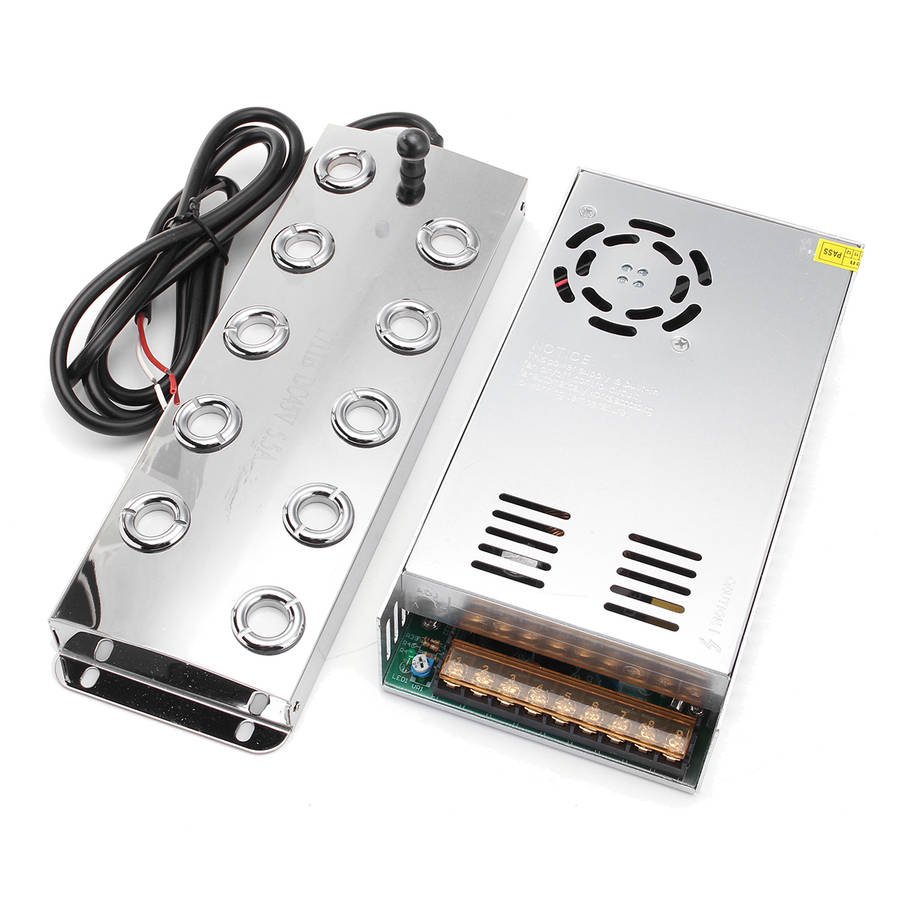

Packing List:

1 * Ultrasonic Mist Maker

1 * Power Supply
