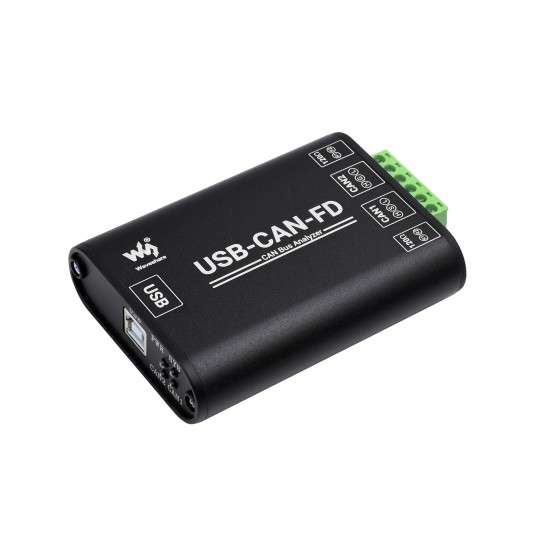

Industrial Grade CAN/CAN FD Bus Data Analyzer - USB To CAN FD Adapter
Product Description
The USB-CAN-FD is an industrial-grade high-performance USB to-CAN FD adapter, CAN/CAN-FD bus communication interface card, and CAN/CAN-FD protocol data analyzer. Onboard dual independent CAN FD interfaces with electrical isolation and multiple protection circuits. Supports Windows XP/7/8/10/11 system, comes with drivers, CAN FD Tools-related software, secondary development examples, and tutorials.

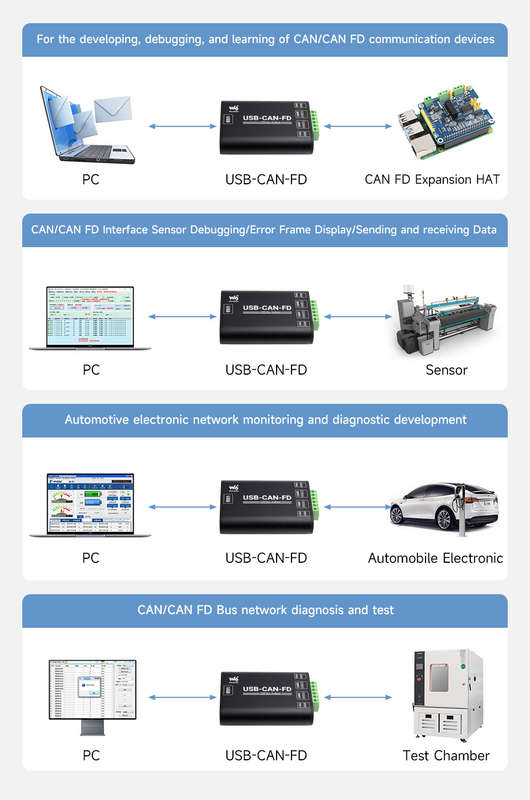

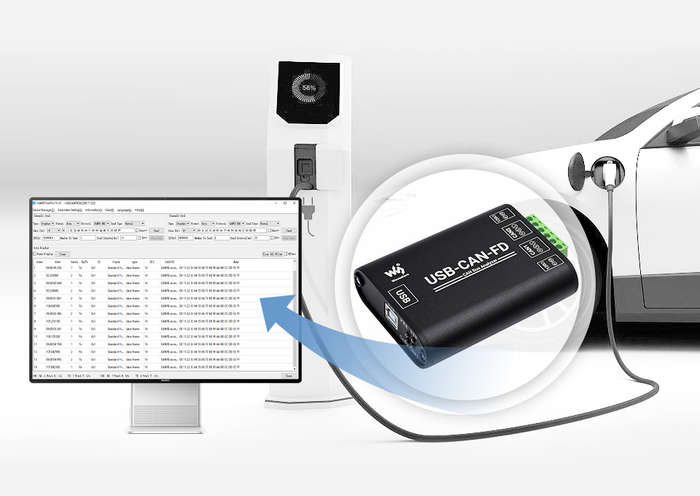

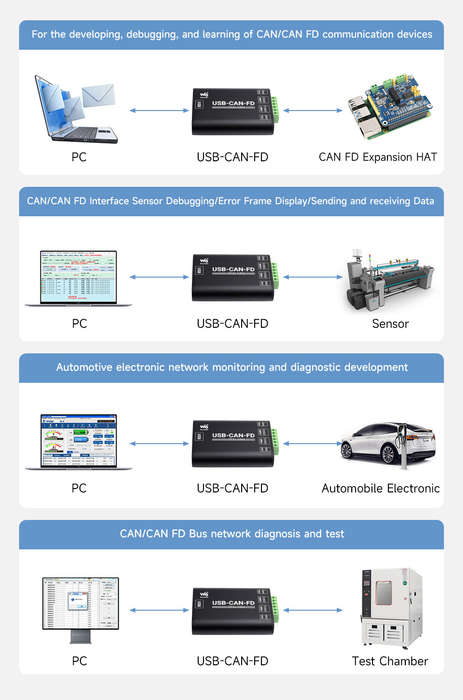

It can be connected to the PC or industrial control host via a USB port to realize transceiver control, data analysis, collection, and monitoring of CAN/CAN FD bus network. It is compact in size and easy to use, which can be used for learning and debugging of CAN/CAN FD bus, as well as for secondary development and integration into various industrial, power communication, and intelligent control applications that require CAN/CAN FD bus communication.
Product Specs
- PRODUCT TYPE: Industrial grade: USB to CAN FD interface converter, CAN/CAN FD bus communication interface card, CAN/CAN FD protocol data analyzer

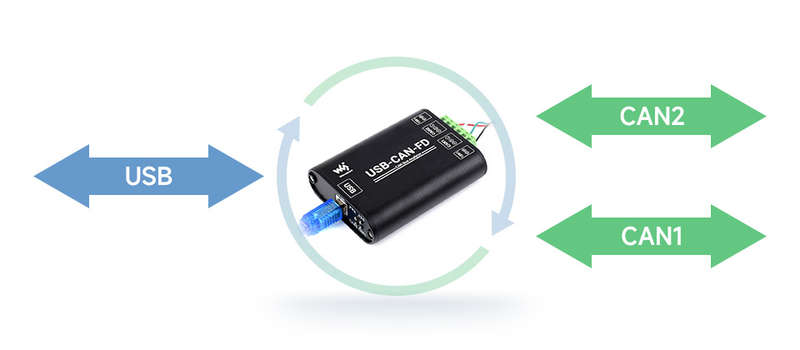

- USB: Operating voltage - 5V (directly powered by USB port without external power supply | Connector - USB-B | CAN/CAN FD channel - Dual-channel: CAN1 and CAN2 (independent and full-isolated, isolated voltage: 3000V DC) | Connector - CAN bus screw terminal (OPEN6 5.08mm pitch) | Terminal resistor - Each CAN/CAN FD channel has two built-in 120Ω terminal resistors, which can be enabled by switch
- CAN/CAN FD INTERFACE: Baud Rate 100Kbps~5Mbps (Configurable via software) | Protocol Support - CAN2.0A, CAN2.0B, and ISO 11898-1 CAN FD protocol V.1.0 | Transfer speed - The receiving and sending speed of each CAN/CAN F
- INDICATORS: PWR - Power indicator | SYS - System status indicator, normally off; keeps on when there is a bus error | CAN1 - CAN1 channel indicator (blinking when sending and receiving data) | CAN2 - CAN2 channel indicator (blinking when sending and receiving data)
- SYSTEM SUPPORT: Windows - Windows XP/7/8/10/11 (32/64 bits); Does Not support the Linux system now, and the related drivers are under development.
- OPERATING TEMPERATURE: -40~85℃
- CASE MATERIAL: Aluminum alloy case + 3D flame-retardant insulating sheets on both sides (This design can provide better protection against metal tip discharge, also improves product safety, and extends service life)

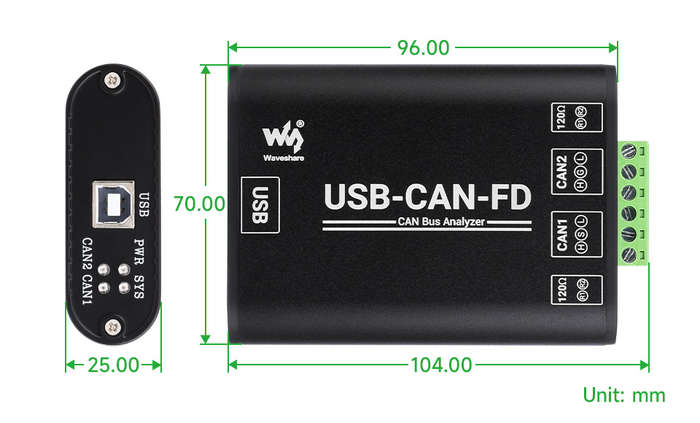

- DIMENSIONS: 104 × 70 × 25 mm
