Feature:

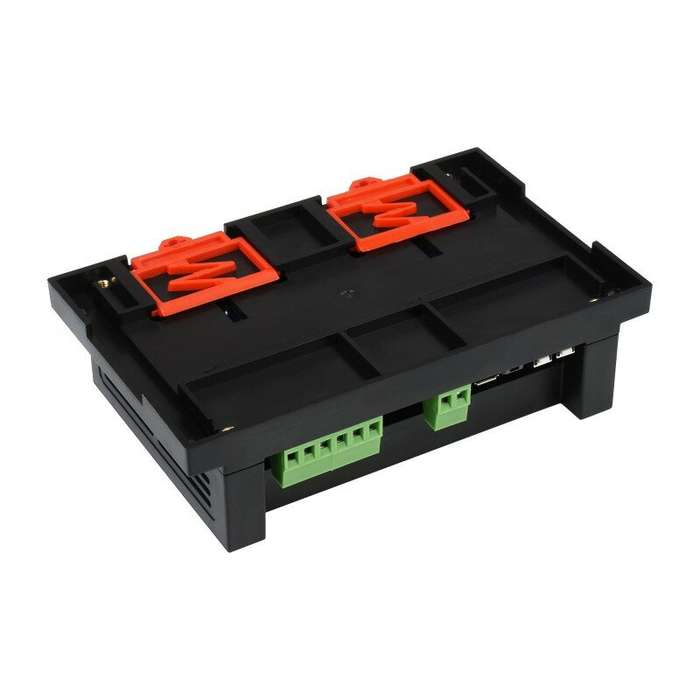

- Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal- Onboard photocoupler isolation, prevent interference from external high-voltage circuit connected to the relay- High quality relay, contact rating: 10A 250V AC or 10A 30V DC- ABS protection enclosure with rail-mount support, easy to install, safe to use- USB port and BOOT pin, make it easy to debug without disassembling the enclosure- PWR indicator, RGB LED, and passive buzzer outside the enclosure- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications:Operating voltage: 5VCommunication Protocol: USBCommunication interface: Micro USBRelay channel: 8 chContact form: 1NO 1NCDimension: 88Hx 122V mm
Package includes:
1 x Relay Module
