### Industrial Telecom Power Distribution FSU Vibration Monitor System Kit

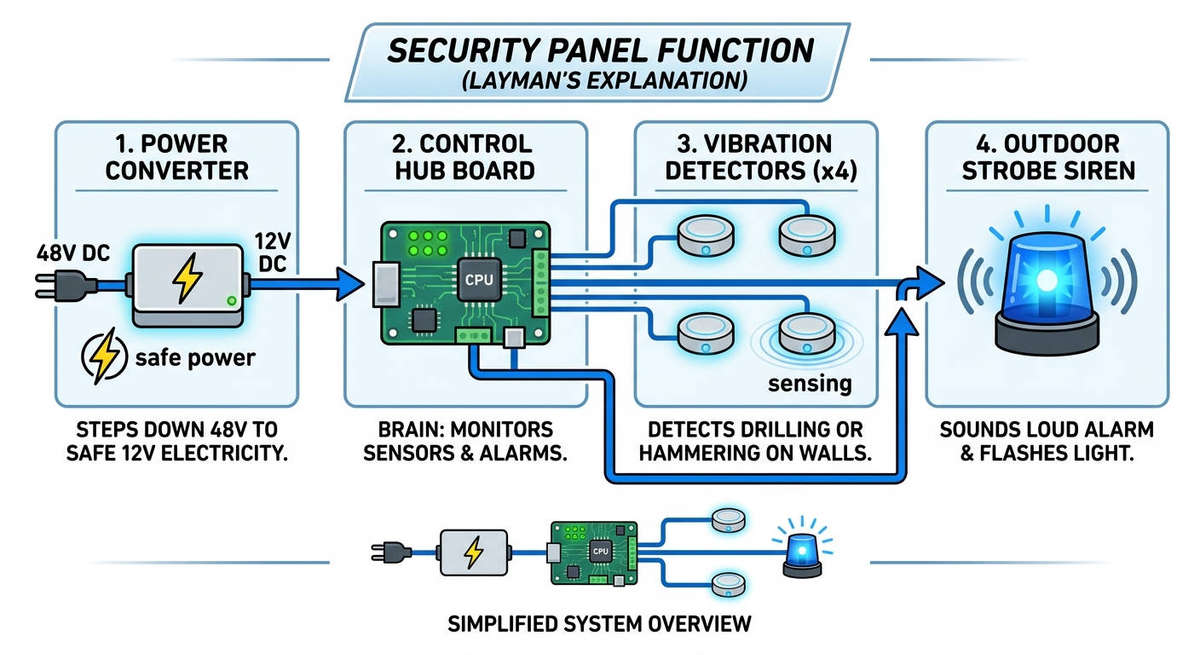

SIMPLE LAYMAN GUIDE - HOW THIS SYSTEM WORKSThis complete security kit protects remote equipment boxes, solar panel frames, gate structures, or container rooms against physical break-ins, hammering, cutting, and drilling. You do not need complex engineering knowledge to understand the setup:The Isolated Power Box (DOM-48D35S12): Takes raw high-voltage battery or solar tower power and drops it down safely to a steady 12V stream of household-safe electricity.The Control Brain Card (ED972ZTE): Acts as the central smart hub. It uses that safe power to stay awake 24/7 and monitor your security loop lines.The Vibration Sensors (4 x ED702): These compact sensor blocks mount directly to your security walls, fences, or container doors. If someone tries to cut a wire, drill, or hammer the wall, the sensor chain instantly snaps.The Outdoor Warning Siren (KF81TX): The exact second the control brain detects a sensor wire break, it triggers this rugged strobe box, launching a loud alarm sound and a bright flashing light to stop intruders.
De-risk your next private cellular deployment, base station maintenance project, or remote telemetry shelter refresh. Up for sale is a specialized, carrier-grade Field Supervision Unit (FSU) power distribution and vibration monitor system ecosystem bundle. Specially engineered by telecom infrastructure partners, this hardware matrix is designed to monitor and safeguard remote telecommunication enclosures, cellular base stations, and fiber-optic distribution hubs against critical structural impacts, tampering, and line noise.
The system utilizes an advanced, galvanic-isolated step-down power converter running a continuous, tamper-protected Normally Closed (NC) loop array across multiple high-precision shock and environmental sensor nodes.
#### System Logic & Operational Flow
* Power Conversion: The DOM-48D35S12 module swallows raw site power (-48V DC nominal) and cleanly drops it to a stable 12V DC bus line.
* System Power: This clean 12V line continuously runs the ED972ZTE Control Card and feeds standby potential to the KF81TX Siren.
* Loop Monitoring: The four ED702 Sensors are wired together in a continuous, tamper-protected Normally Closed (NC) loop monitored by the ZTE controller.
* Alarm Activation: If any sensor detects a physical strike, persistent drilling, or environmental breach, the loop breaks. The ED972ZTE card detects this fault and switches 12V DC power straight to the KF81TX Strobe Siren, activating visual and audible deterrents.
#### Detailed Technical Specifications
1. **DOM-48D35S12 Isolated Power Converter**
* Input Voltage: -48V DC nominal (Operating window: -36V DC to -72V DC)
* Output Voltage: 12V DC (Regulated, low-ripple)
* Max Output Current: Heavy-duty 35 Amps (~420W power ceiling)
* Isolation Type: Galvanic isolation (prevents telecom line noise from reaching alarm components)
* Form Factor: Rugged enclosure with integrated thermal dissipation heat sinks
2. **ED972ZTE FSU Control Module (ZTE Corporation Genuine OEM)**
* Operating Voltage: 12V DC (via DOM converter)
* Input Channels: Dedicated telemetry terminals for serial peripheral loops
* Output Relays: Switched high-current 12V alarm outputs
* Data Interface: Integrated telemetry protocol chip for upstream Network Operations Center (NOC) reporting
3. **ED702 Vibration and Environmental Sensor Nodes (x4)**
* Circuit Architecture: Normally Closed (NC) dry contact
* Sensitivity Modes: 3 selectable sensitivity tiers (High, Medium, Low) via internal jumper pins
* Housing Profile: Compact tamper-resistant ABS shell
* Detection Profile: Structural mechanical shock, persistent drilling, heavy impacts, and environmental boundary metrics
4. **KF81TX Outdoor Strobe Siren (Innopro / ZNV)**
* Operating Voltage Range: 9V DC to 14V DC (12V DC nominal)
* Visual Interface: High-intensity stroboscopic LED grid (Red/Orange flash)
* Acoustic Rating: High-decibel industrial sounder
* Chassis Rating: IP-rated weatherproofing with built-in spring-loaded back-tamper switch
#### Condition Report
* Core Components: [Specify condition here, e.g., Brand new open box / Pristine extracted warehouse inventory].
* Terminal Blocks: All input pin connectors, relay ports, screw rails, and gold-plated contacts are clean, clear of burn marks, and entirely free of storage oxidation.
* Operational State: 100% clean cosmetic and structural condition.
#### Package Includes
* 1 x Hangjia DOM-48D35S12 Isolated Power Converter
* 1 x ZTE ED972ZTE FSU Control Module
* 4 x ED702 Vibration and Environmental Sensor Nodes
* 1 x Innopro KF81TX Outdoor Strobe Siren
#### Terms and Conditions
* Payment must be processed securely through Bob Pay within 48 hours of winning the listing.
* The entire kit will be packed securely inside anti-static protective wrapping and dispatched via courier within 2448 hours of cleared payment.
* Please ask any technical configuration or device compatibility questions before purchasing.
