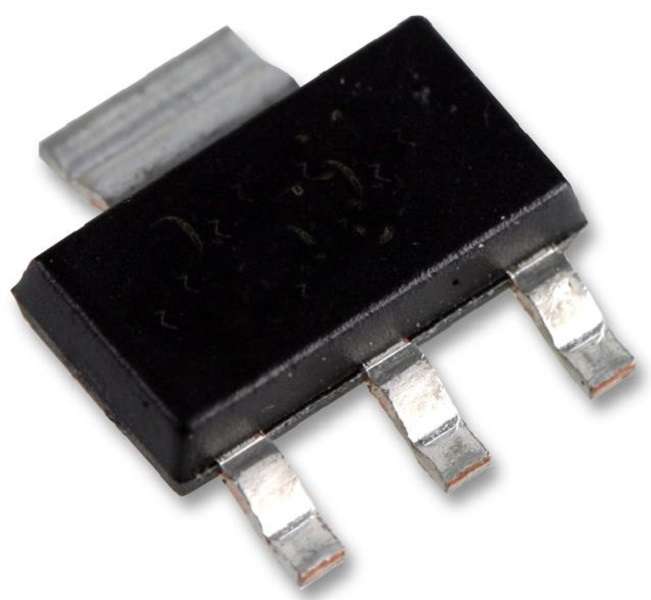

Smart Power Switch, SIPMOS Technology, Low Side, 1 Output, 42V, 24A, SOT-223-4Product OverviewThe BSP78 is a N-channel low-side vertical power FET Switch in smart SIPMOStechnology and fully protected by embedded protection functions. It has thermalshutdown with auto restart and also logic level input.Input protection (ESD)Overload protectionShort-circuit protectionOvervoltage protectionCurrent limitationAnalogue driving possibleApplicationsIndustrial, Computers & Computer Peripherals, AutomotiveHome> Semiconductors - ICs> Power Management ICs - PMIC> Power DistributionSwitchesSpotted an Error? Print PageBSP78HUMA1Smart Power Switch, SIPMOS Technology, Low Side, 1 Output, 42V, 24A, SOT-223-4Date/Lot CodeINFINEON BSP78HUMA1Add to compareImage is for illustrative purposes only. Please refer to productdescription.INFINEONManufacturer: INFINEONManufacturer Part No: BSP78HUMA1Order Code: 2215495Also Known As: BSP78, SP000292892Technical Datasheet: BSP78HUMA1 DatasheetSee all Technical DocsSmart Power Switch, SIPMOS Technology, Low Side, 1 Output, 42V, 24A, SOT-223-4Product OverviewThe BSP78 is a N-channel low-side vertical power FET Switch in smart SIPMOS®technology and fully protected by embedded protection functions. It has thermalshutdown with auto restart and also logic level input.Input protection (ESD)Overload protectionShort-circuit protectionOvervoltage protectionCurrent limitationAnalogue driving possibleApplicationsIndustrial, Computers & Computer Peripherals, AutomotiveProduct InformationPower Load Switch Type: Low SideInput Voltage: 42VCurrent Limit: 24AOn State Resistance: 0.05ohmDistribution Switch Case Style: SOT-223No. of Pins: 4PinsThermal Protection: YesNo. of Outputs: 1OutputsOperating Temperature Min: -40°COperating Temperature Max: 150°C
