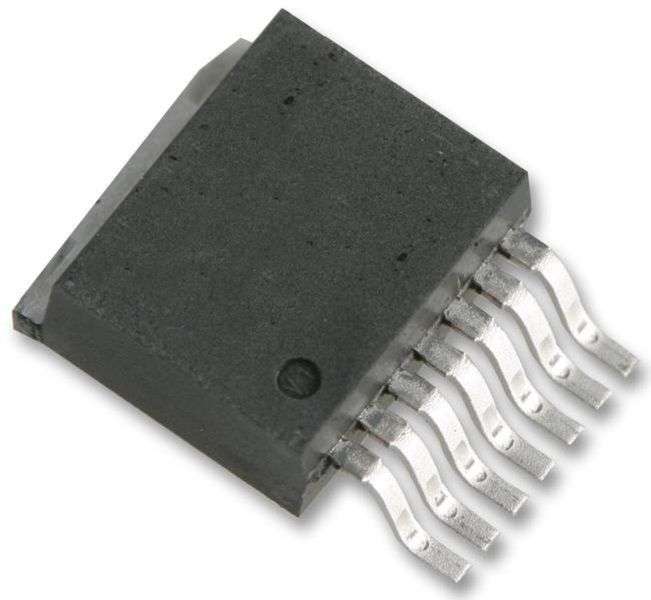

Infineon (BTS640S2GATMA1) Power Load Switch, SIPMOS Technology, TO-263-7

Product OverviewThe BTS640S2G is a N-channel high-side vertical Power FET Switch with chargepump, ground referenced CMOS compatible input and diagnostic feedback andproportional sense of load current, monolithically integrated in smart SIPMOS®technology. It provides embedded protective functions, under-voltage andovervoltage shutdown with auto-restart and hysteresis.Short-circuit protectionCurrent limitationProportional load current senseCMOS compatible inputOpen drain diagnostic outputFast demagnetization of inductive loadsOverload protectionThermal shutdownOvervoltage protection including load dumpReverse battery protectionLoss of ground and loss of VBB protectionElectrostatic discharge (ESD) protectionHigh voltage capabilityBenchmark energy robustnessApplicationsIndustrial, Computers & Computer Peripherals, AutomotiveProduct InformationPower Load Switch Type: High SideInput Voltage: 34VCurrent Limit: 24AOn State Resistance: 0.03ohmDistribution Switch Case Style: TO-263 (D2PAK)No. of Pins: 7PinsThermal Protection: YesOn / Enable Input Polarity: Active HighNo. of Outputs: 1OutputsOperating Temperature Min: -40°COperating Temperature Max: 150°CProduct Range: -MSL: MSL 3 - 168 hours
