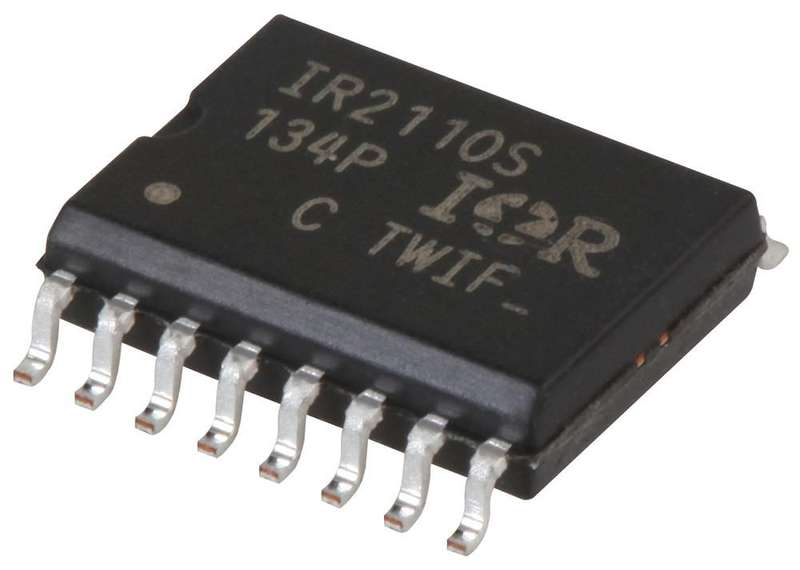

Infineon (IR2110SPBF) Dual Driver IC, High Side And Low Side, 10V-20V

Dual Driver IC, High Side And Low Side, 10V-20V Supply, 2.5A Out, 94ns Delay,SOIC-16Product OverviewIR2110SPBF is a high voltage, high speed power MOSFET and IGBT driver withindependent high and low side referenced output channels.Floating channel designed for bootstrap operationGate drive supply range from 10 to 20VUndervoltage lockout for both channels3.3V logic compatibleCMOS Schmitt-triggered inputs with pull-downCycle by cycle edge-triggered shutdown logicMatched propagation delay for both channelsOutputs in phase with inputsProduct InformationNo. of Channels: 2ChannelsDriver Configuration: High Side and Low SidePower Switch Type: IGBT, MOSFETSupply Voltage Min: 10VSupply Voltage Max: 20VDriver Case Style: SOICInput Type: Non-InvertingIC Case / Package: SOICNo. of Pins: 16PinsIC Mounting: Surface MountSource Current: 2AInput Delay: 120nsOutput Delay: 94nsSink Current: 2AOperating Temperature Min: -40°COperating Temperature Max: 125°CProduct Range: IR2110; IR2113
