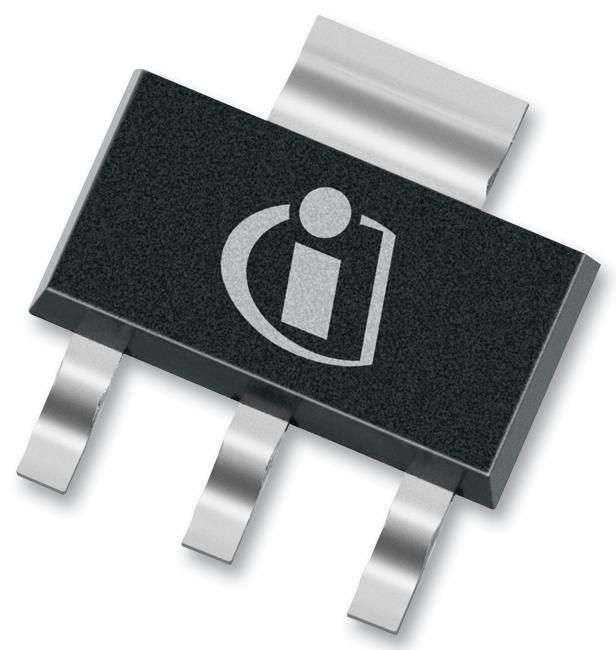

Infineon (ITS4140NHUMA1) Power Load Switch, SIPMOS Technology, 1 Output

Power Load Switch, SIPMOS Technology, High Side, 1 Output, 60V, 0.7A, SOT-223-4Product OverviewThe ITS4140N is a 1-channel high-side vertical power MOSFET Switch with chargepump and current controlled input and monolithically integrated in Smart SIPMOStechnology. It provides embedded protection functions and clamp of negativevoltage at output with inductive loads.Current controlled inputShort-circuit protectionCurrent limitationOverload protectionOvervoltage protectionSwitching inductive loadsThermal shutdown with restartLoss of GND and loss of VBB protectionVery low standby currentReverse battery protectionImproved electromagnetic compatibilityApplicationsIndustrial, AutomotiveProduct InformationPower Load Switch Type: High SideInput Voltage: 60VCurrent Limit: 700mAOn State Resistance: 1ohmDistribution Switch Case Style: SOT-223No. of Pins: 4PinsThermal Protection: YesNo. of Outputs: 1OutputsOperating Temperature Min: -30°COperating Temperature Max: 85°C
