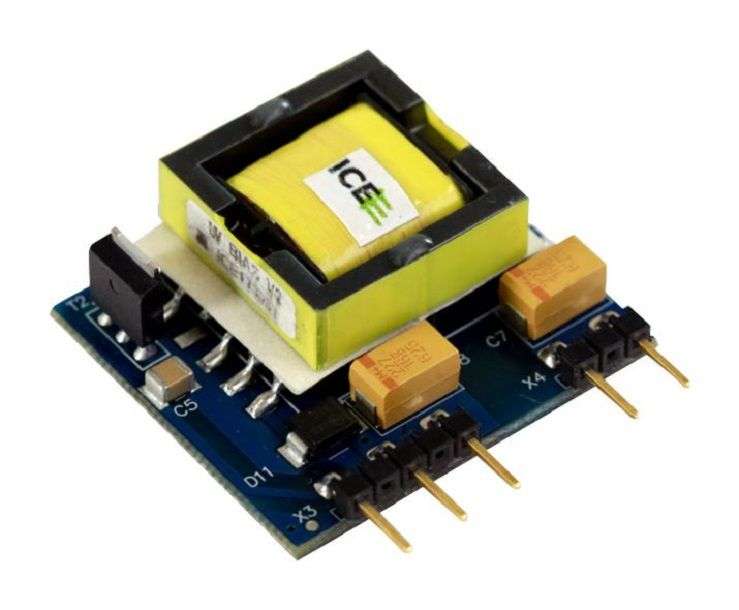

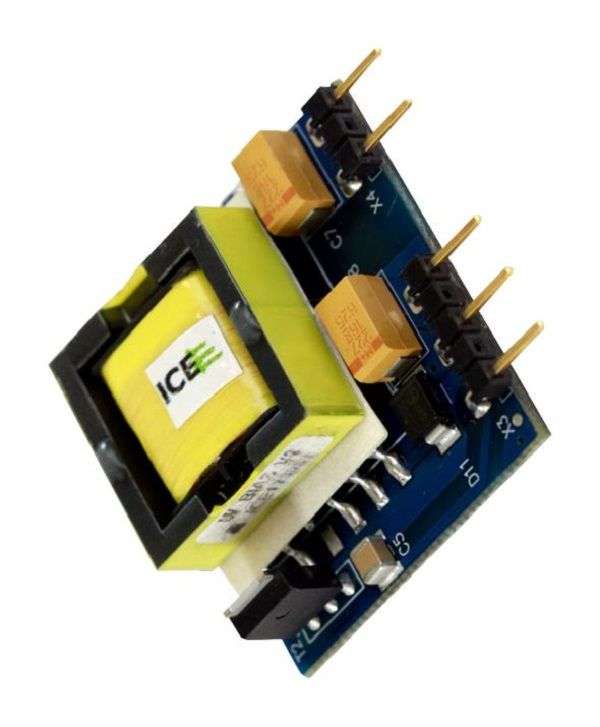

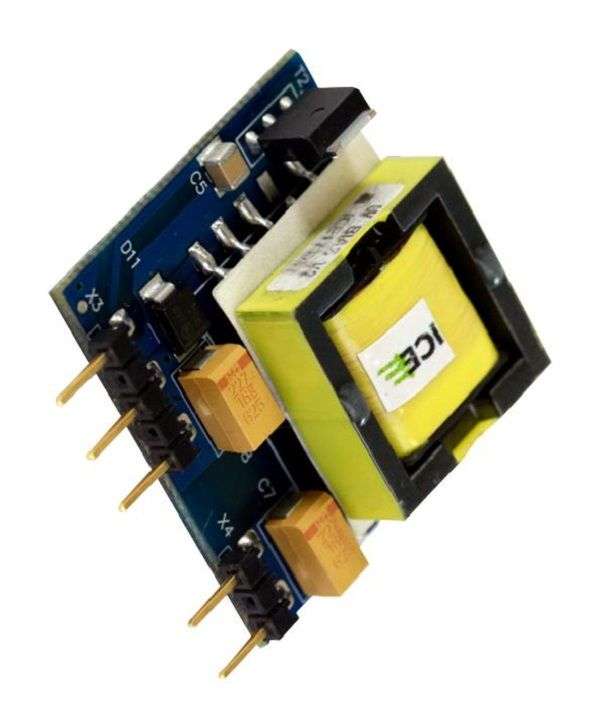

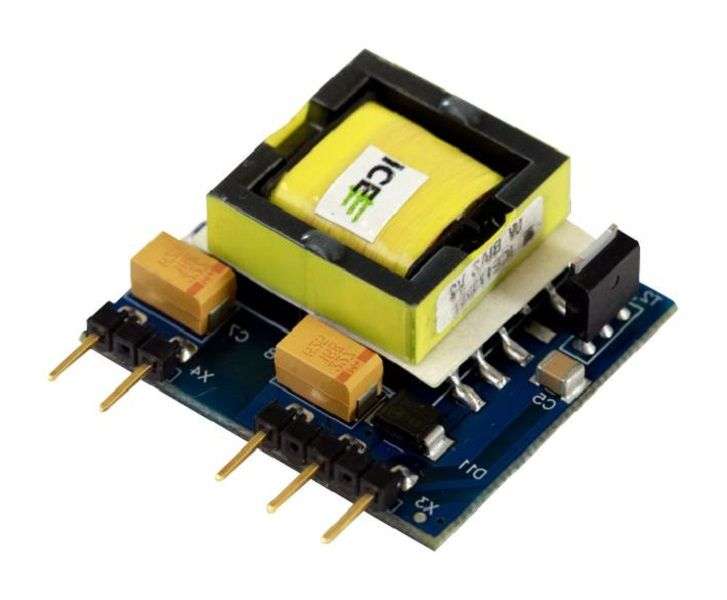

Infineon (KIT6W12VP7950VTOBO1) Evaluation Board, 6W, 12V

Evaluation Board, CoolMOS P7 950V MOSFETs, ICE5, DC/DC Applications, 6W, 12VProduct Overview6W bias board is designed to run in a system where it is continuously poweredfrom the 400VDC output of a boost power factor correction (PFC) converter andprovides power to the fan, gate drivers and controller. This board uses theICE5QSAG quasi-resonant (QR) fly back controller and the new 950V CoolMOS P7(IPU95R3K7P7). Target application is server and telecom.Quasi-resonant fly back using a Infineon's second generation controllerSnubberless operation to improve efficiency950V breakdown voltage allows operating off of higher input voltagesPrimary side regulated 12V and a secondary side unregulated 12V outputHigh efficiency and low cost solutionReduced PCB hotspot due to elimination of the snubber networkProduct InformationAccessory Type: Bias Supply DC-DC BoardFor Use With: Infineon EVAL800WZVSFBCFD7, EVAL2KWZVSFBCFD2, EVAL2KWZVSFBCFD7,EVAL2.5KWCCM_4PIN BrdsProduct Range: -
