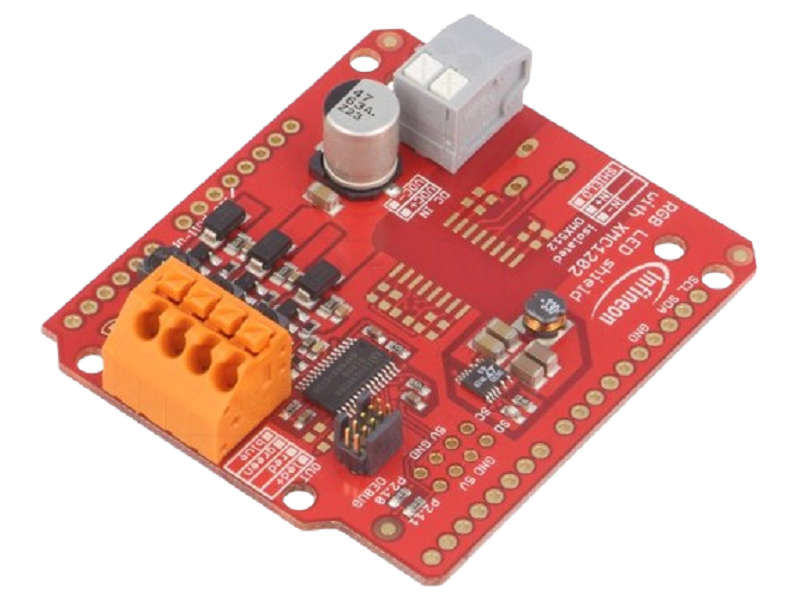

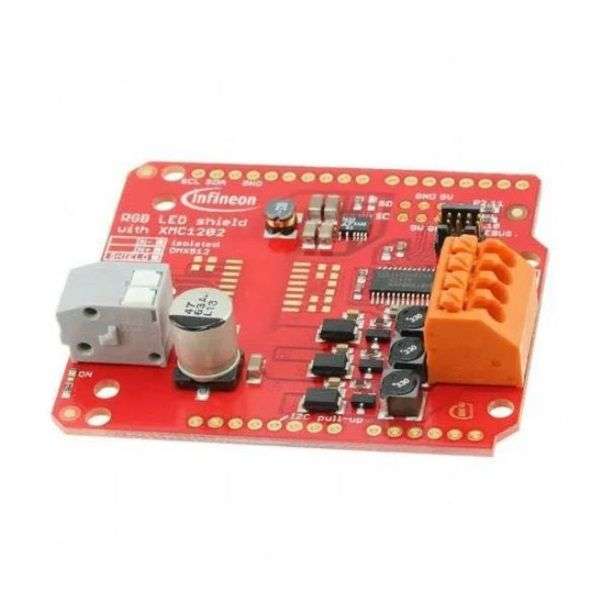

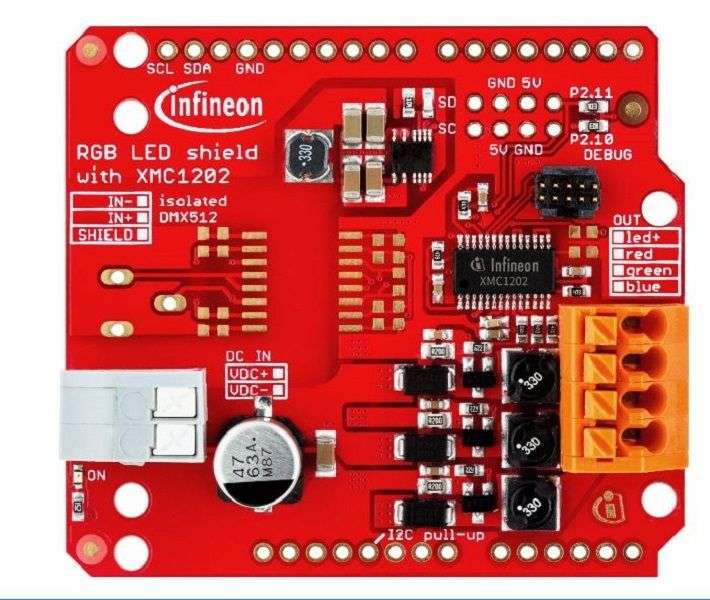

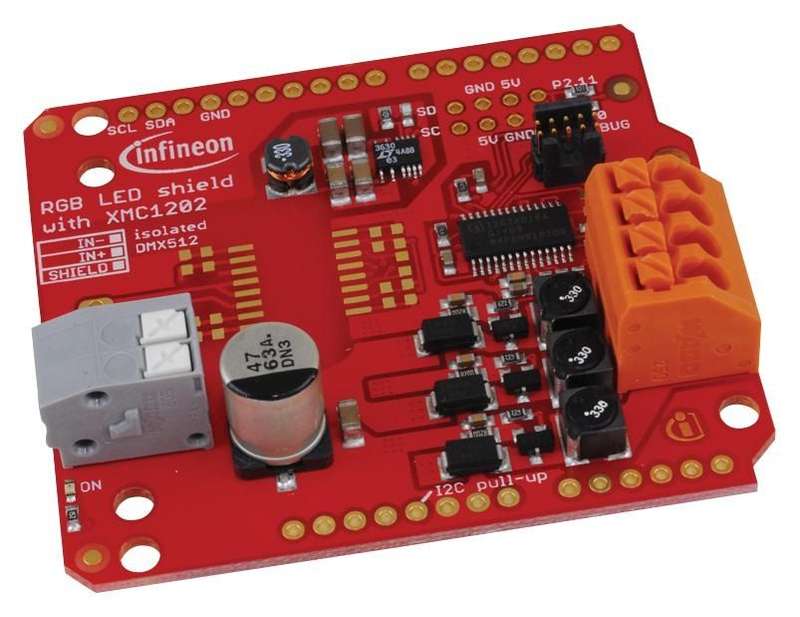

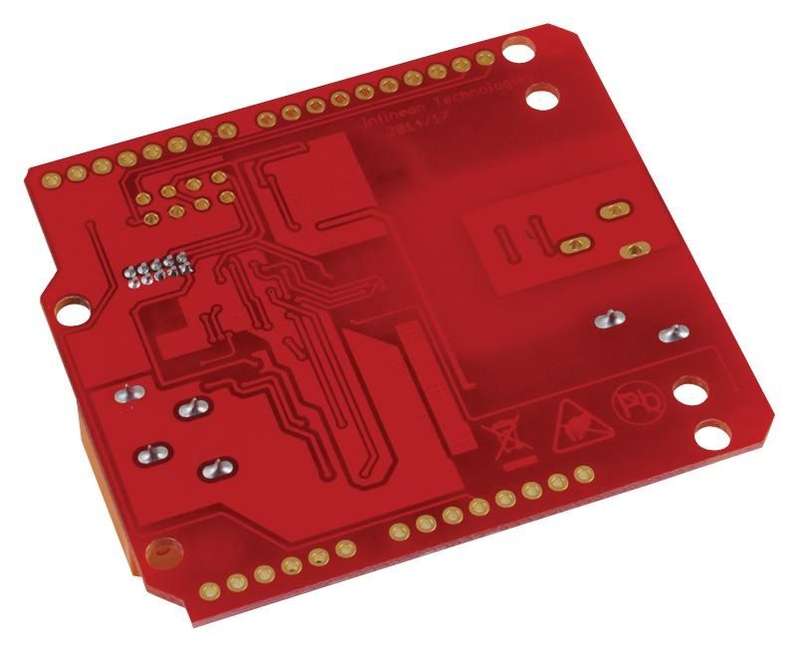

Infineon (KITLEDXMC1202AS01TOBO1) Evaluation Board, RGB LED Lighting Shield

The RGB LED Lighting Shield from Infineon Technologies is one of the firstintelligent evaluation boards compatible to both Arduino and Infineon's XMC1100BOOT KIT. The Lighting shield allows the adoption of different LED light enginesto ensure fast prototyping and to make inexpensive evaluation easy. The RGB LEDLighting Shield offers 3 independent output channels for flicker-free control ofmulticolor LED light engines. The shield itself is controlled by a programmableXMC 32-bit ARM powered MCU with embedded Brightness Color Control Unit (BCCU,XMC1200 MCU series). The BCCU hardware engine provides an extremely low-cost butvery high-quality LED lighting solution. This automated and easy to configurehardware engine ensures smooth, eye-friendly dimming and color mixing fordifferent topologies in an expandable design (with DALI/DMX or Radar forexample).Specifications:- Compatible with Arduino Uno R3 and XMC1100 Boot Kit from Infineon- Fully configurable for different light engines- Can be easily adapted/programmed to various light engines and any inputvoltage- Wide DC input voltage range- Simple I C interface- Silicon Manufacturer: Infineon- Core Architecture: ARM- Core Sub-Architecture: Cortex-M0- Silicon Core Number: XMC1202- Silicon Family Name: XMC1200- For Use With: Arduino Uno R3 Infineon XMC1100 Boot Kit- Kit Contents: Evaluation Board XMC1202
